SRSCM (SRS Control Module): Removal

  1. Disconnect the negative (-) cable from battery and wait for at least three minutes.

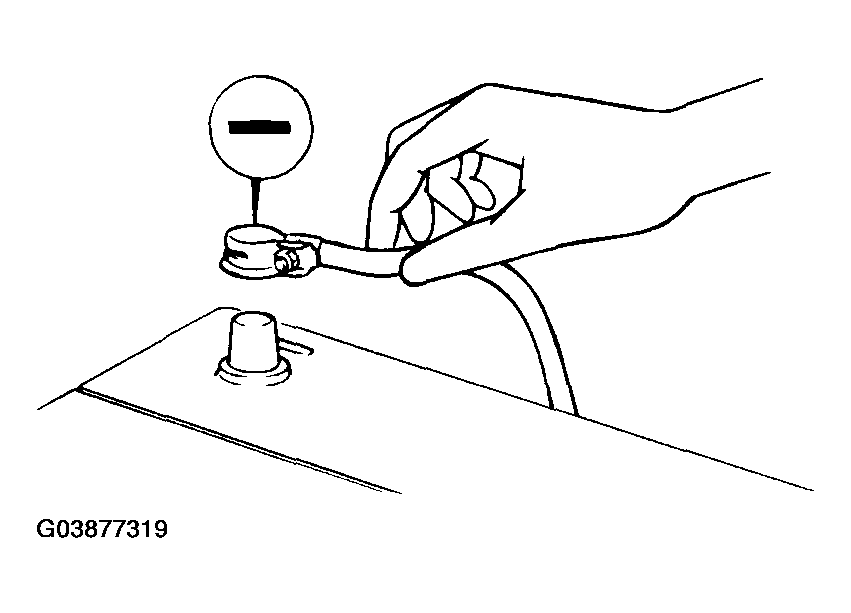

    Fig 1: Disconnecting Negative (-) Cable From Battery
    G03877319Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove ignition key from the vehicle.
  3. Disconnect the DAB, PAB, SAB, CAB and BPT connectors
  4. Remove the center console.
  5. Disconnect the SRSCM harness connector from the SRSCM.
  6. Remove the SRSCM mounting bolts from the SRSCM and pull out the SRSCM from the bracket.
