Shift Lever: Components

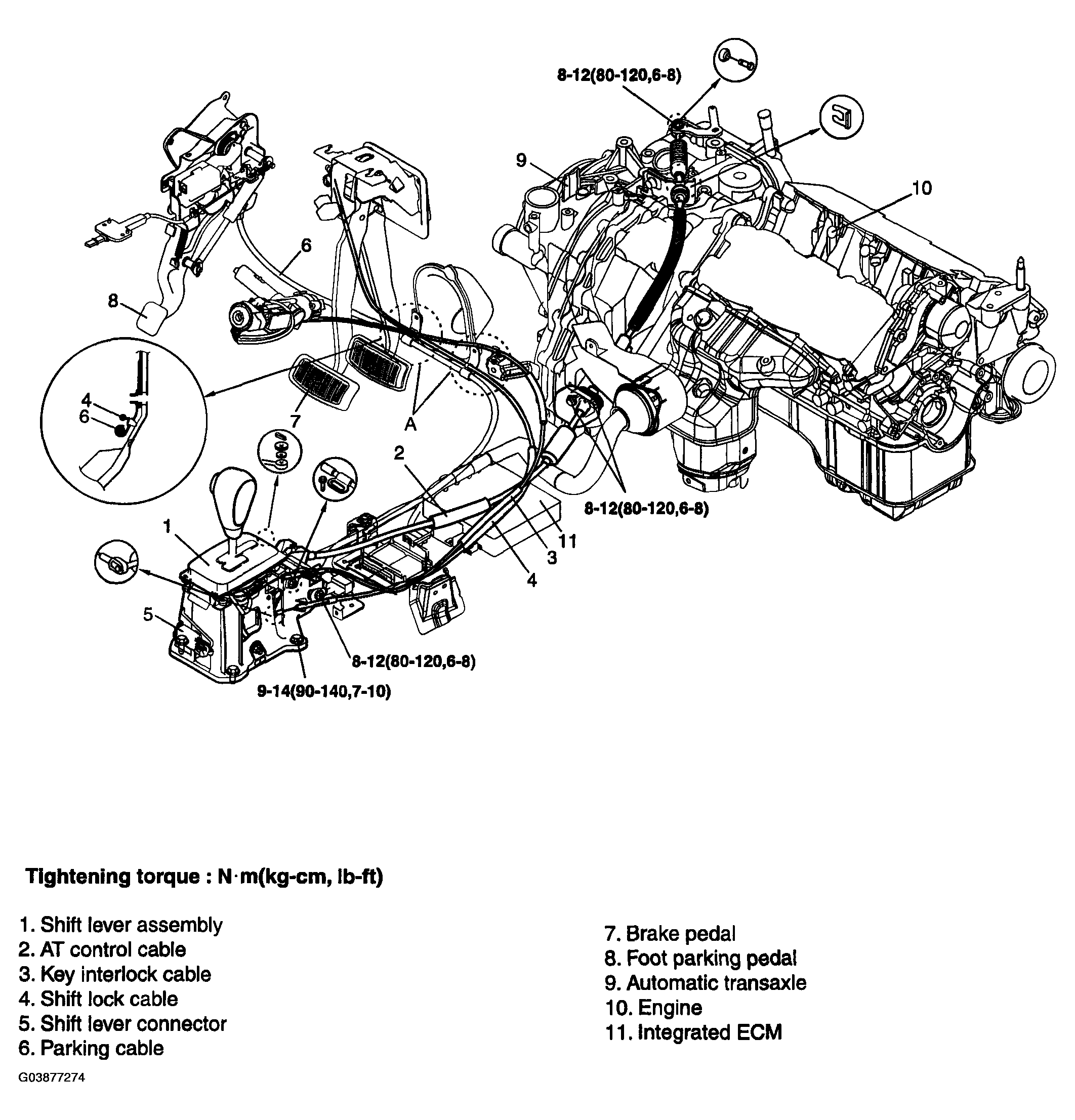

Fig 1: Identifying Shift Lever Components (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

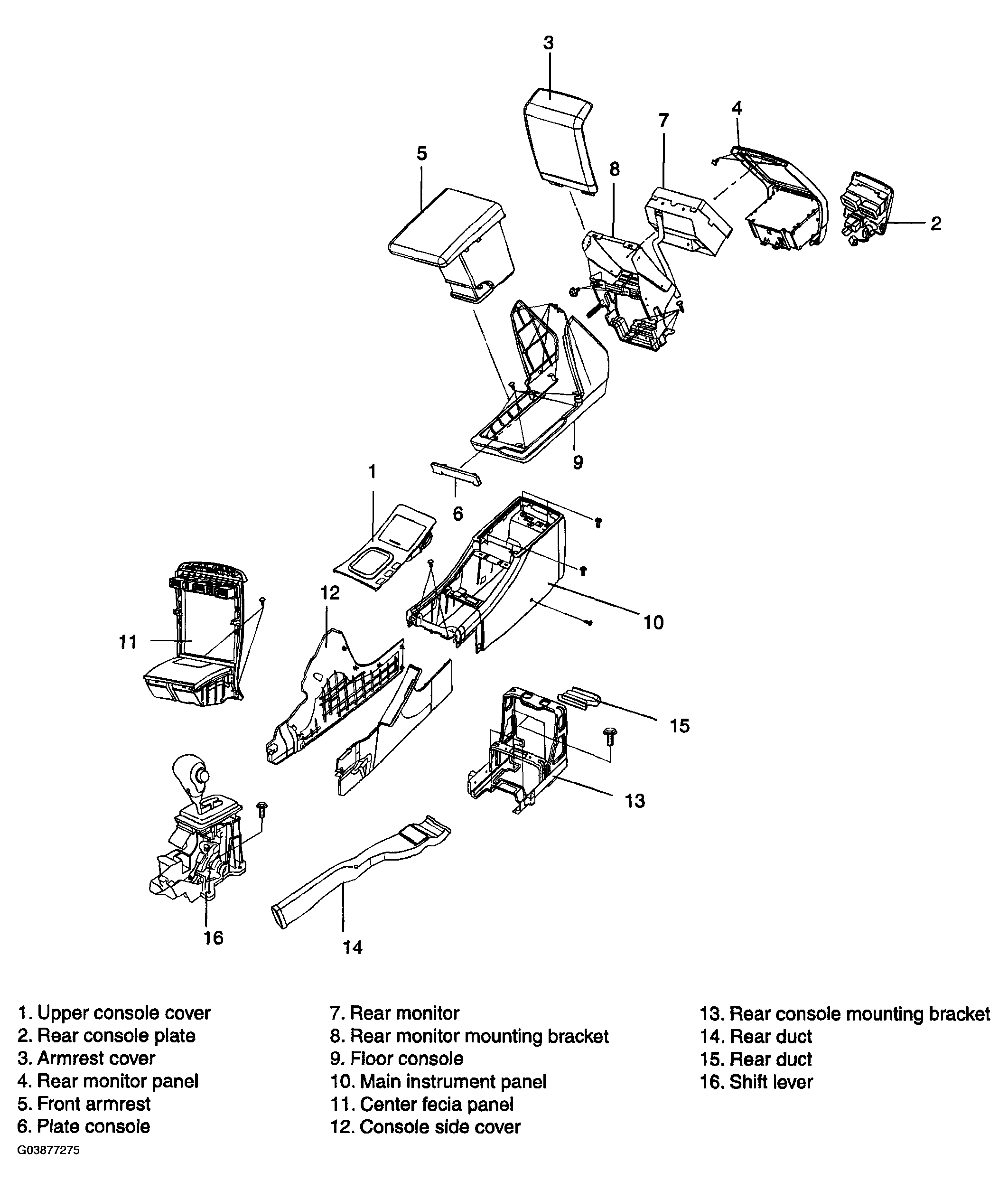

Fig 2: Identifying Shift Lever Components (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

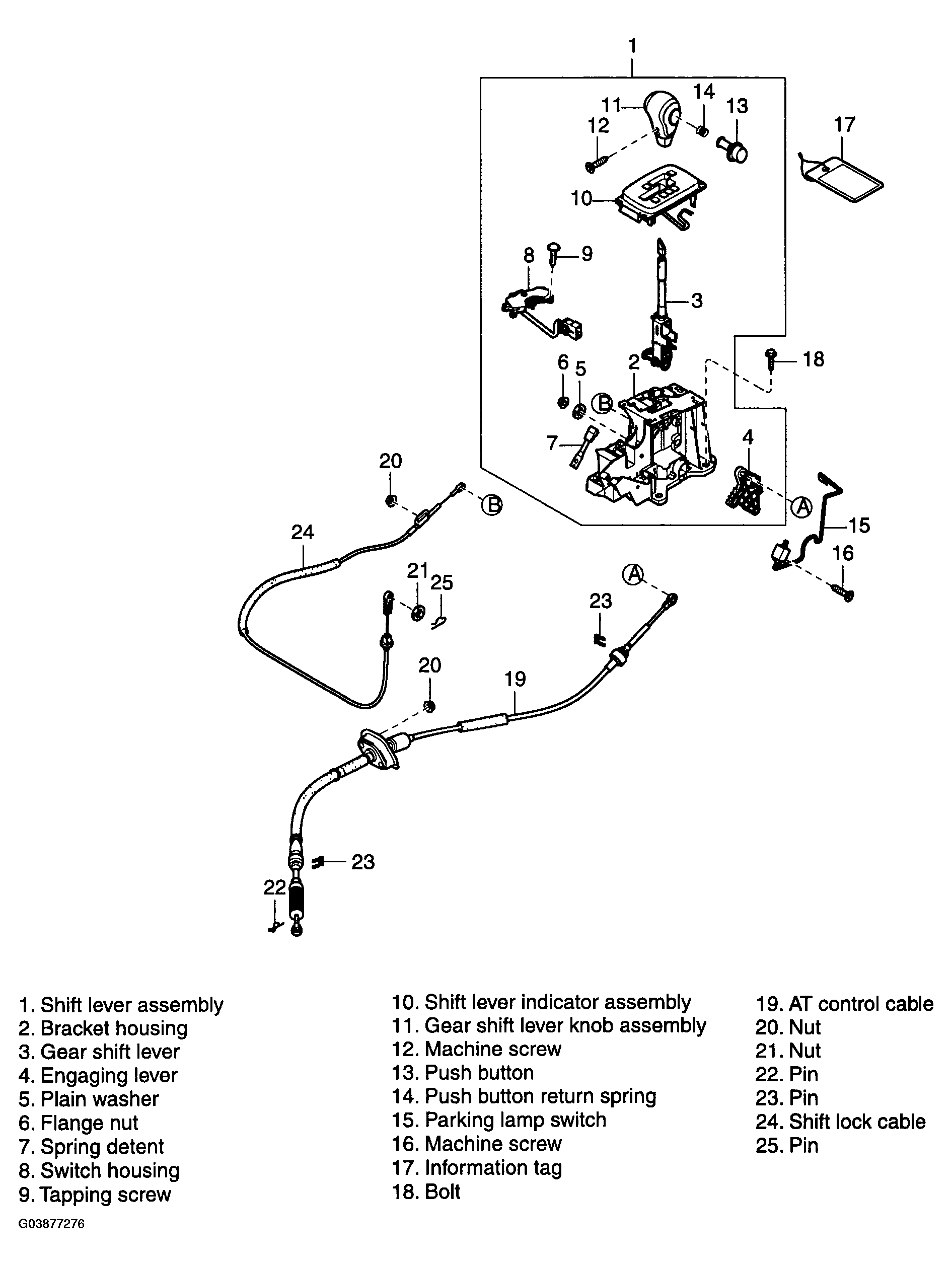

Fig 3: Identifying Shift Lever Components (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
