Shift Lever: Installation

Install the select lever assembly with a tightening torque.
Tightening torque:

9 - 14 N.m (90 - 140 kg-cm, 7 - 10 lb-ft)

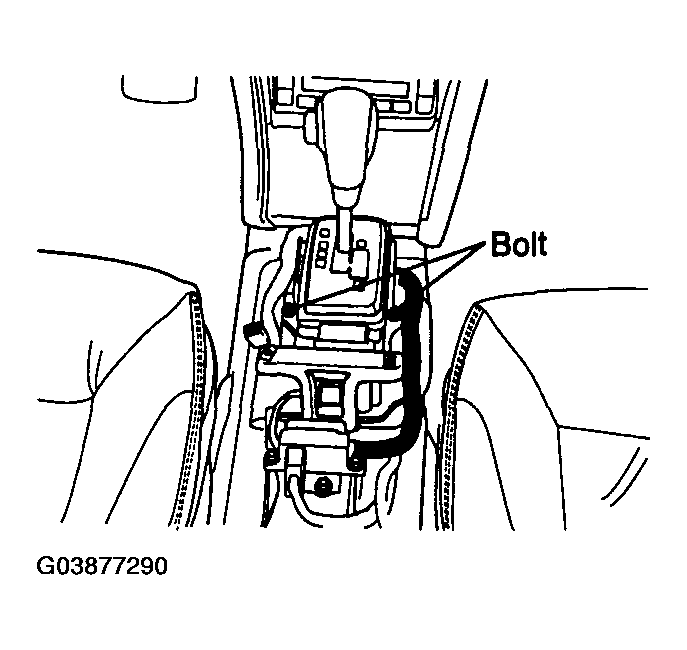

Fig 1: Installing Select Lever Assembly With A Tightening Torque
Courtesy of KIA MOTORS AMERICA, INC.
Install the shift lock cable.
Tightening torque:

8 - 12 N.m (80 - 120 kg-cm, 6 - 8 lb-ft)

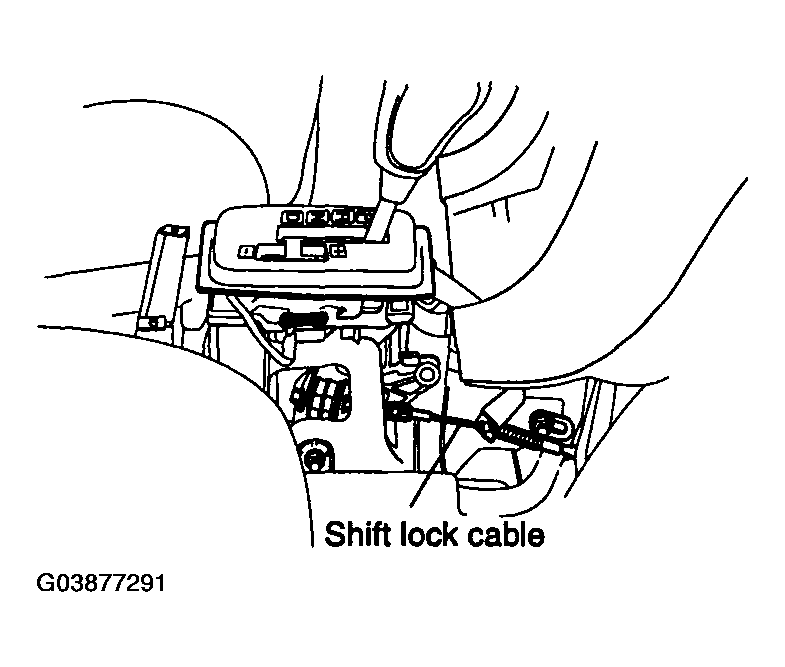

Fig 2: Installing Shift Lock Cable
Courtesy of KIA MOTORS AMERICA, INC.
Install the shift control cable.

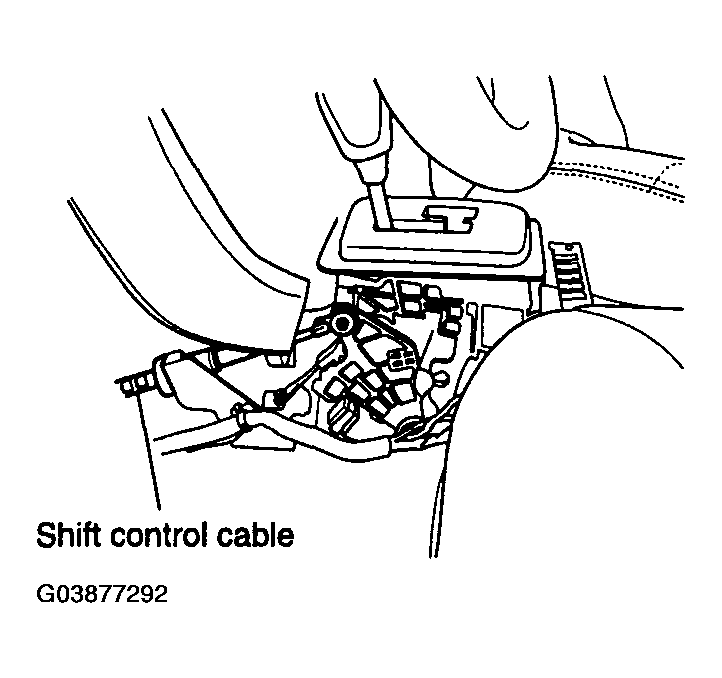

Fig 3: Installing Shift Control Cable
Courtesy of KIA MOTORS AMERICA, INC.
Install the harness connector.
After installing the shift lock cable move the select lever to "P" position, check that the shift lock cable operates with brake pedal depressed.
