Checking Sport Mode Selection Switch: Check

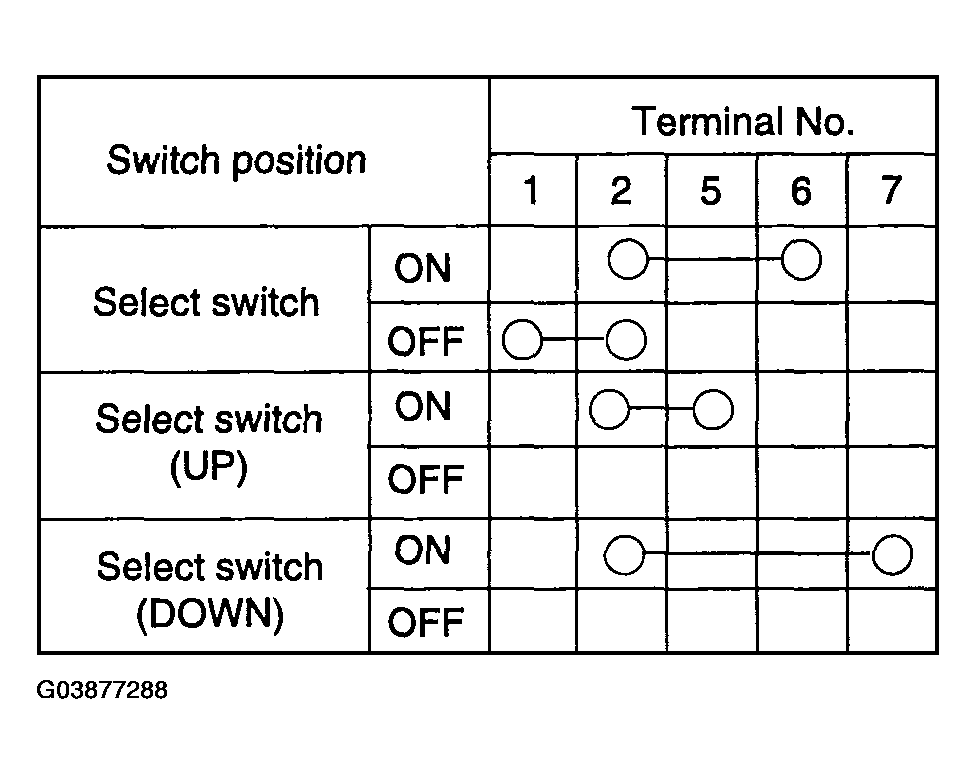

Fig 1: Terminals Continuity Chart
G03877288Courtesy of KIA MOTORS AMERICA, INC.

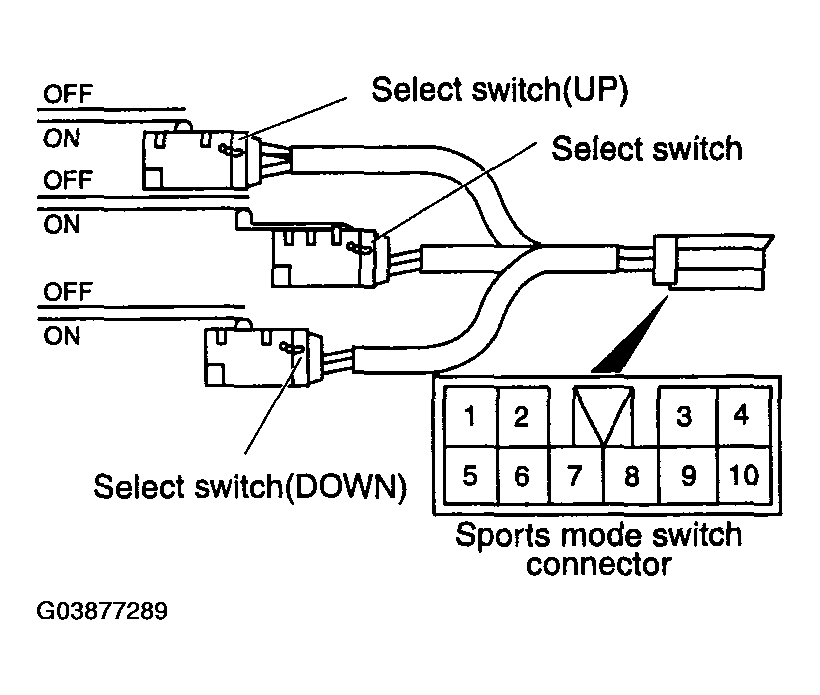

Fig 2: Identifying Sport Mode Switch Connector Terminals
G03877289Courtesy of KIA MOTORS AMERICA, INC.
