Shift Lever: Removal

Remove the console upper cover plate.

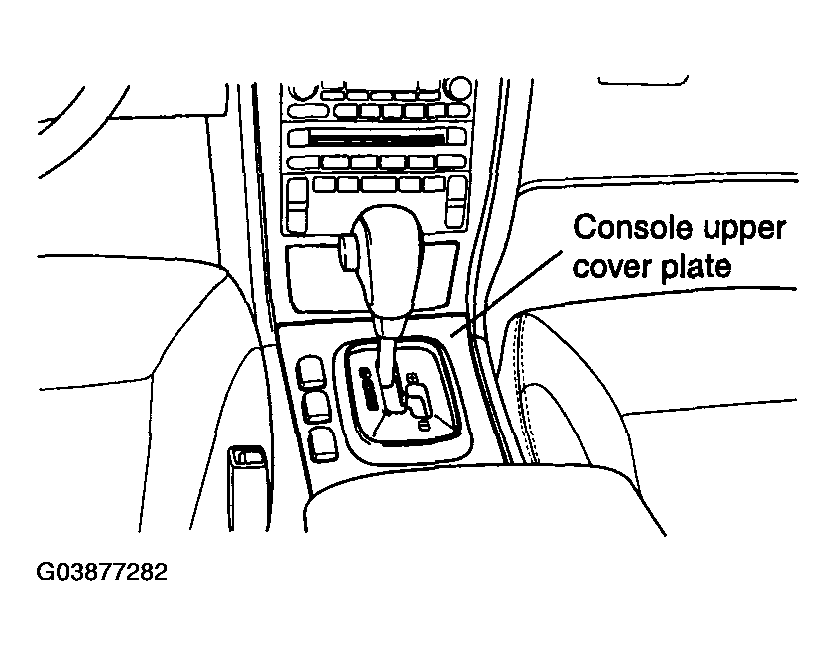

Fig 1: Removing Console Upper Cover Plate
Courtesy of KIA MOTORS AMERICA, INC.
Remove the floor console and armrest panel.

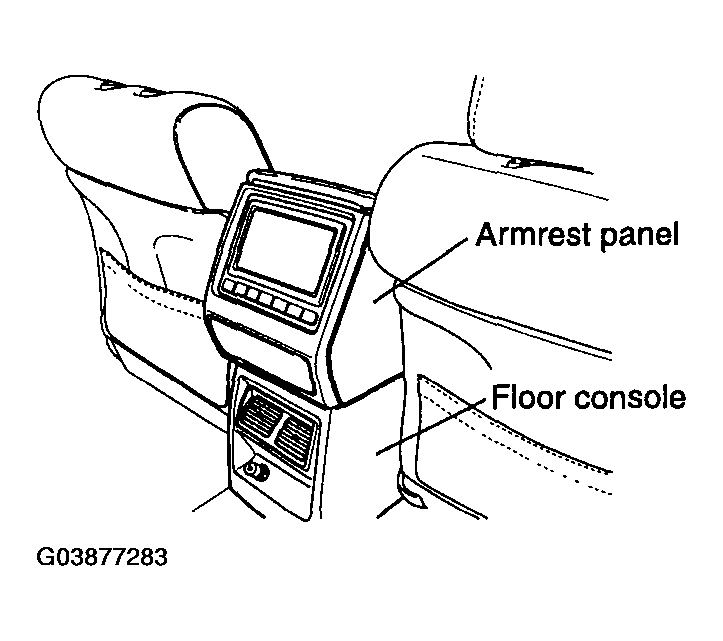

Fig 2: Removing Floor Console And Armrest Panel
Courtesy of KIA MOTORS AMERICA, INC.
Remove the center console cover and console side cover.
Remove the shift control cable.

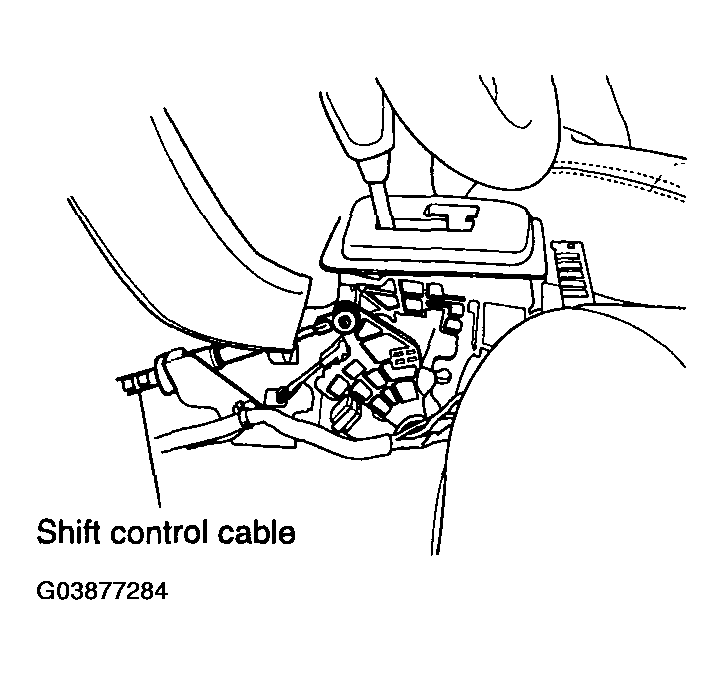

Fig 3: Removing Shift Control Cable
Courtesy of KIA MOTORS AMERICA, INC.
Remove the shift lock cable.

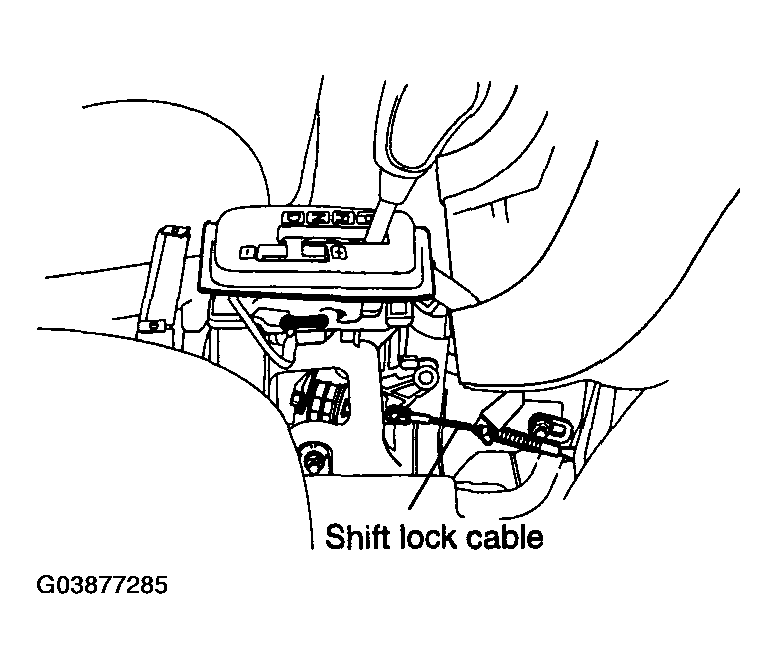

Fig 4: Removing Shift Lock Cable
Courtesy of KIA MOTORS AMERICA, INC.
Remove the harness connector.
Remove the select lever assembly.

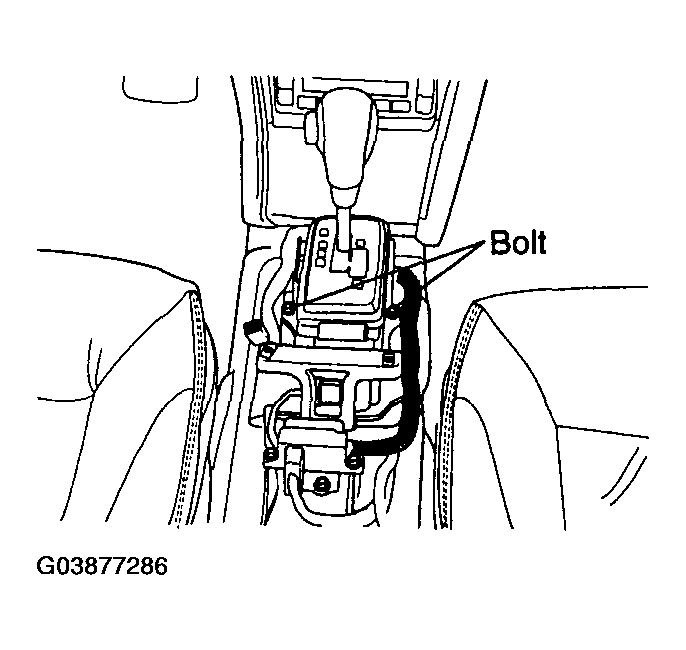

Fig 5: Removing Select Lever Assembly
Courtesy of KIA MOTORS AMERICA, INC.
