Fuel Line: Installation

  1. Install a new grommet and O-ring to the injector.
  2. Apply a coating of solvent, spindle oil or gasoline to the injector O-ring.

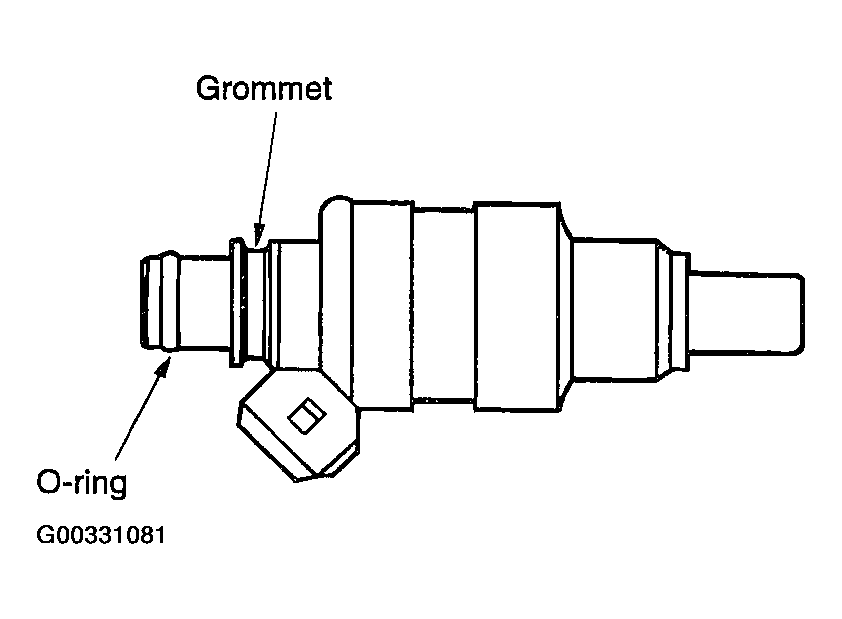

    Fig 1: Installing Injector O-Ring
    G00331081Courtesy of KIA MOTORS AMERICA, INC.
  3. While turning the injector to the left and right, install it on to the delivery pipe.
  4. Be sure the injector turns smoothly.
    NOTE: If injector does not turn smoothly, the O-ring may be jammed. Remove the injector and re-insert it into the delivery pipe and re-check.

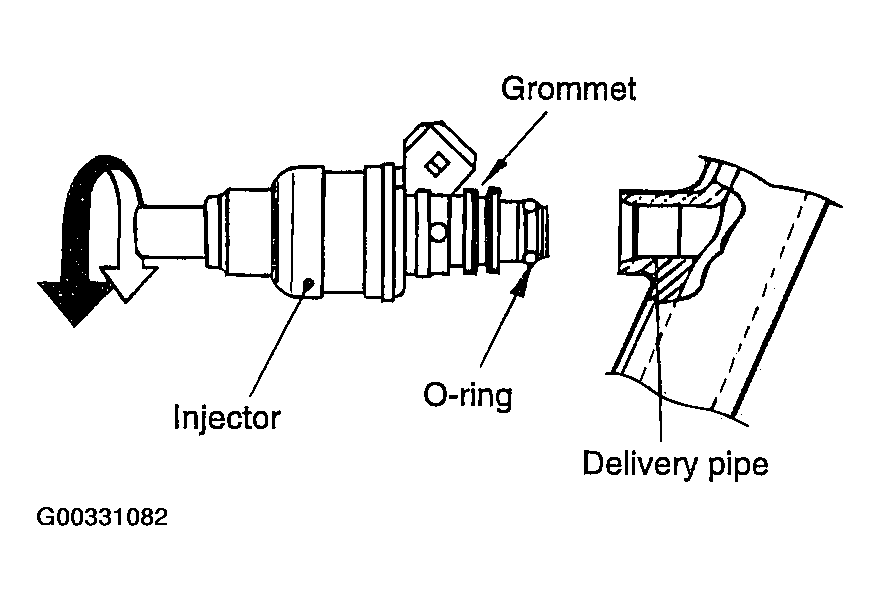

Fig 2: Installing Fuel Injector
G00331082Courtesy of KIA MOTORS AMERICA, INC.
