Fuel Tank: Components

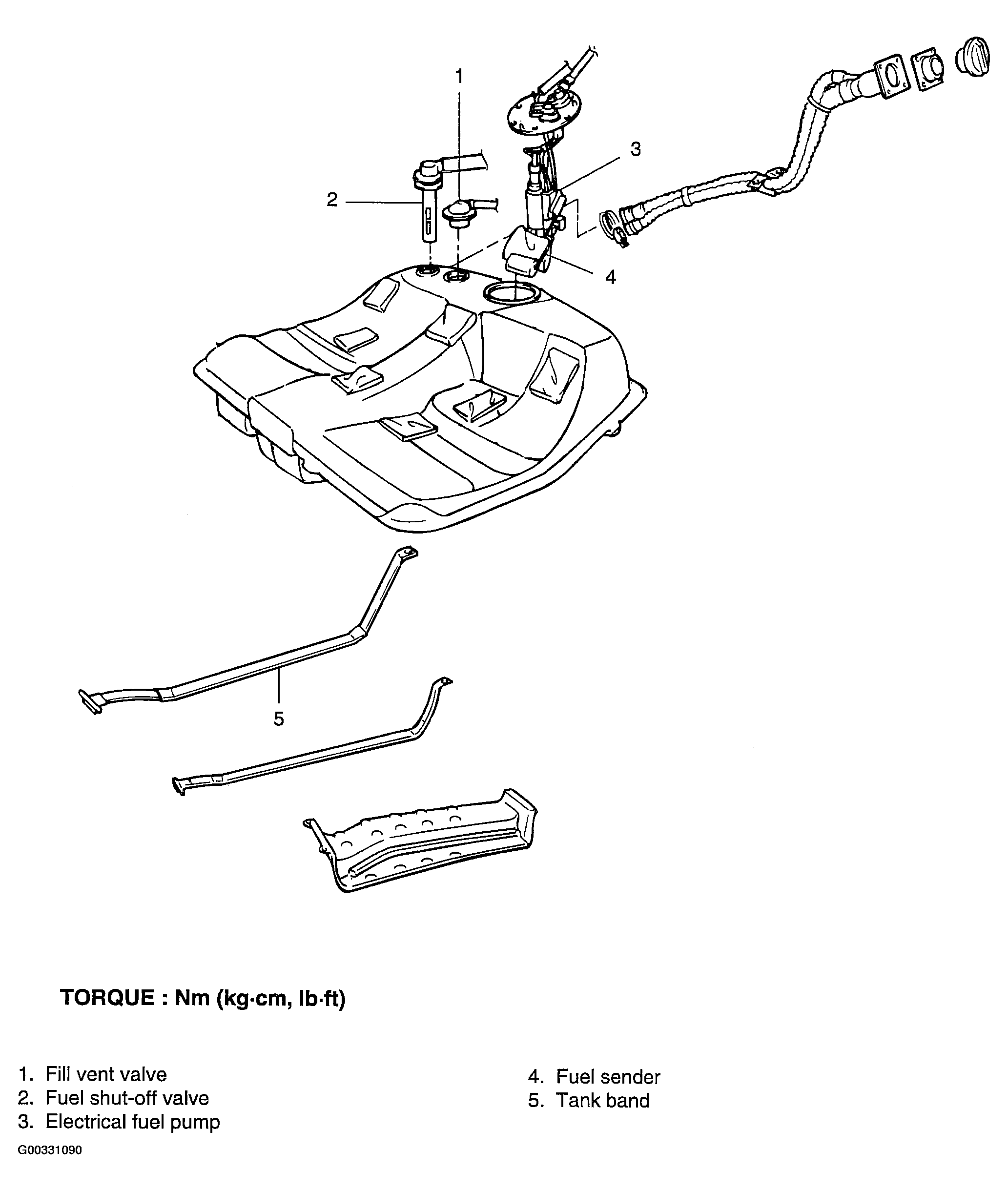

Fig 1: Removing & Installing Fuel Tank
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
