Symptom Diagnosis: Notes
NOTE:
The numbers in the columns in the following illustrations indicate the proper troubleshooting sequence to be followed.

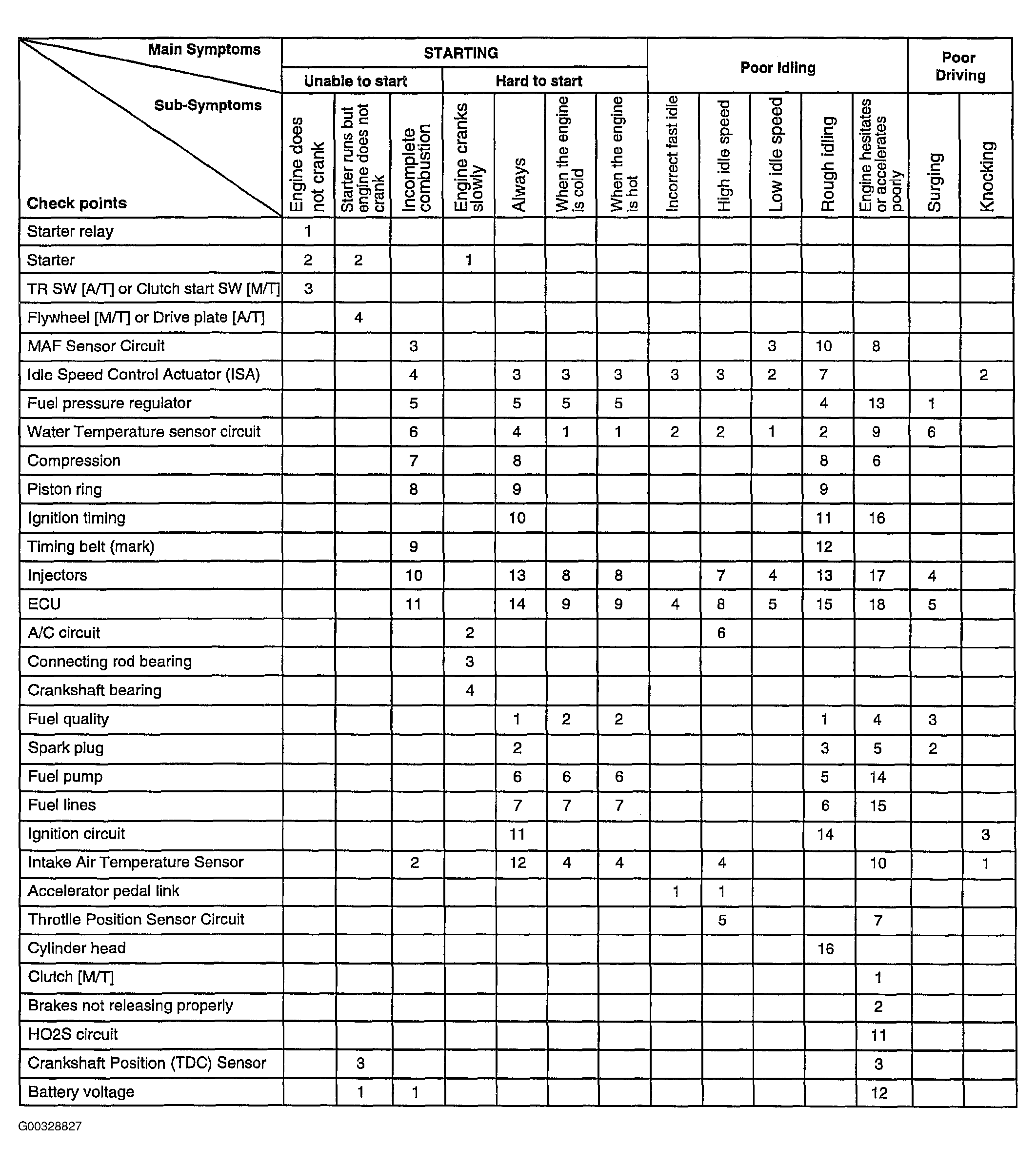

Fig 1: Identifying Symptom Diagnosis Chart (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

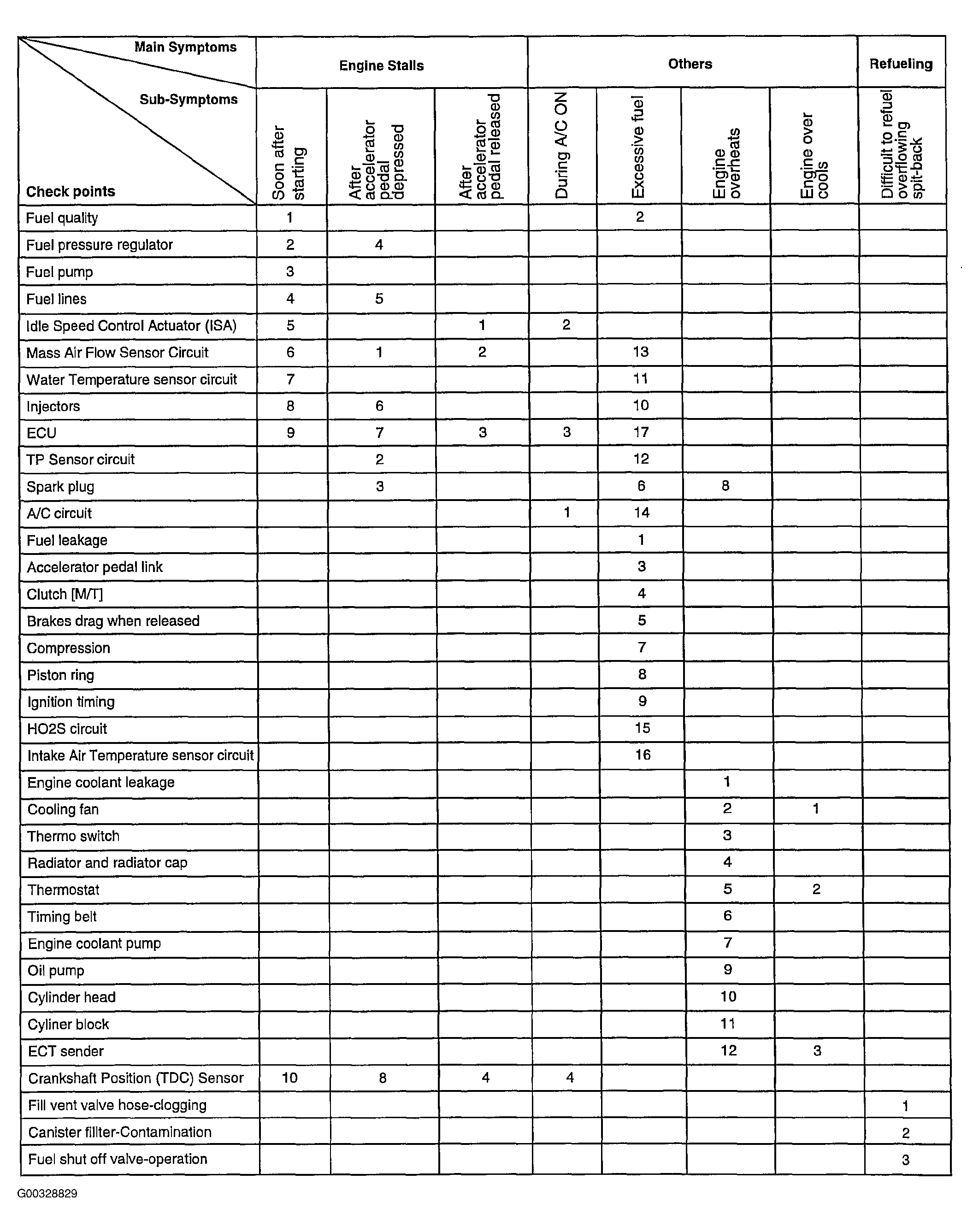

Fig 2: Identifying Symptom Diagnosis Chart (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
