Connector (C)

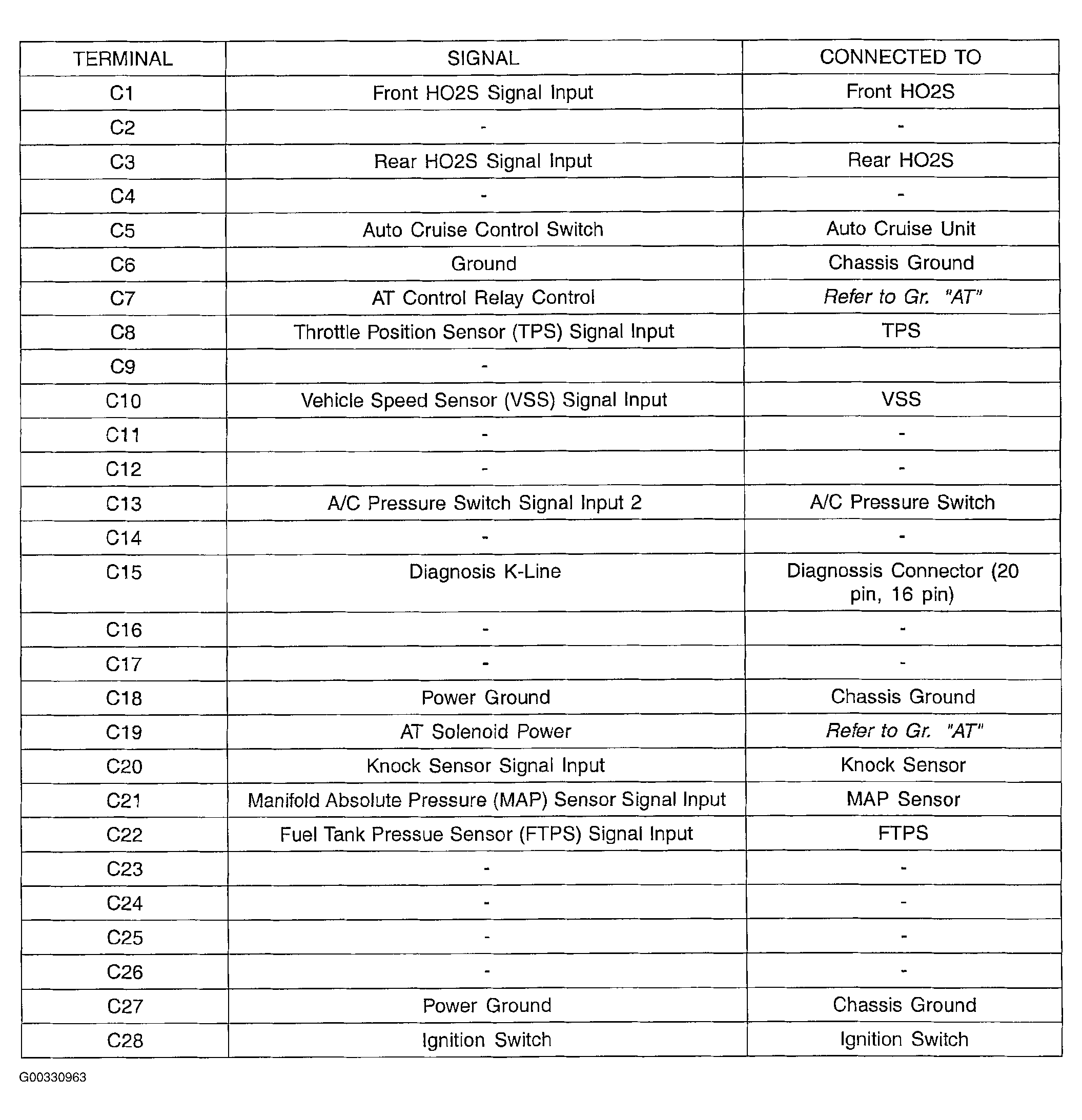

Fig 1: Identifying Terminal Layout Of Connector "C" - Vehicles With Transaxle Control Unit (TCU) (Vehicles With Automatic Transaxle)
G00330963Courtesy of KIA MOTORS AMERICA, INC.
