Fuel Injector: Inspection

  1. Measure the resistance of the injectors between the terminals using an ohmmeter.

    Resistance: 13.8-15.2 Ω (at 20°C (68°F))

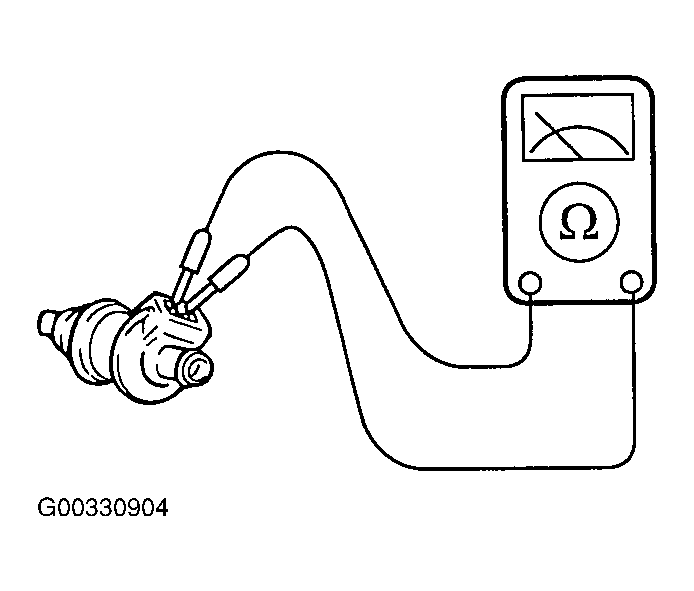

    Fig 1: Checking Fuel Injector
    G00330904Courtesy of KIA MOTORS AMERICA, INC.
  2. If the resistance is not within specifications, replace the injector.
