Harness Inspection Procedures (Knock Sensor)

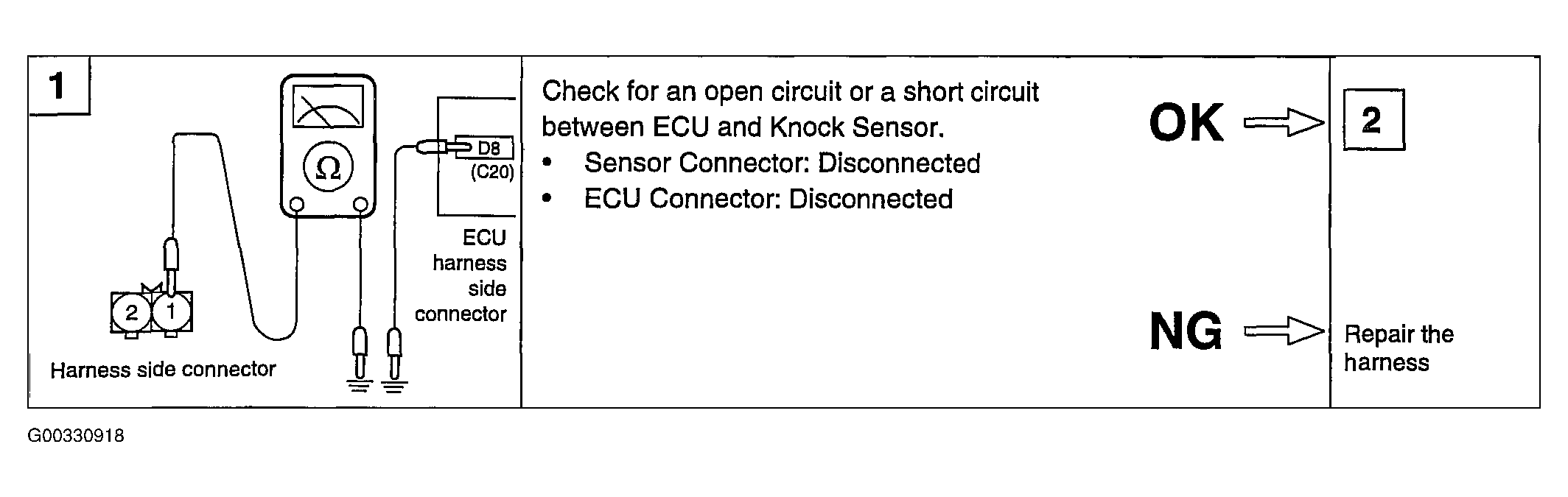

Fig 1: Identifying Knock Sensor Harness Inspection Procedures (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

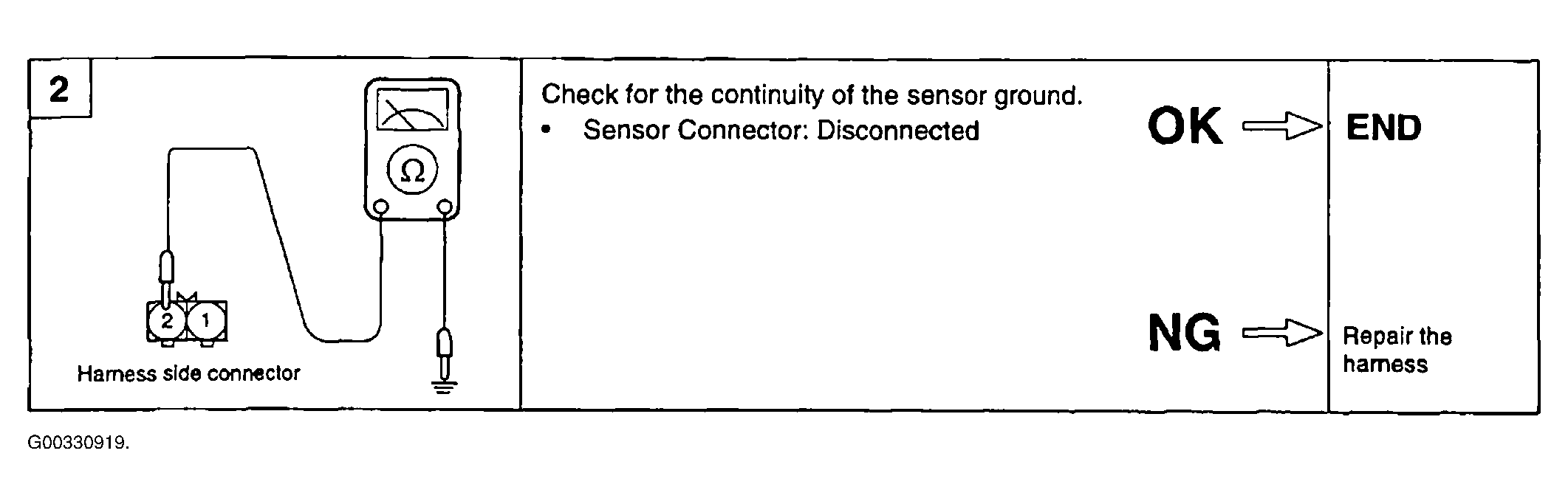

Fig 2: Identifying Knock Sensor Harness Inspection Procedures (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
