Power Steering Pressure (PSP) Switch: Notes

The power steering oil pressure switch senses the power steering load into low/high voltage and inputs it to ECU, which then controls the idle speed control motor based on this signal.

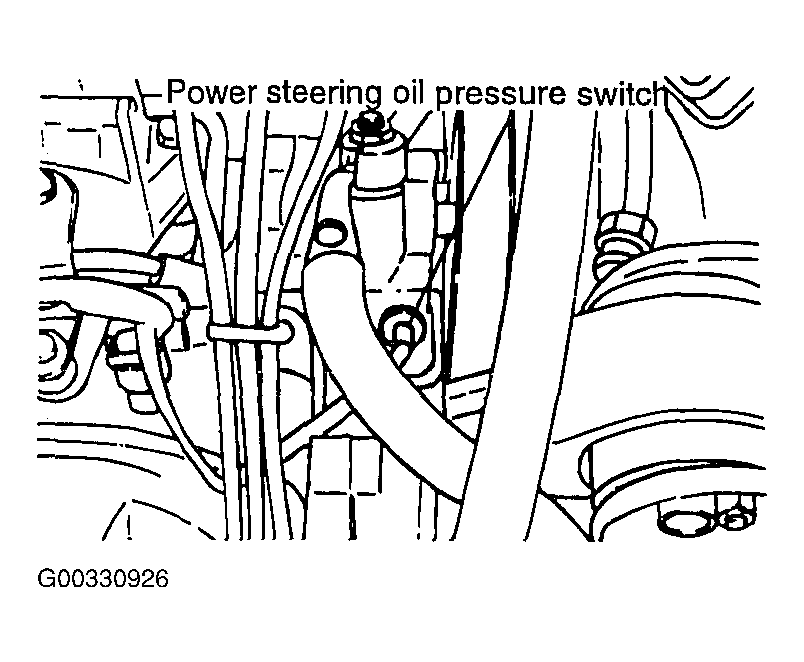

Fig 1: Locating Power Steering Pressure (PSP) Switch
G00330926Courtesy of KIA MOTORS AMERICA, INC.
