Using Hi-Scan

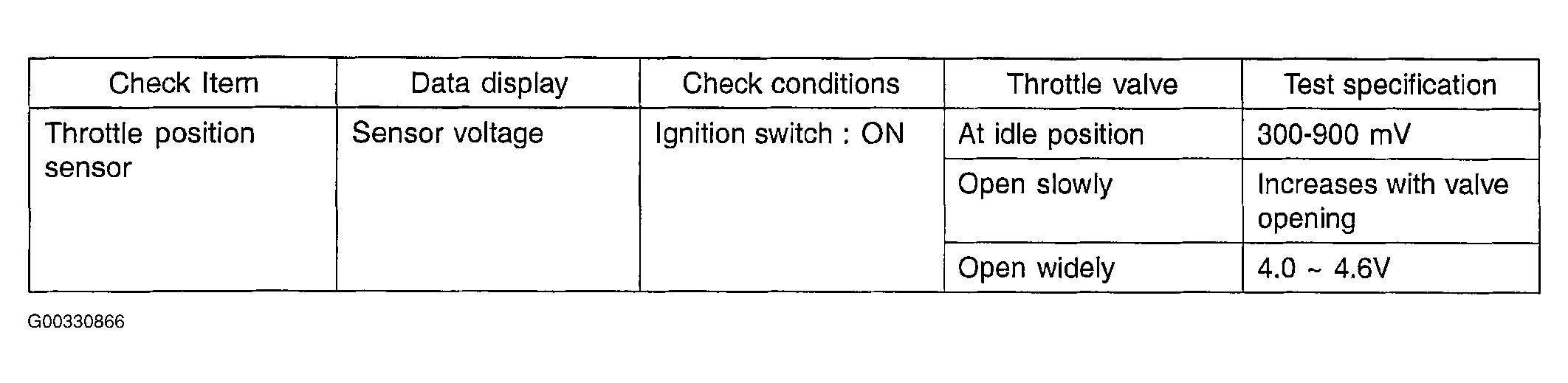

Fig 1: Checking Throttle Position Sensor (TPS) Using Hi-Scan
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
