Throttle Position Sensor (TPS): Notes

The TPS is a variable resistor type that rotates with the throttle body throttle shaft to sense the throttle valve angle. As the throttle shaft rotates, the output voltage of the TPS changes. The ECU detects the throttle valve opening based on voltage change.

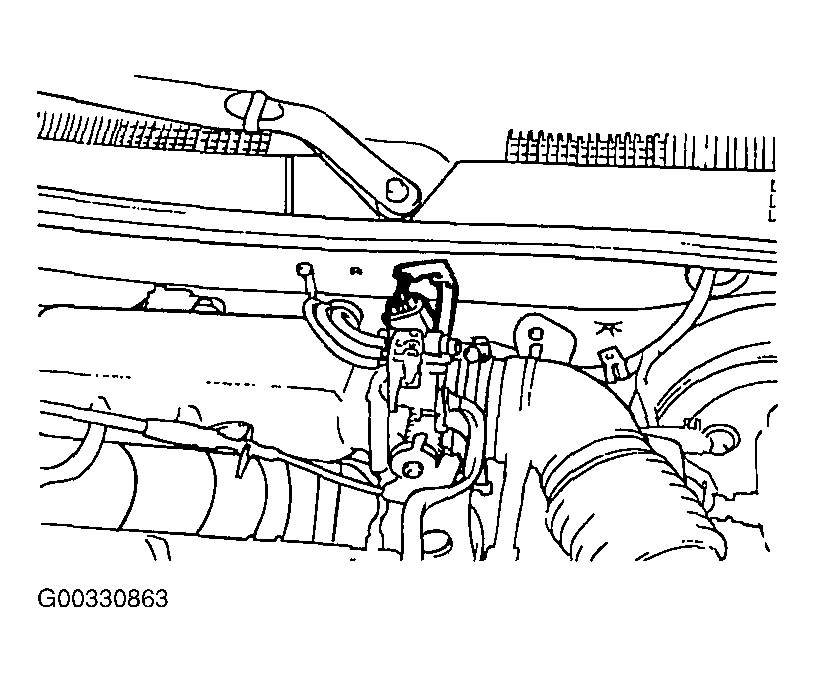

Fig 1: Locating Throttle Position Sensor (TPS)

Courtesy of KIA MOTORS AMERICA, INC.
