Using Multi-Meter

  1. Remove the Water Temperature Sensor (WTS).
  2. With the temperature sensing portion of Water Temperature Sensor (WTS) immersed in hot engine coolant, check the resistance.

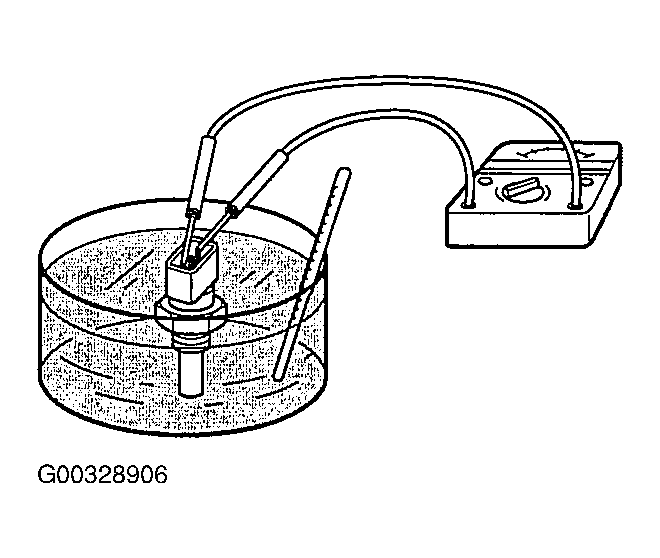

    Fig 1: Checking Water Temperature Sensor (WTS) Resistance (Using Multi-Meter) (1 Of 2)
    G00328906Courtesy of KIA MOTORS AMERICA, INC.

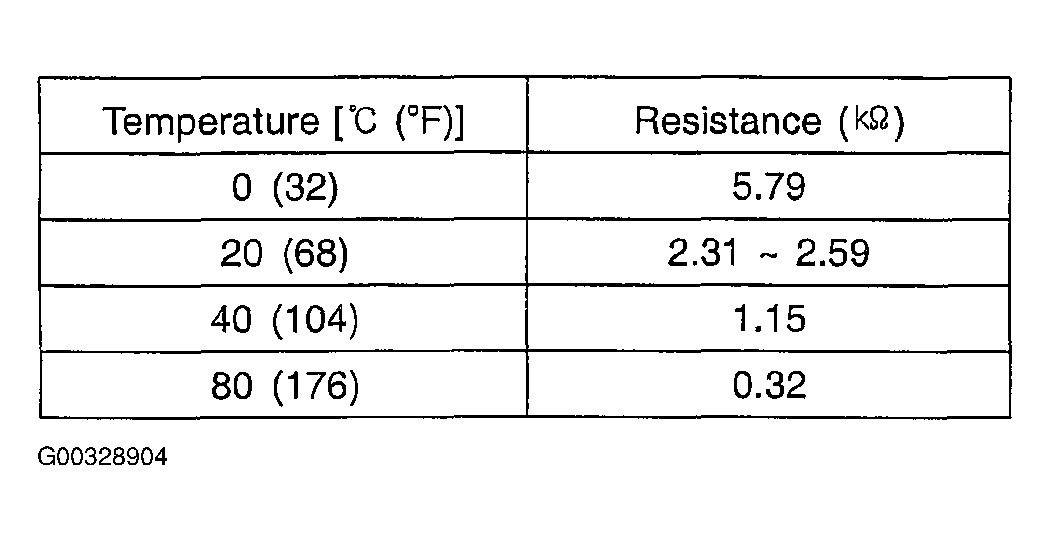

    Fig 2: Checking Water Temperature Sensor (WTS) Resistance (Using Multi-Meter) (2 Of 2)
    G00328904Courtesy of KIA MOTORS AMERICA, INC.
  3. If the resistance deviates from the standard value greatly, replace the sensor.
