Water Temperature Sensor (WTS)
>>
Inspection
>>
Using Volt-Meter
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Using Volt-Meter

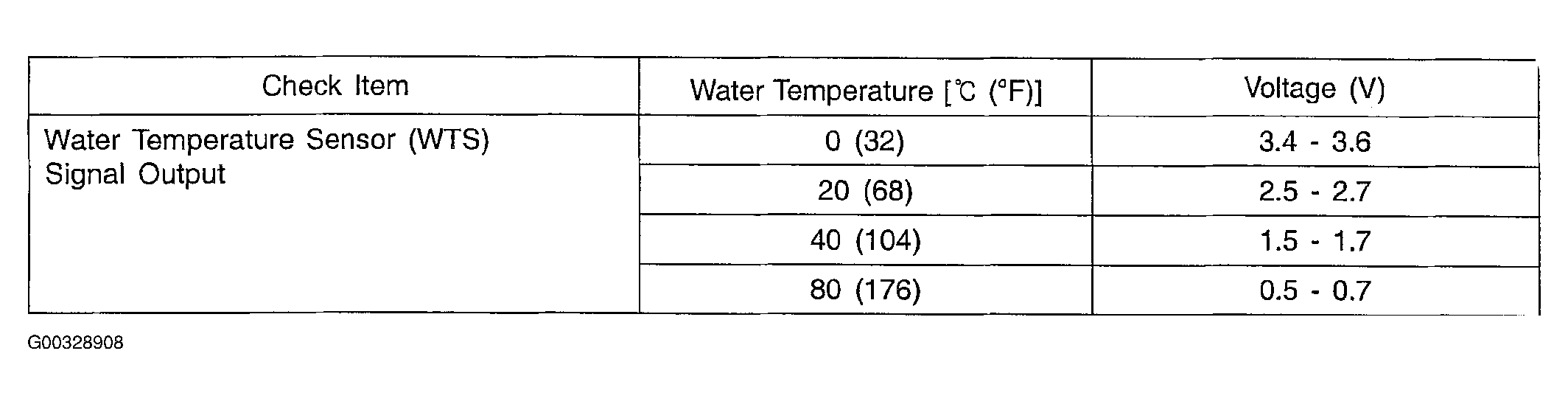

Fig 1: Checking Water Temperature Sensor (WTS) Signal Output (Using Volt-Meter)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
