2.4L 4 Cylinder

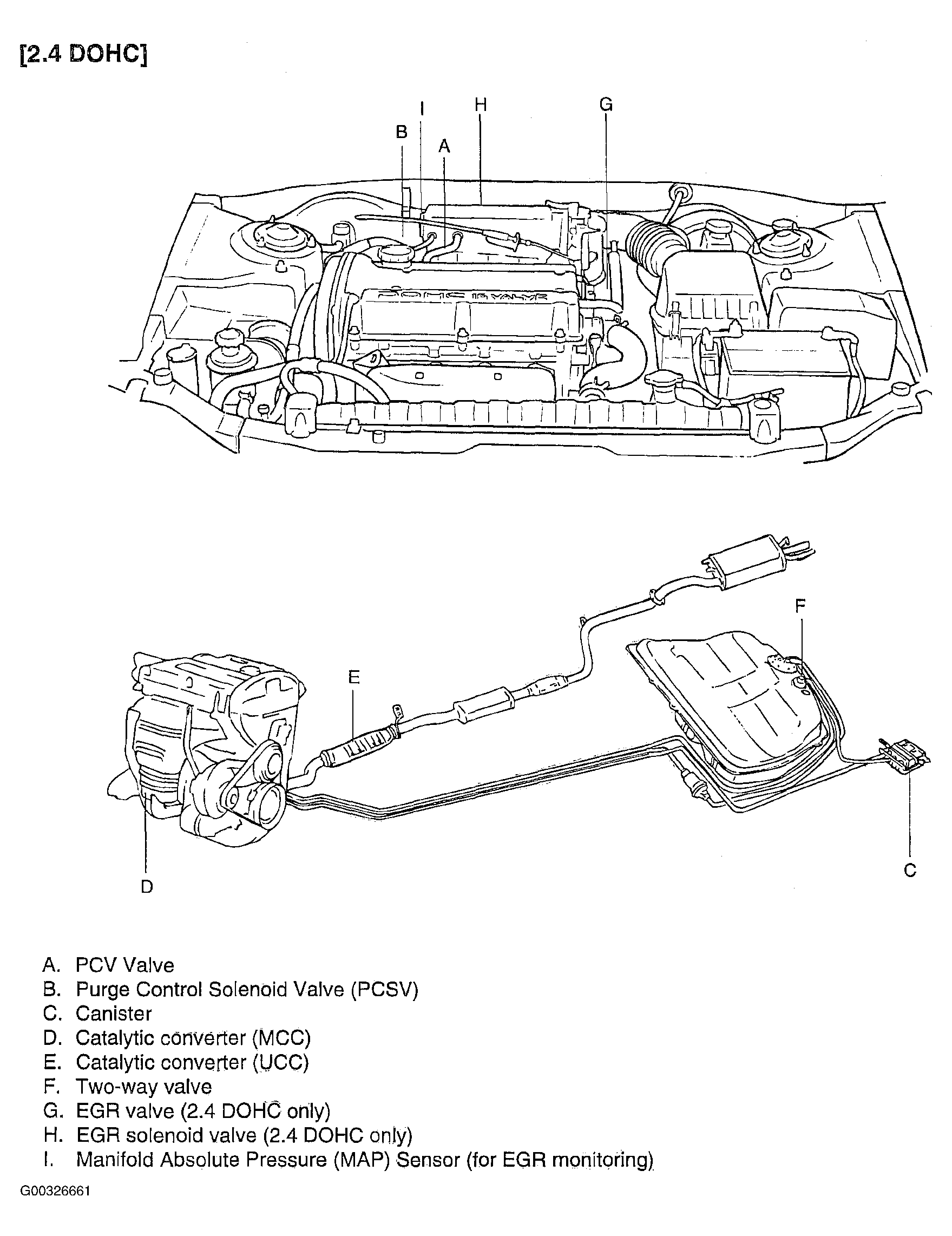

Fig 1: Locating Emission Control System Components

Courtesy of KIA MOTORS AMERICA, INC.

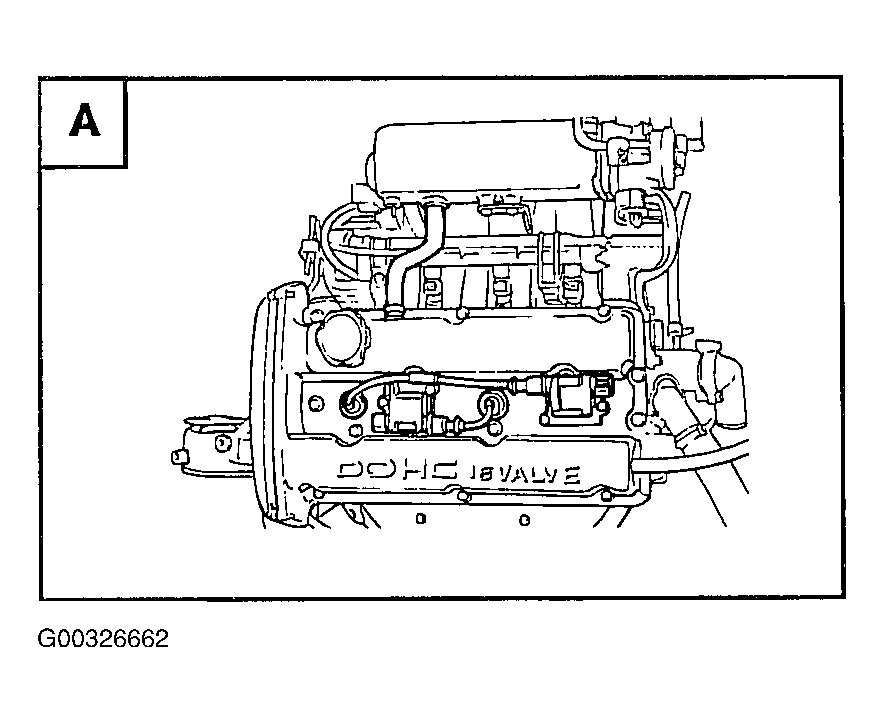

Fig 2: Locating Positive Crankcase Ventilation (PCV) Valve

Courtesy of KIA MOTORS AMERICA, INC.

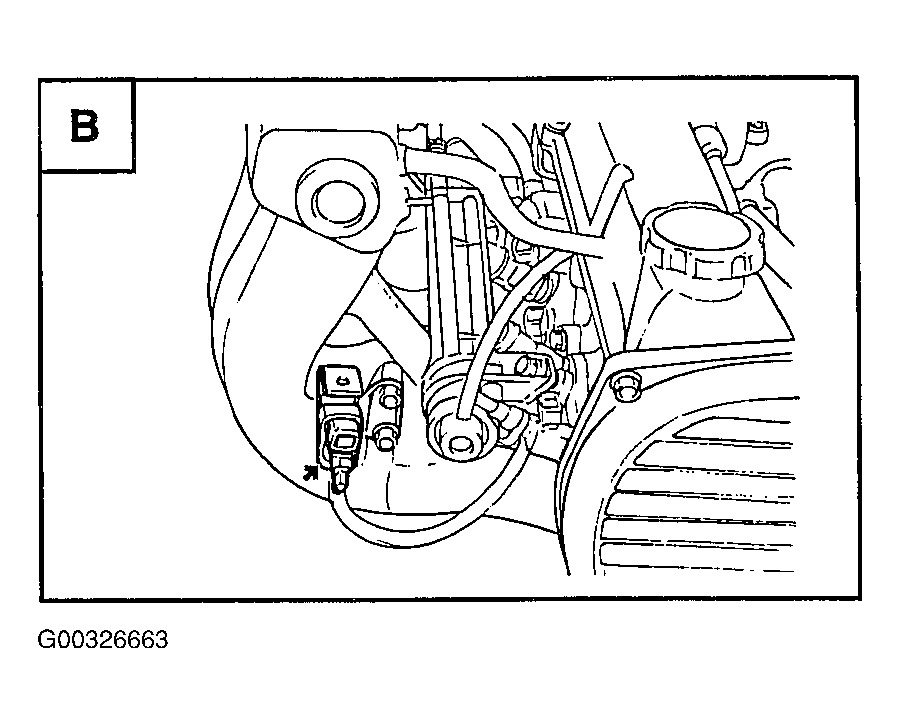

Fig 3: Locating Purge Control Solenoid Valve (PCSV)

Courtesy of KIA MOTORS AMERICA, INC.

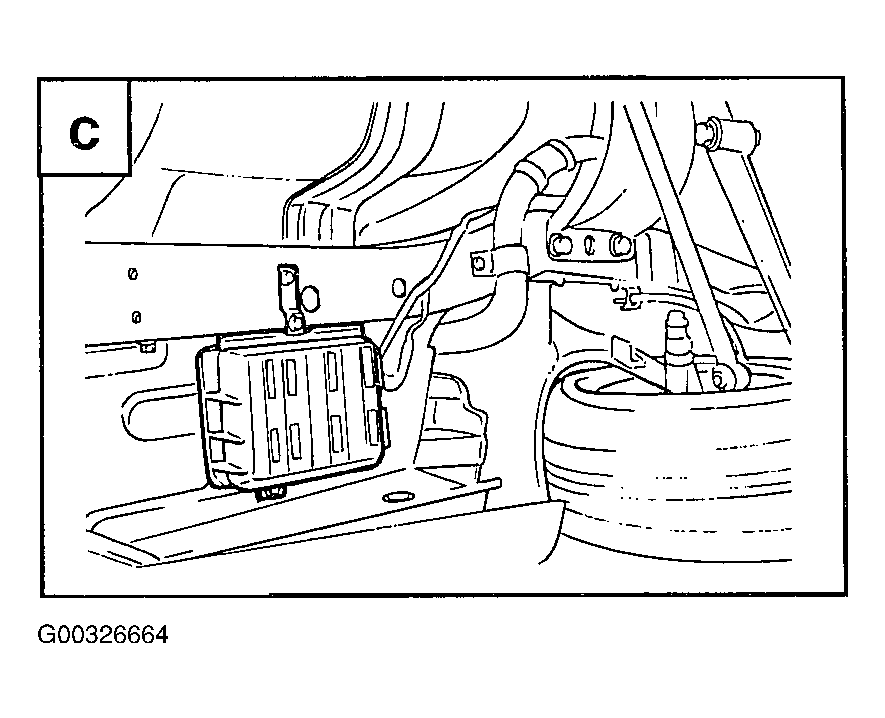

Fig 4: Locating EVAP Canister

Courtesy of KIA MOTORS AMERICA, INC.

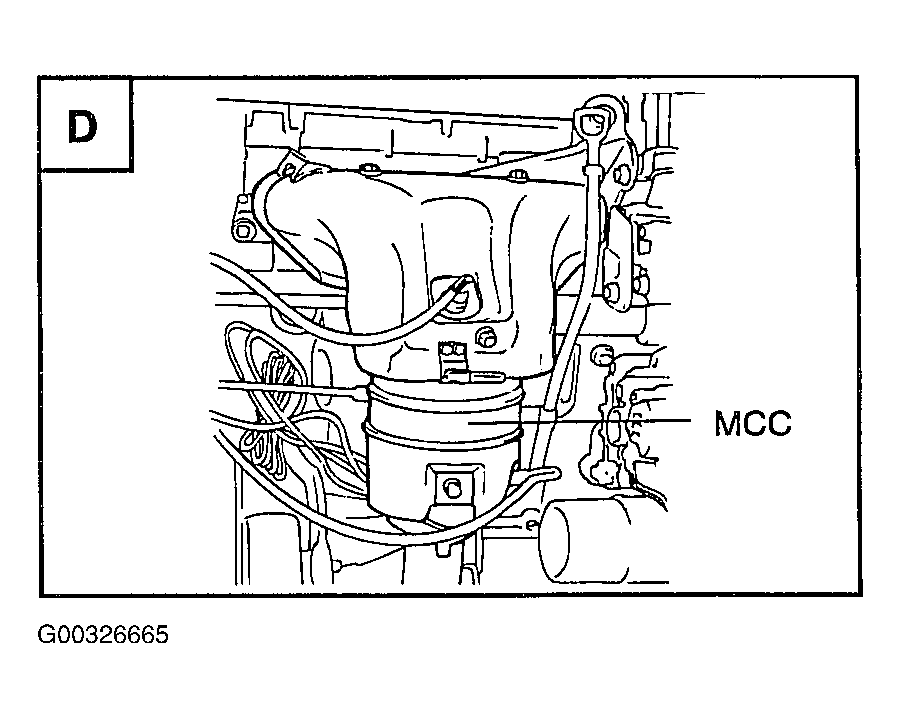

Fig 5: Locating Catalytic Converter (MCC)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Locating Catalytic Converter (UCC)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 7: Locating 2-Way Valve

Courtesy of KIA MOTORS AMERICA, INC.

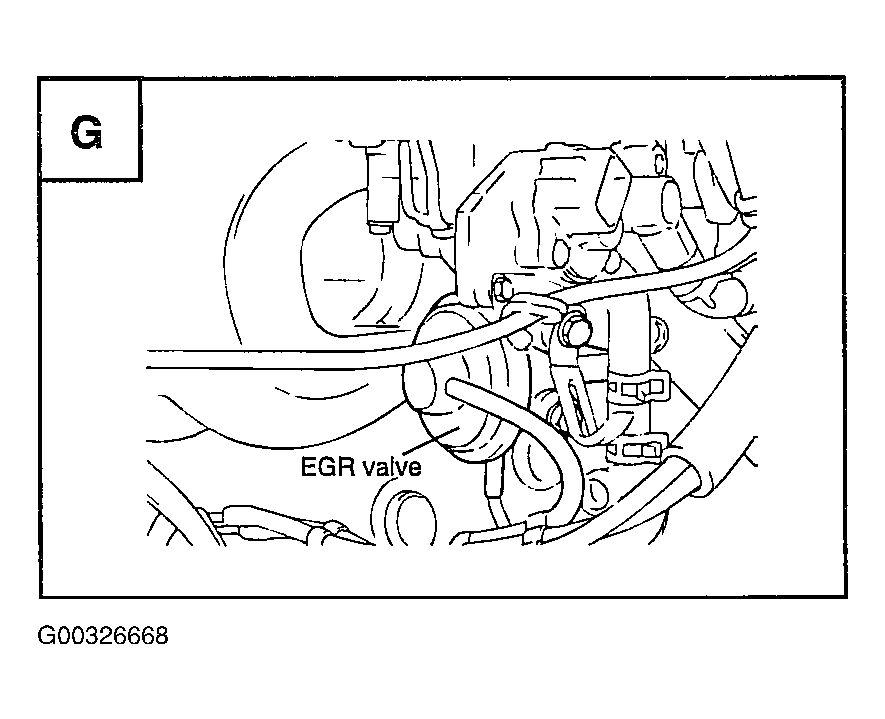

Fig 8: Locating Exhaust Gas Recirculation (EGR) Valve

Courtesy of KIA MOTORS AMERICA, INC.

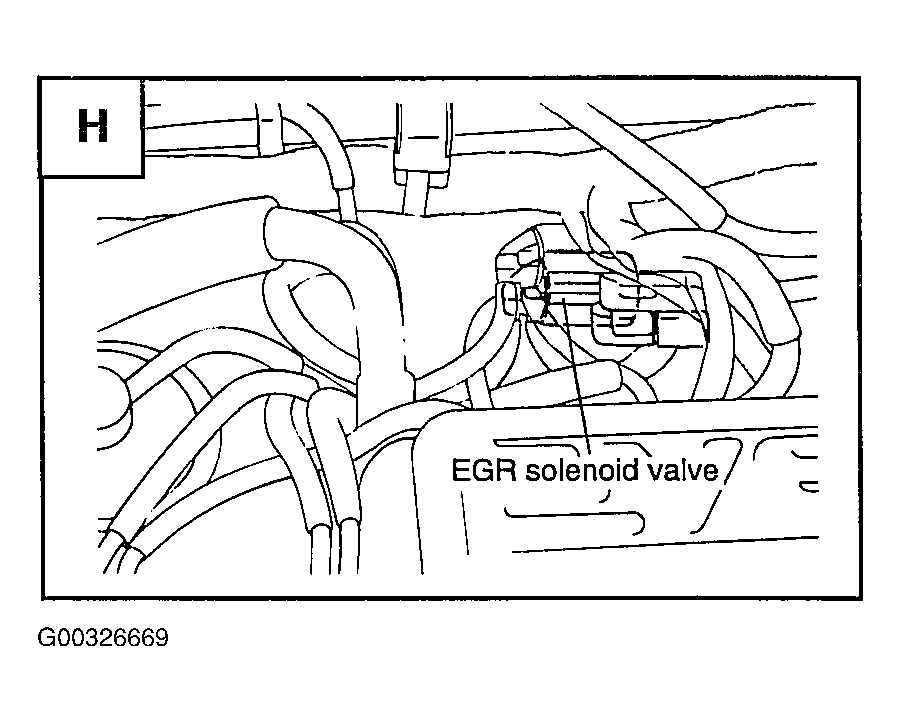

Fig 9: Locating Exhaust Gas Recirculation (EGR) Solenoid Valve

Courtesy of KIA MOTORS AMERICA, INC.
