Diagram B-1c

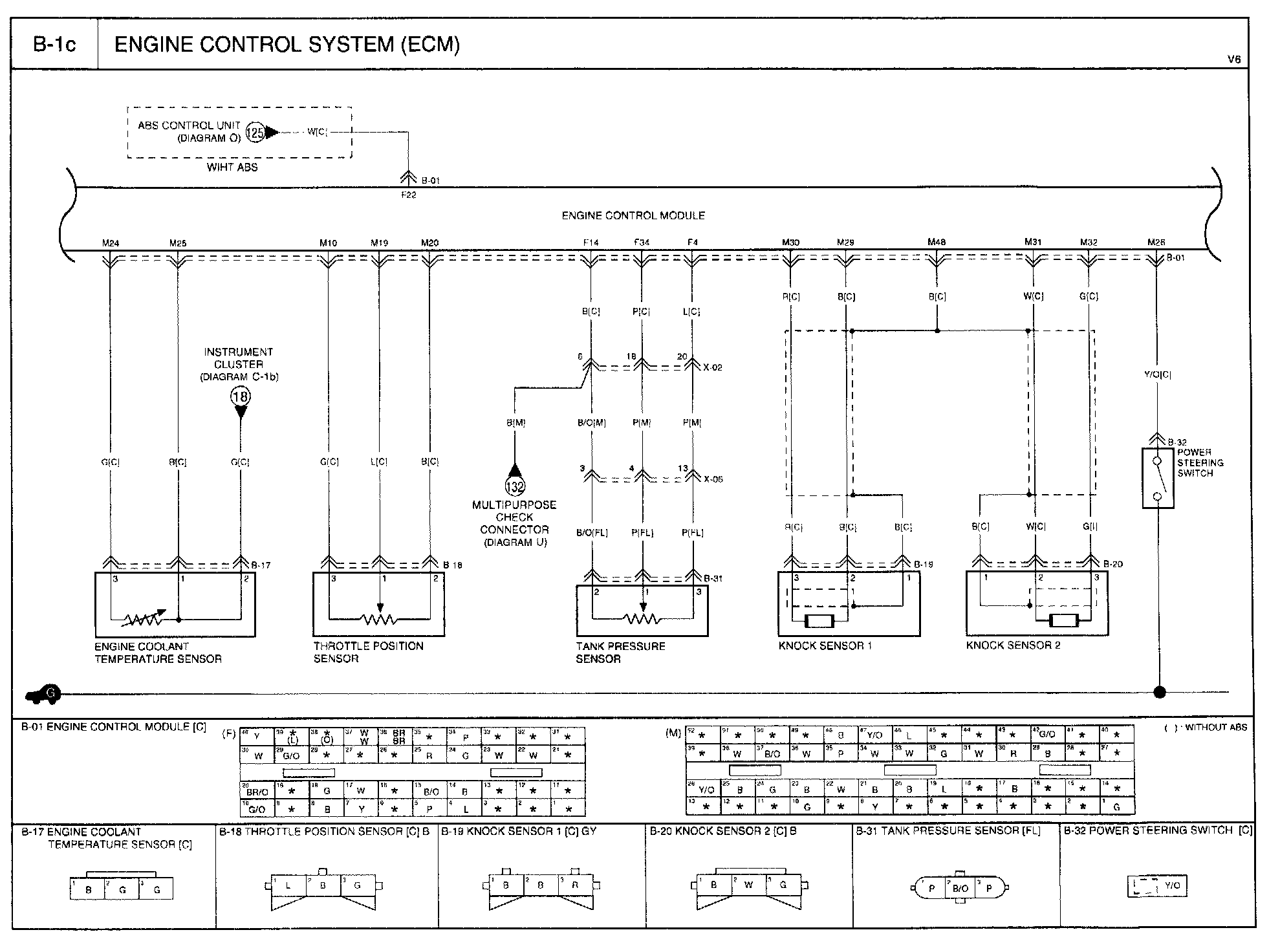

Diagram B-1c:

Routing View B-1c:

Next Diagram Diagram B-1d

Previous Diagram Diagram B-1b


Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
