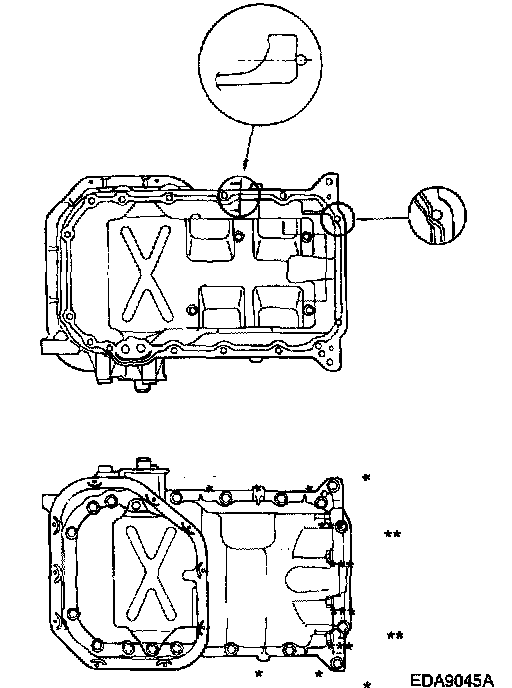

Oil Pan, Engine
Oil Pan Bolts Torque
* bolts 19-28 Nm (13.8-20.3 ft lbs)
** bolts 5-7 Nm (3.7-5.0 ft lbs)
*** bolts 30-42 Nm (21.7-30.4 ft lbs)

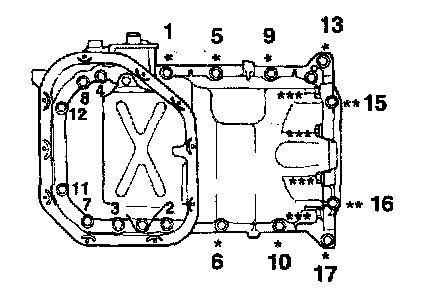

Oil Pan Tightening Sequence:
* bolts 19-28 Nm (13.8-20.3 ft lbs)
** bolts 5-7 Nm (3.7-5.0 ft lbs)
*** bolts 30-42 Nm (21.7-30.4 ft lbs)
