Charging System: Diagrams

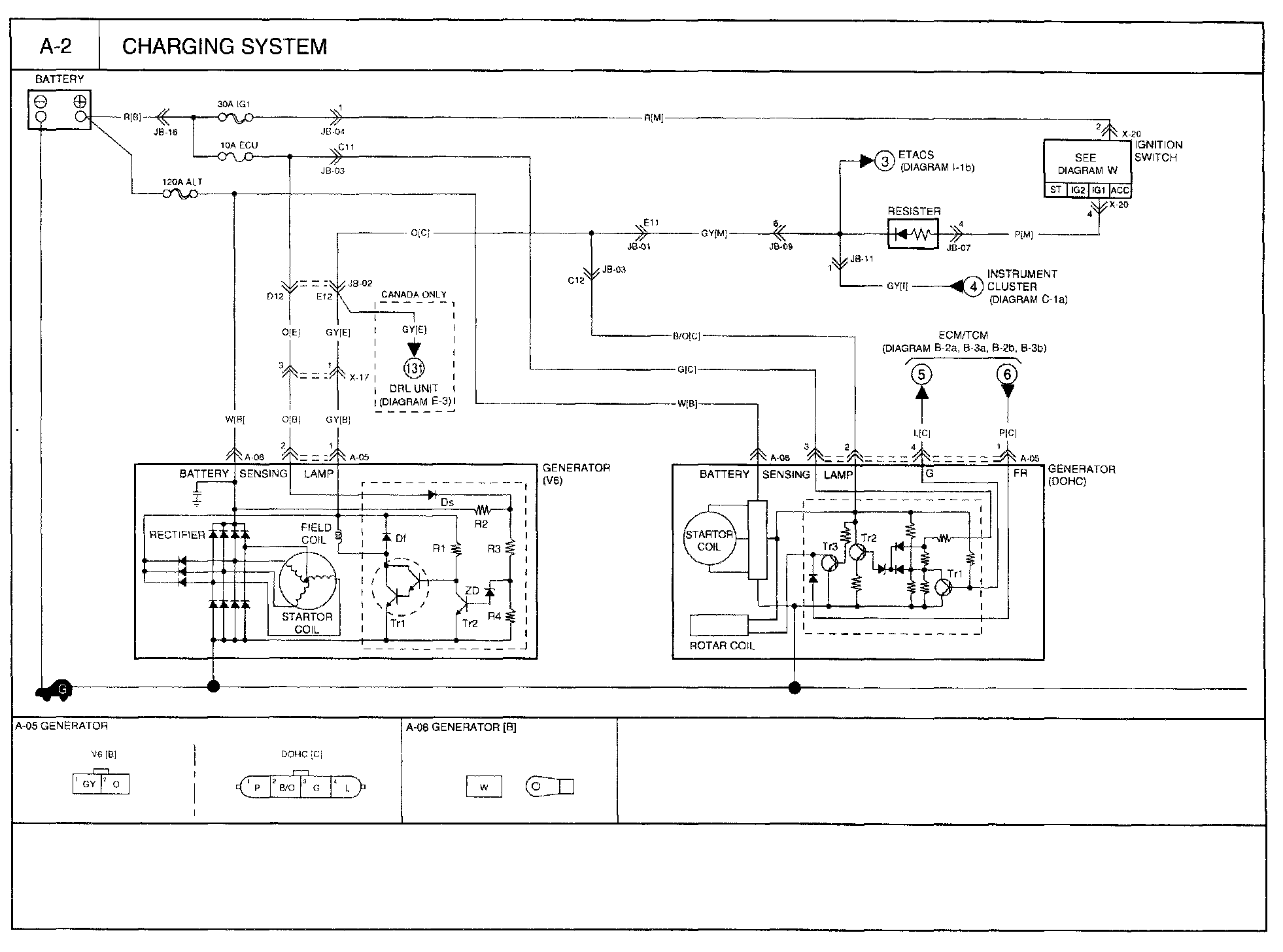

Diagram A-2:

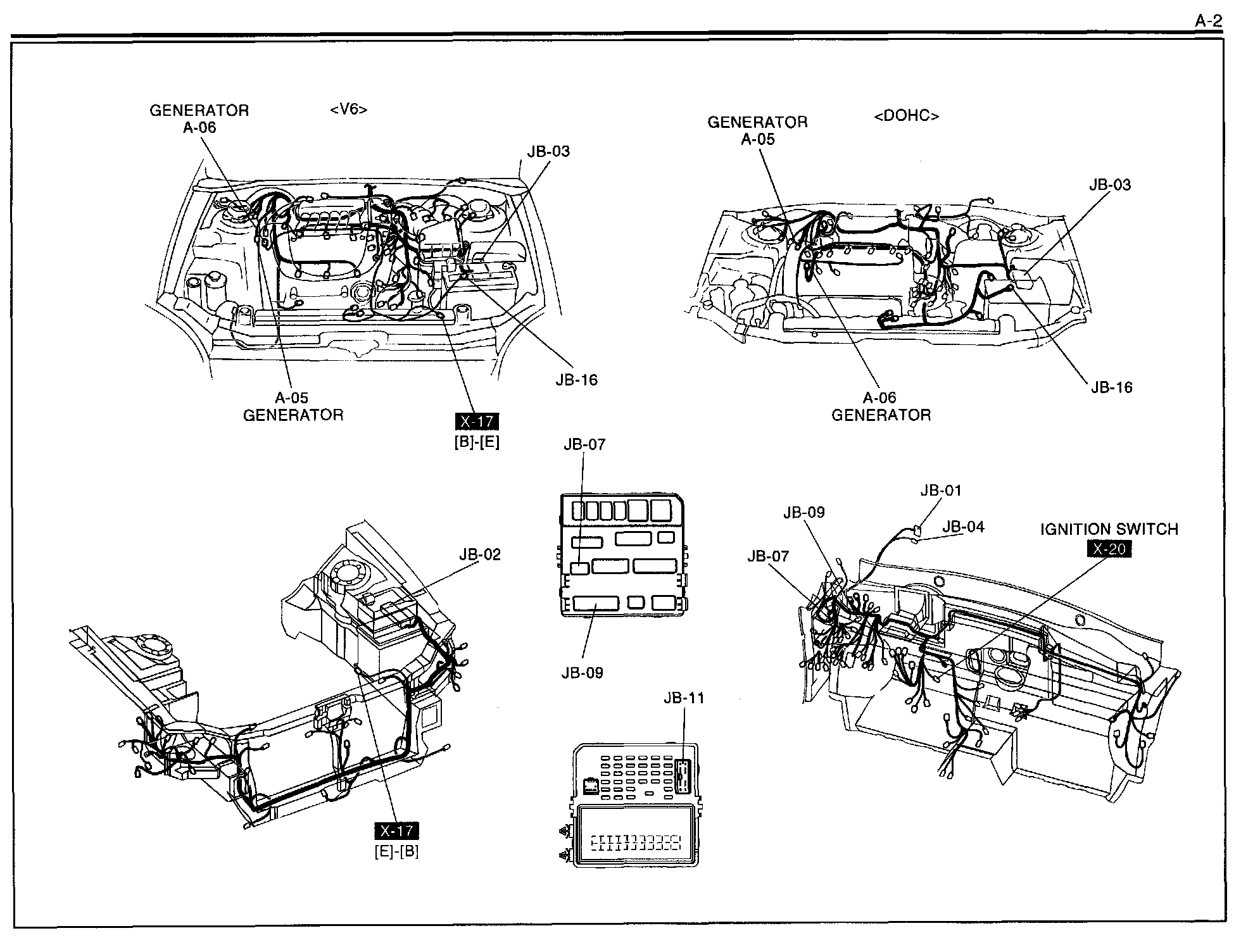

Routing View A-2:
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
