Main Relay: Inspection
- Remove cover from main fuse block.
- Place a finger on main relay.
- Verify that relay clicks when ignition switch is turned ON.
Courtesy of KIA MOTORS AMERICA, INC.
- Verify that main relay clicks when ignition switch is turned ON and OFF.

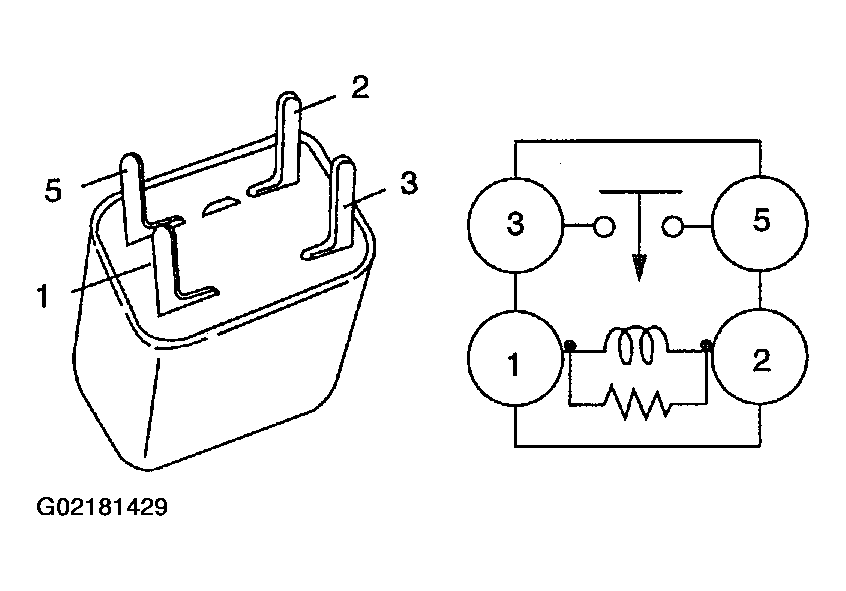

- Apply battery voltage (B+) to terminal 85 and ground terminal 86 of the relay.

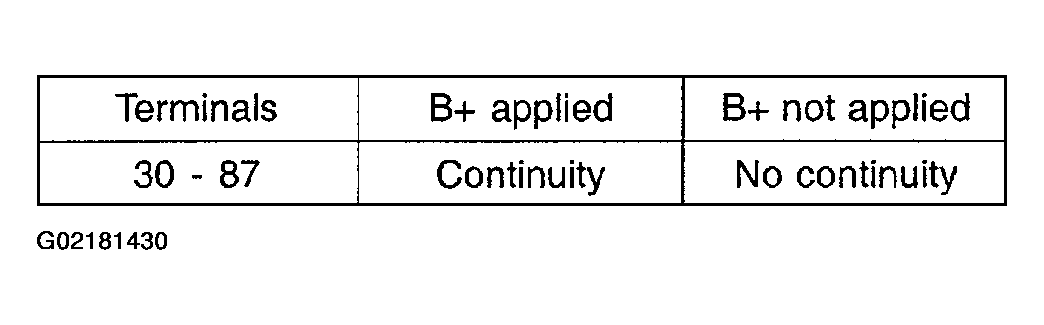

- Check continuity of relay as shown in figure.
Courtesy of KIA MOTORS AMERICA, INC.
- If not as specified, replace main relay.
- Turn ignition switch OFF.
- Replace the cover on main fuse block.
