Continuity Inspection

Check continuity between relay terminals.

B+: Battery positive voltage

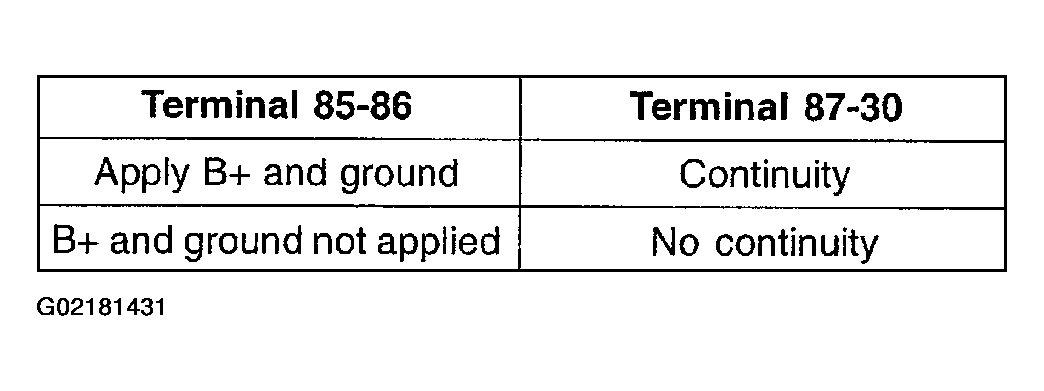

Fig 1: Pump Relay Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.

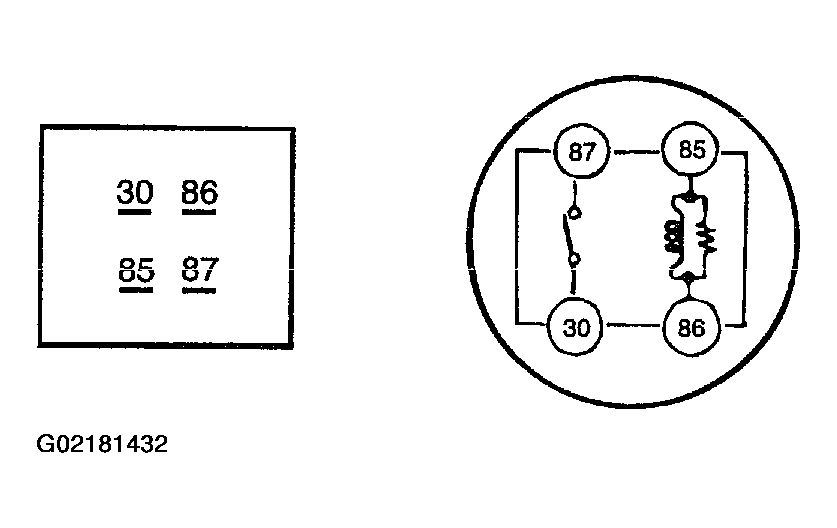

Fig 2: Illustrating Relay Operation & Terminals

Courtesy of KIA MOTORS AMERICA, INC.
