Diagnostic Trouble Codes Retrieval & Clearing Procedure: Clearing

1. Connect the Hi-scan pro to the Data Link Connector (DLC).
2. Turn the ignition switch ON.
3. Erase any DTC stored in ECM.

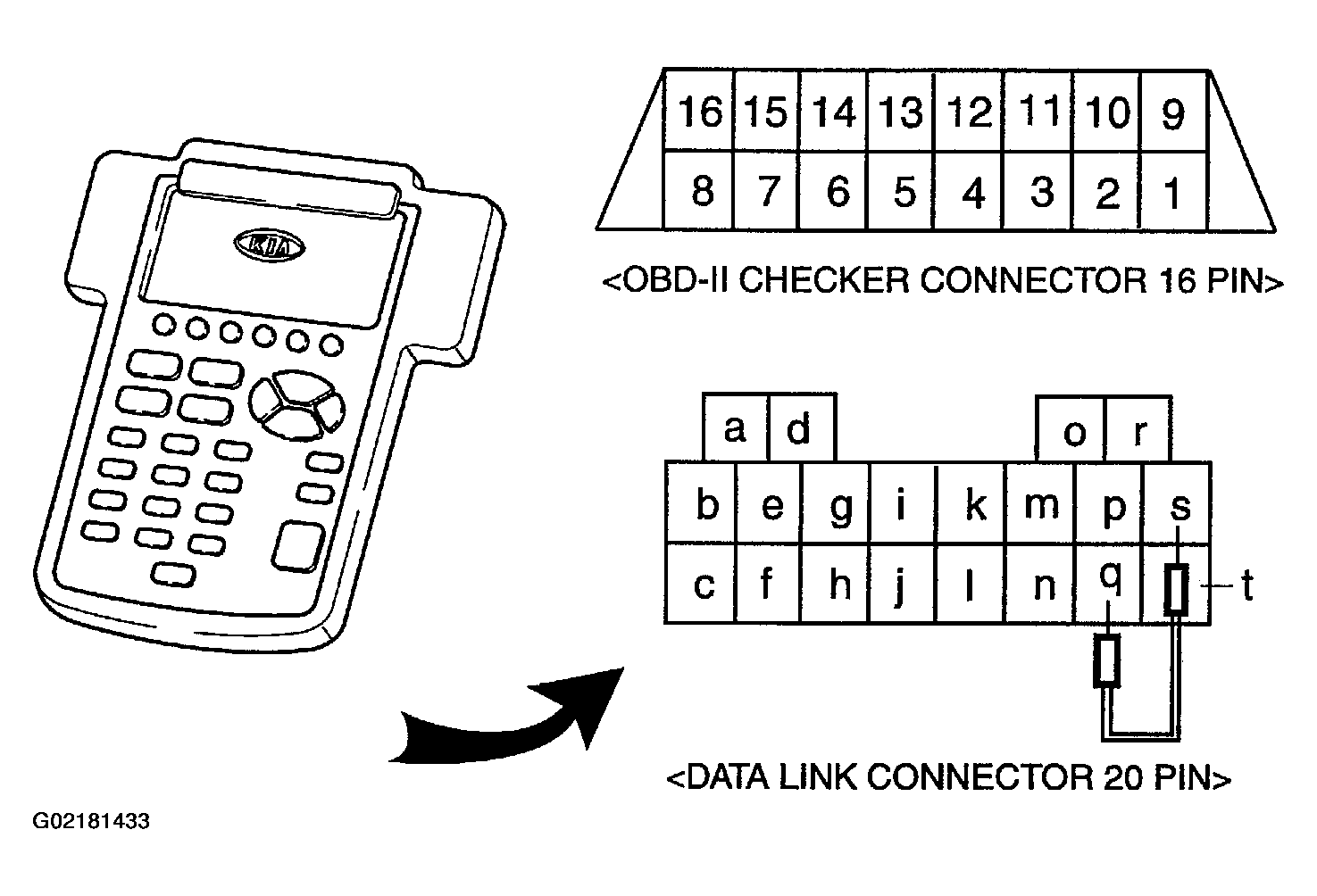

Fig 1: Illustrating DLC Connectors

Courtesy of KIA MOTORS AMERICA, INC.

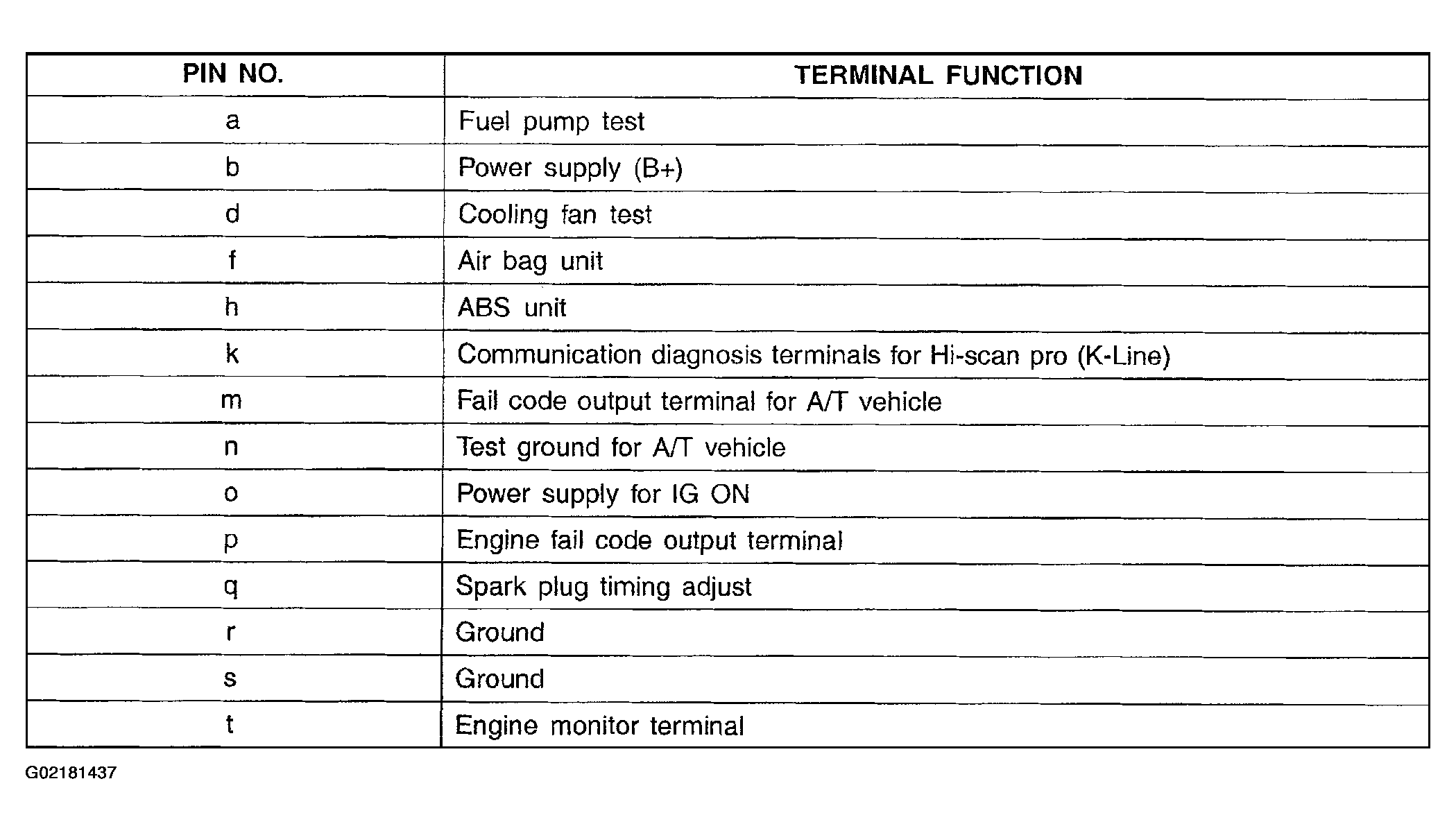

Fig 2: Illustrating 20 Pin Layout

Courtesy of KIA MOTORS AMERICA, INC.

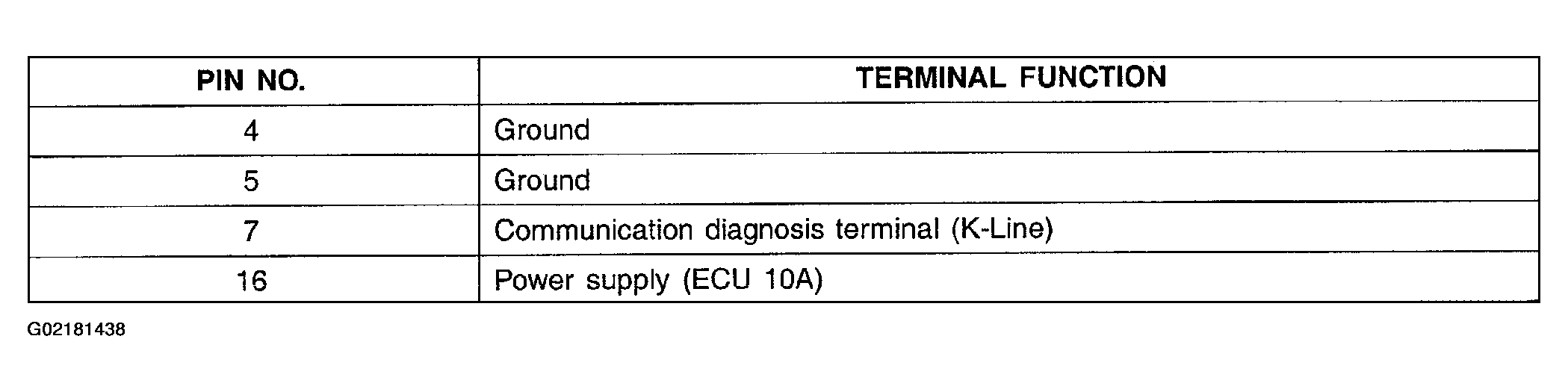

Fig 3: Illustrating 16 Pin Layout

Courtesy of KIA MOTORS AMERICA, INC.
