Symptom Related Diagnostic Procedure: Introduction

Most of the fuel and emission control system is electrically controlled, often making it difficult to diagnose problems in the system, especially intermittent problems.

Before undertaking actual checks, take a few minutes to talk with a customer who approaches with a driveability complaint. The customer is often a good source of information on such problems, especially intermittent ones. Through talks with the customer, one can find out what the symptoms are and under what conditions they occur.

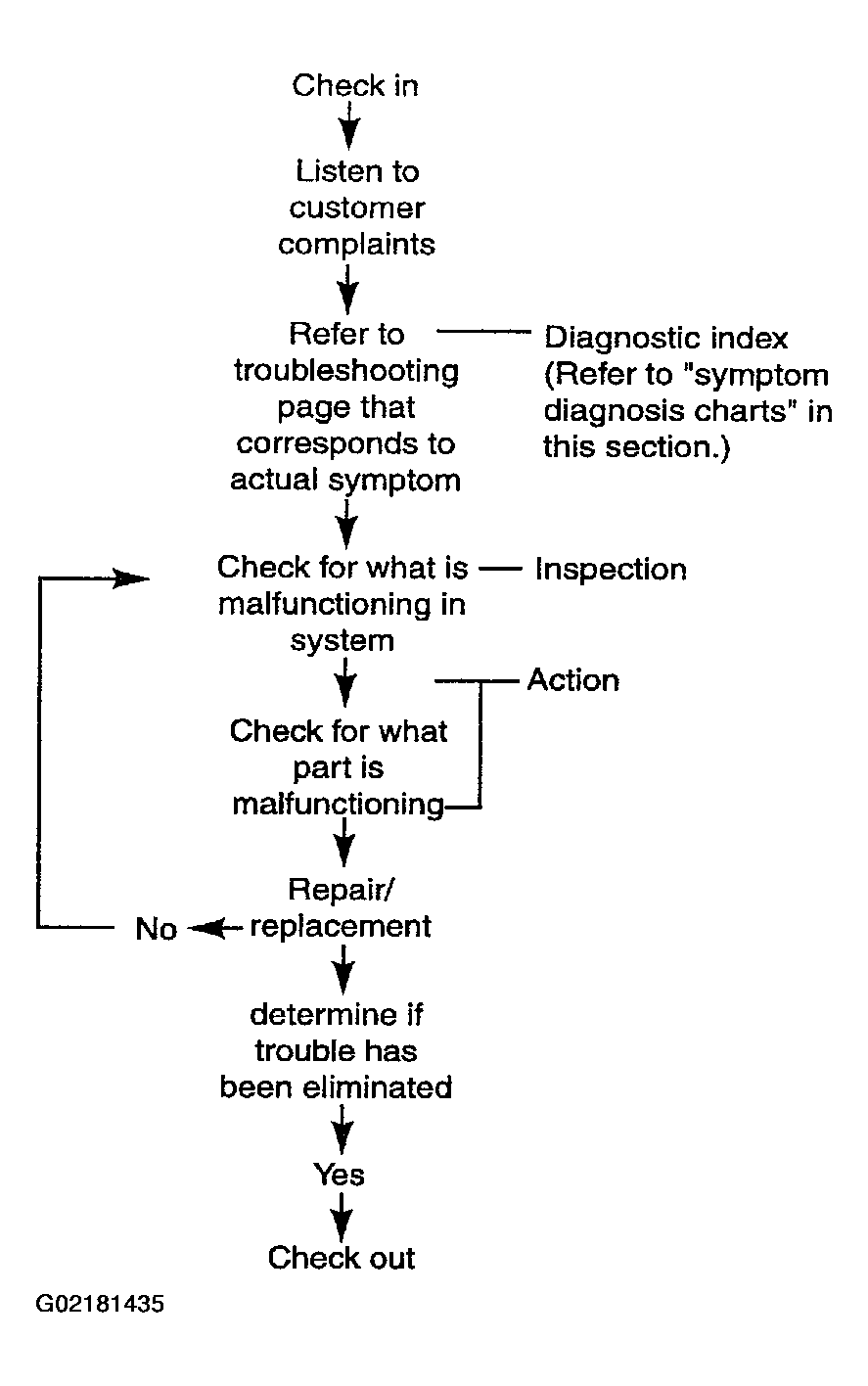

Fig 1: Illustrating Work Flow
G02181435Courtesy of KIA MOTORS AMERICA, INC.

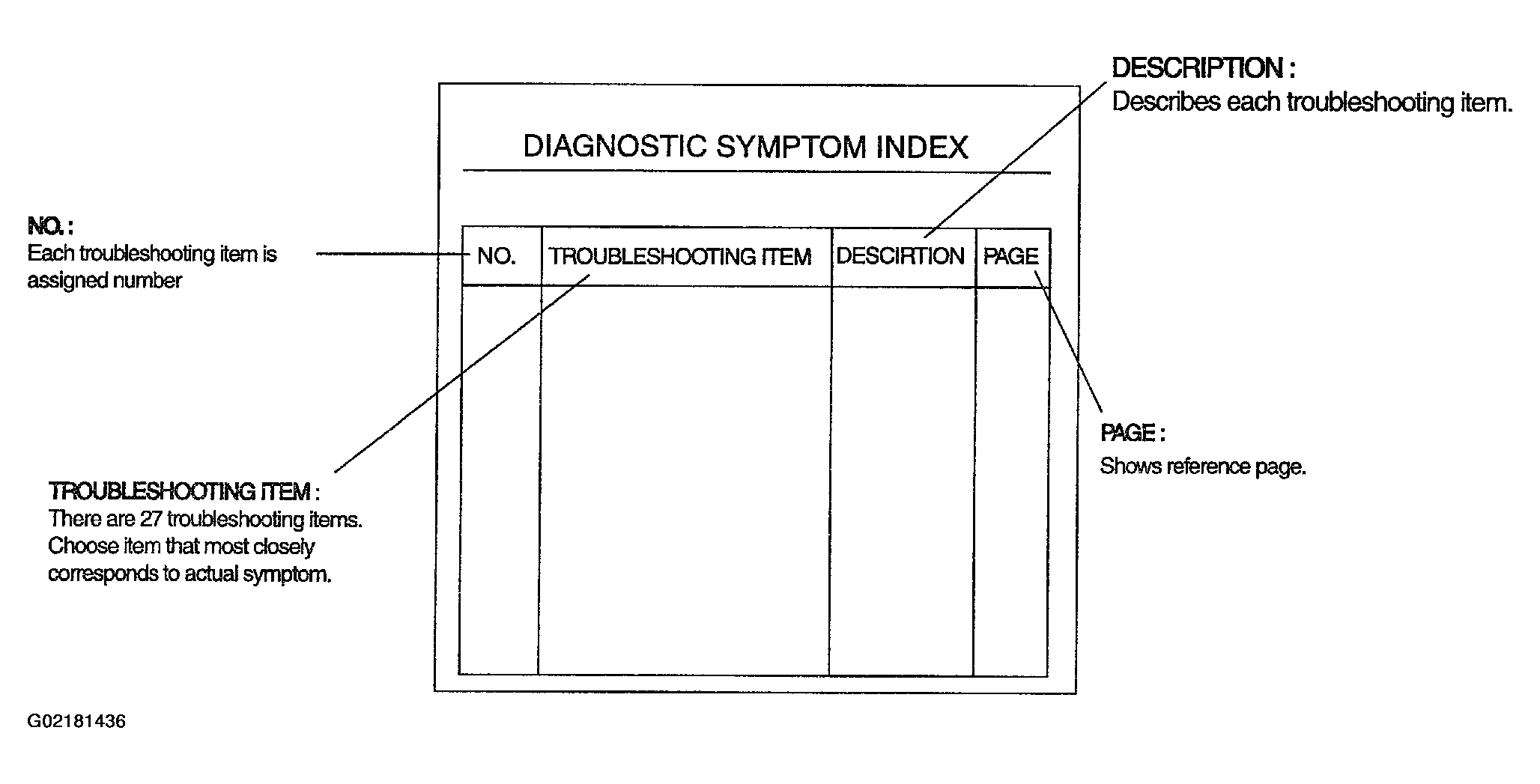

Fig 2: Illustrating Diagnostic Symptom Index Chart
G02181436Courtesy of KIA MOTORS AMERICA, INC.
