Fuel Leakage Test
- Remove injectors together with fuel rail.
- Secure injectors to fuel rail with wire.

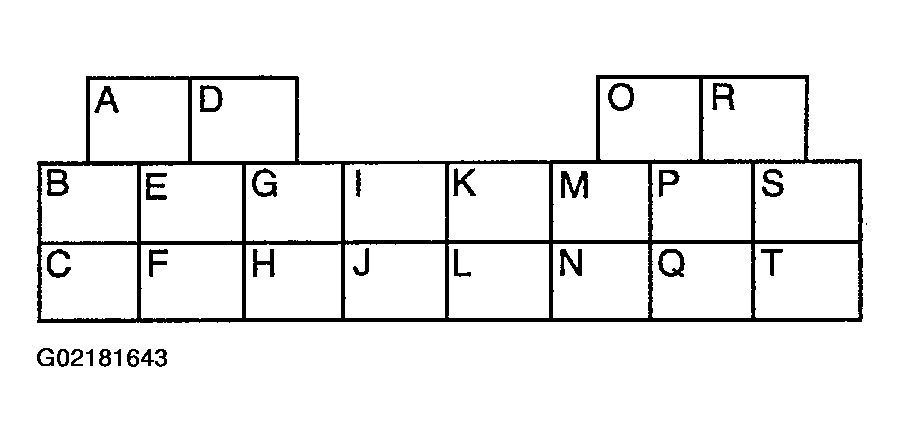

- Connect data link connector terminals FUEL PUMP and B+ with jumper wire.
- Turn ignition switch ON.
- Tilt injectors about 60 degrees and verify that no fuel leaks from the injector nozzles.
- If fuel leaks, replace injector.
- Turn ignition switch "OFF" and remove jumper wire.
