Injector Resistance

  1. Disconnect injector harness.
  2. Measure resistance of each injector.

    Resistance: 13.5~15.5Ω at 68°F (20°C)

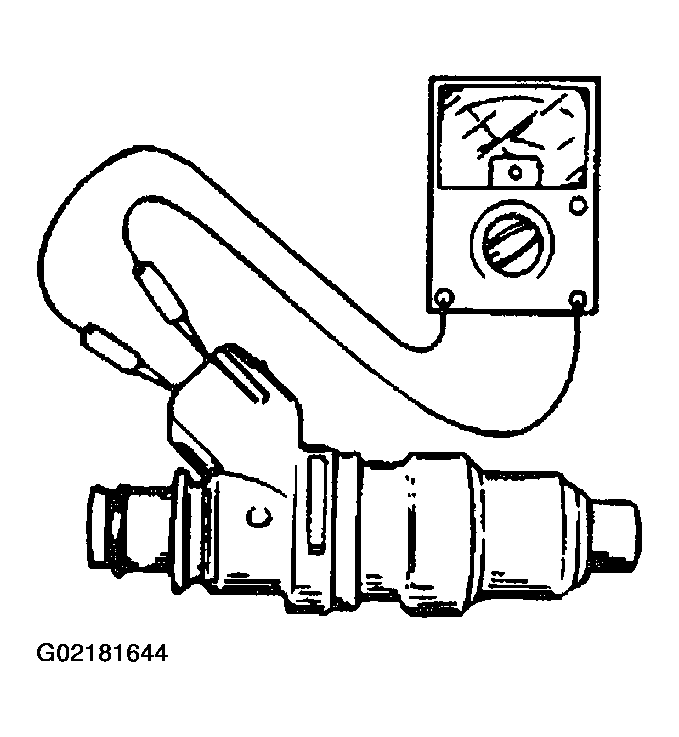

    Fig 1: Measuring Injector Resistance
    G02181644Courtesy of KIA MOTORS AMERICA, INC.
  3. If not within specification, replace injector.
