Quick Connector Removal
NOTE:
Release fuel system pressure before servicing any fuel system connection.

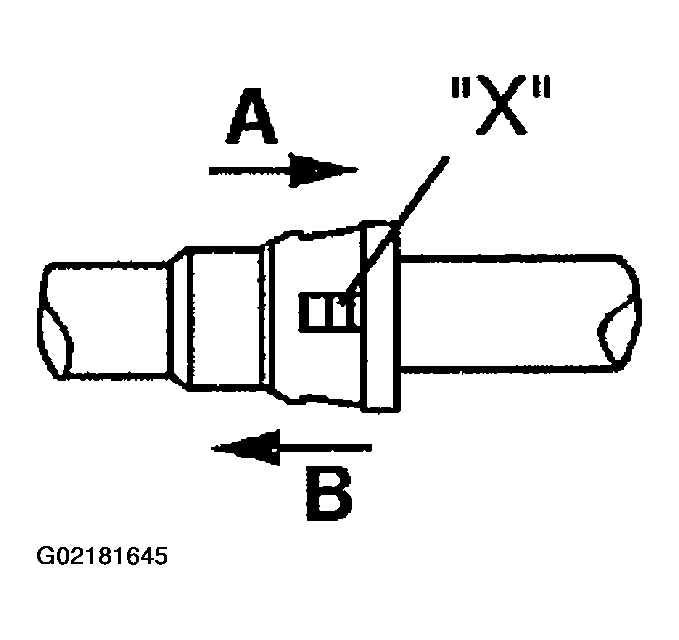

- Push quick connector to direction "A".
- Squeeze both sides of lock retainer and pull connection apart to direction "B".
CAUTION:
Do not push and pull too hard.
