Engine Control System

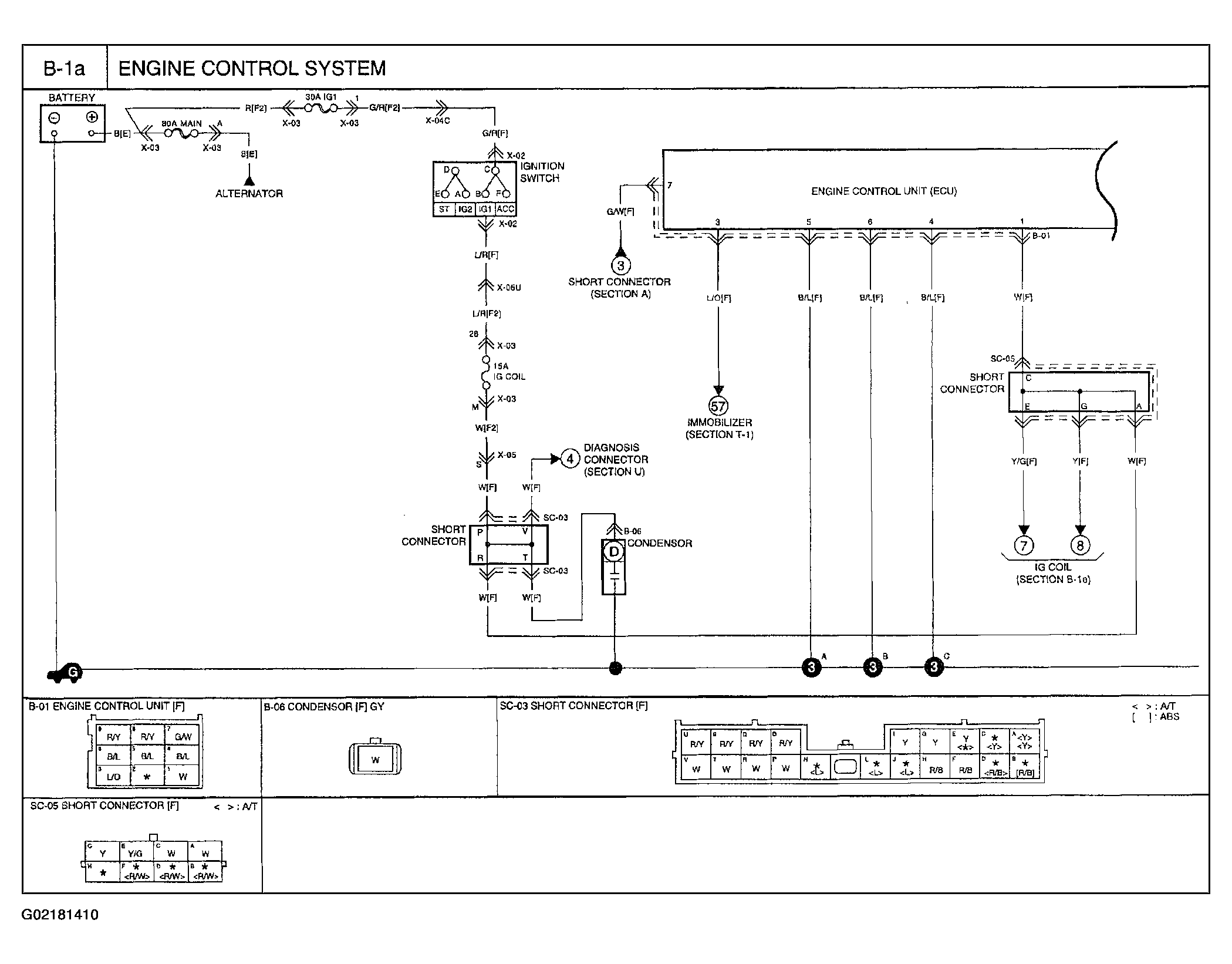

Fig 1: Engine Control System (1 Of 6)
Courtesy of KIA MOTORS AMERICA, INC.

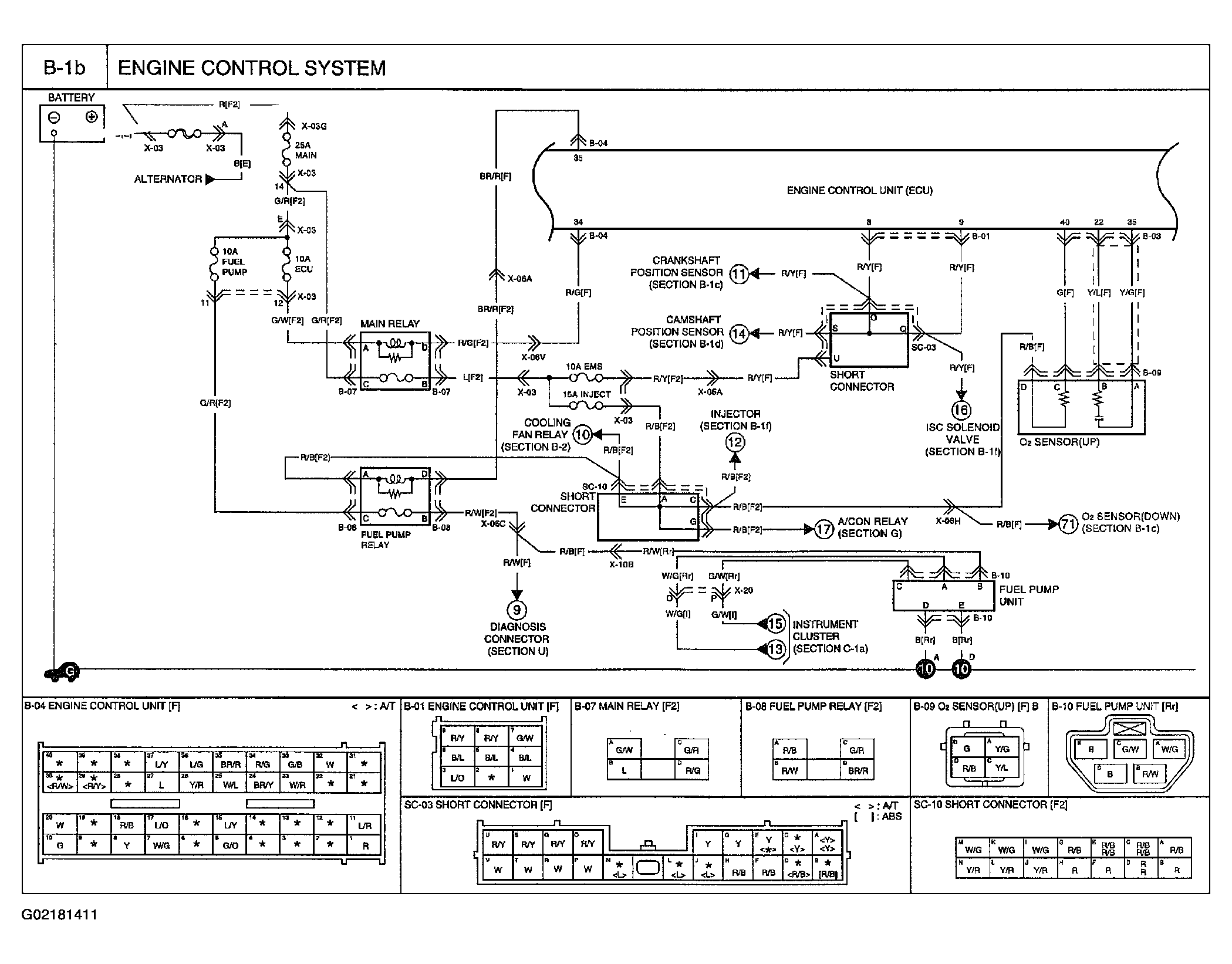

Fig 2: Engine Control System (2 Of 6)
Courtesy of KIA MOTORS AMERICA, INC.

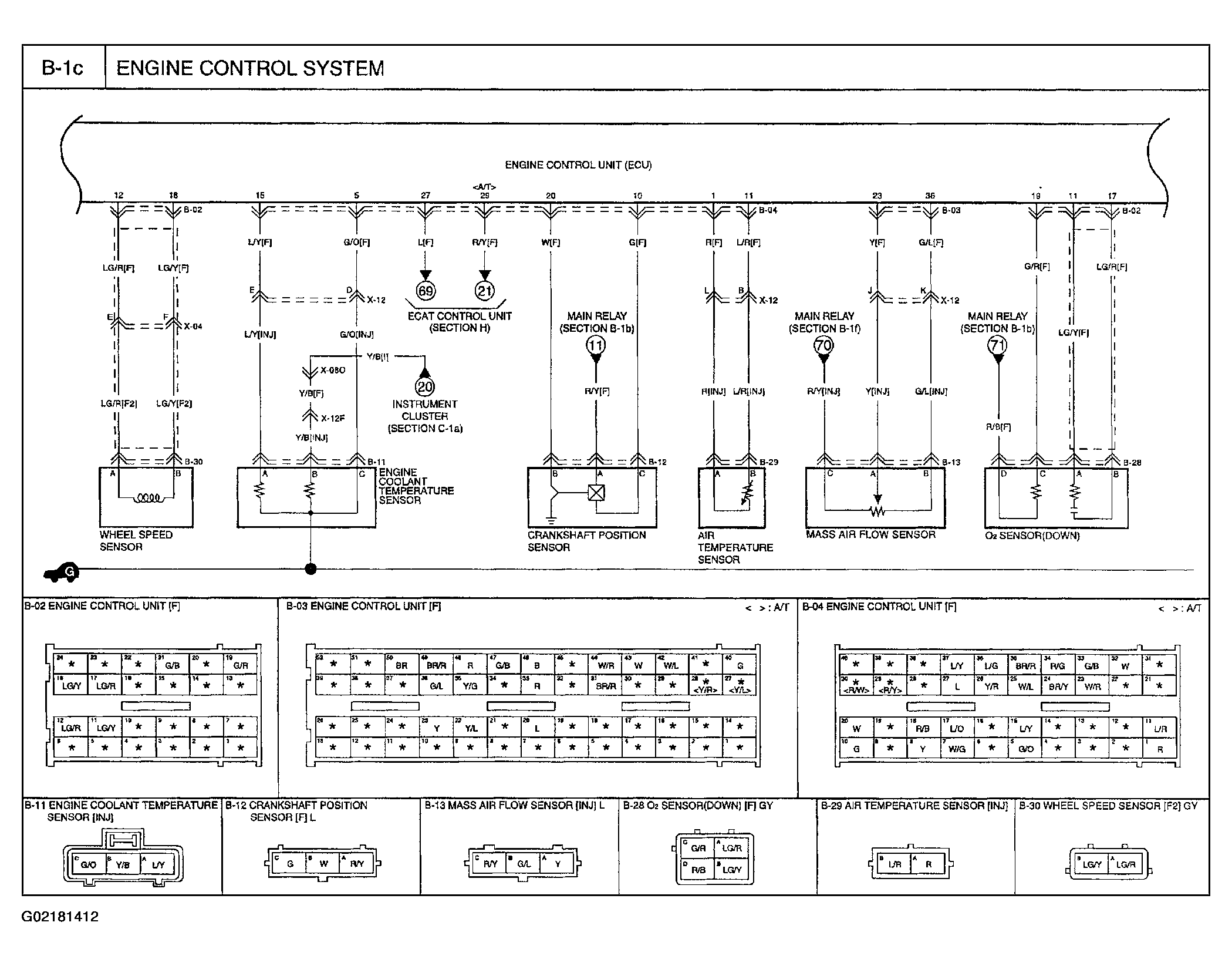

Fig 3: Engine Control System (3 Of 6)
Courtesy of KIA MOTORS AMERICA, INC.

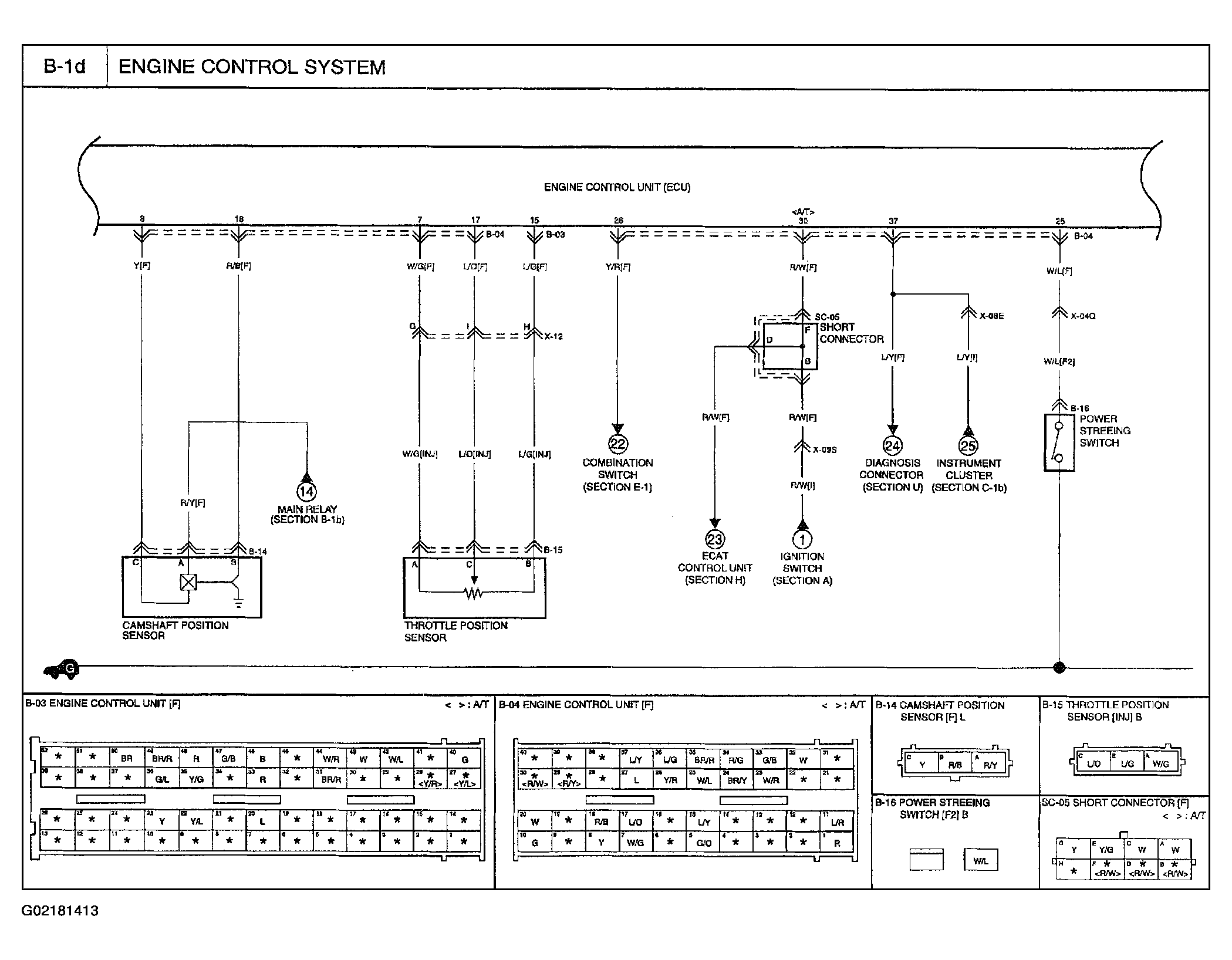

Fig 4: Engine Control System (4 Of 6)
Courtesy of KIA MOTORS AMERICA, INC.

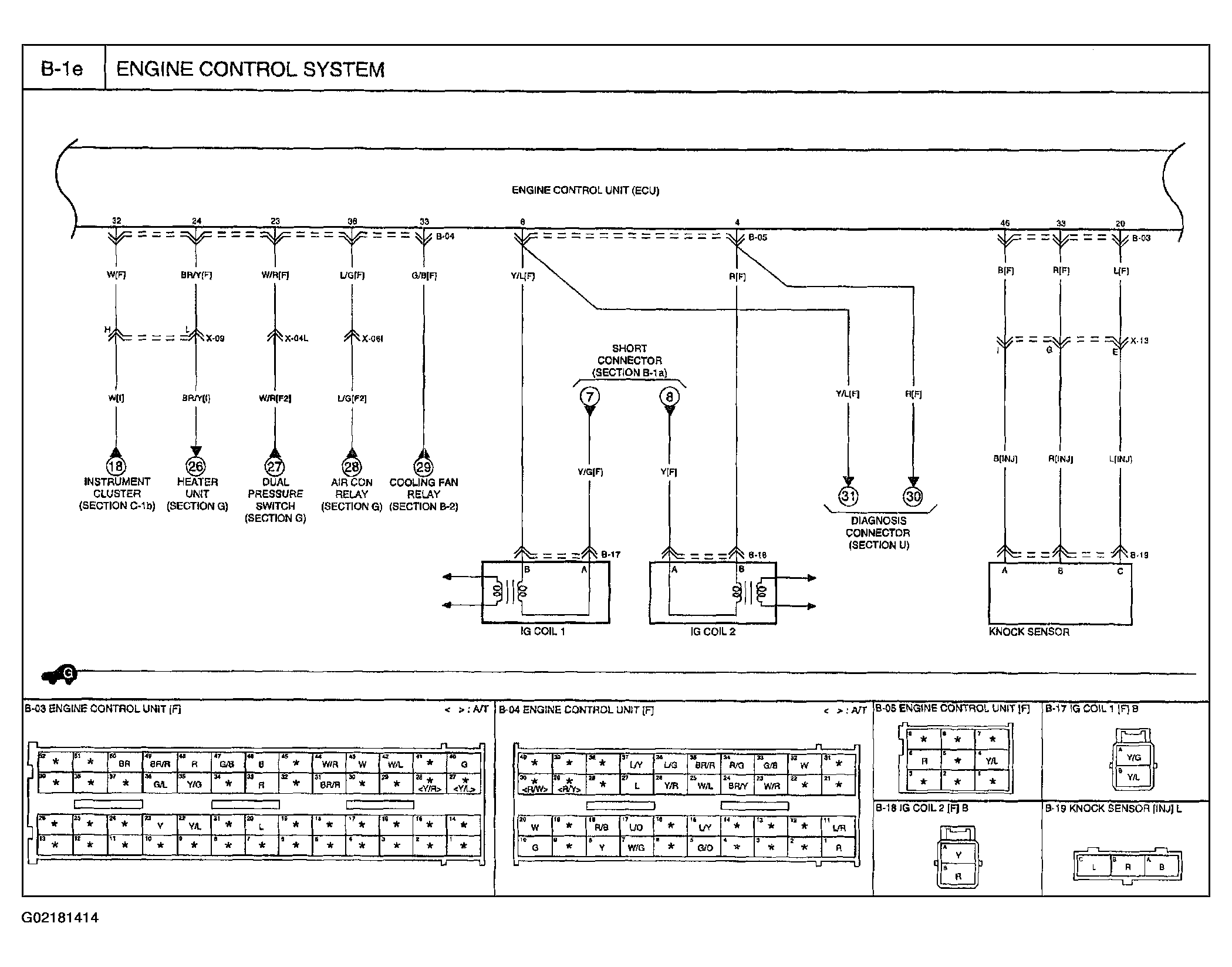

Fig 5: Engine Control System (5 Of 6)
Courtesy of KIA MOTORS AMERICA, INC.

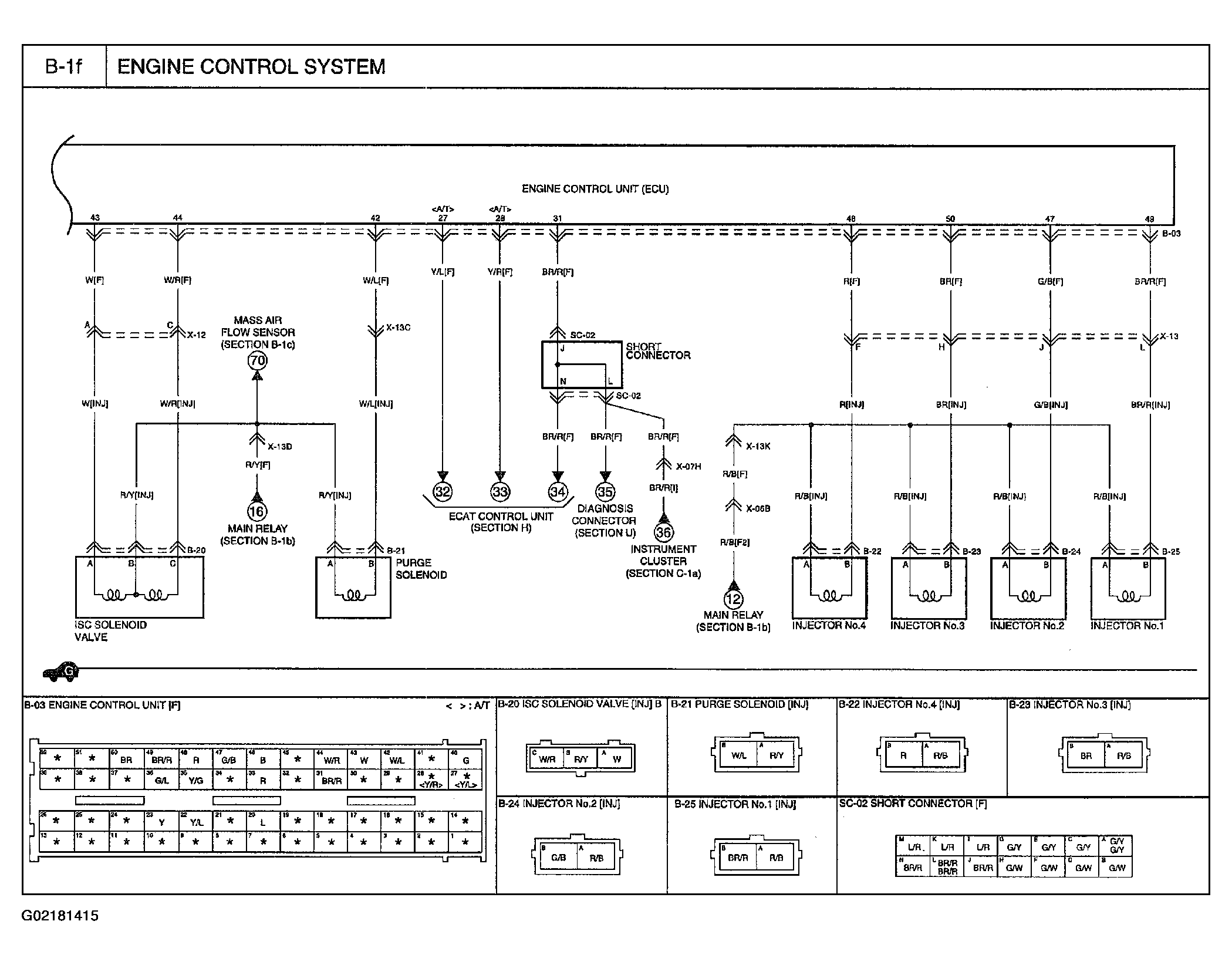

Fig 6: Engine Control System (6 Of 6)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
