Air Conditioner Does Not Operate

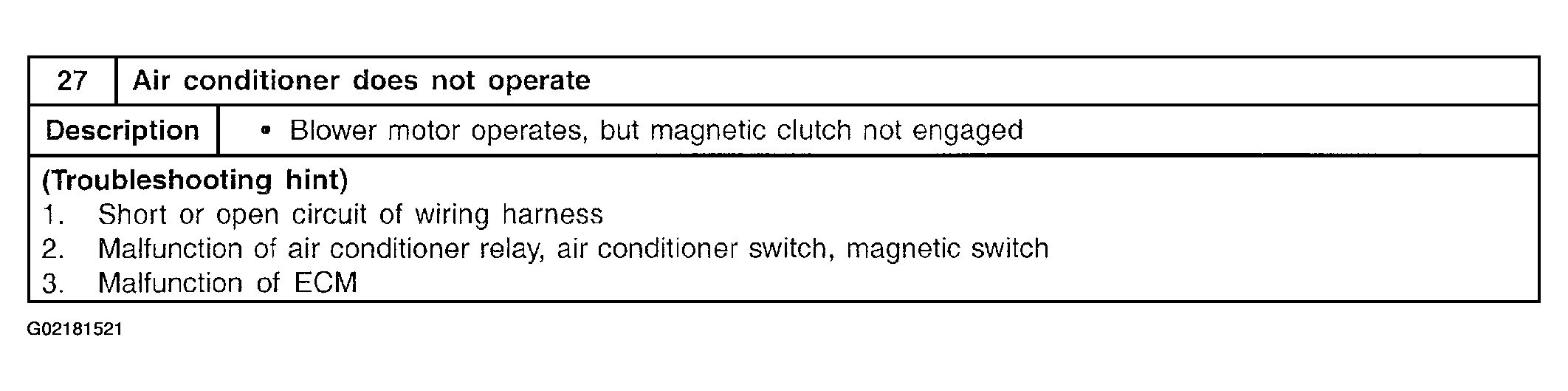

Fig 1: Description
G02181521Courtesy of KIA MOTORS AMERICA, INC.

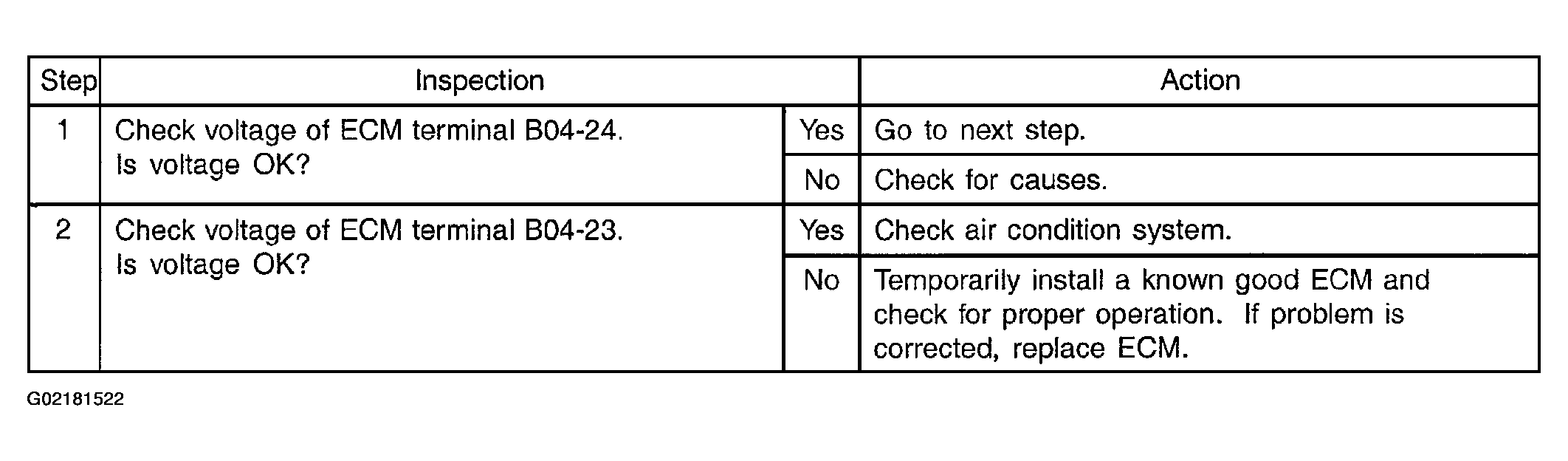

Fig 2: Inspection/Action Chart
G02181522Courtesy of KIA MOTORS AMERICA, INC.
