Fuel Odor

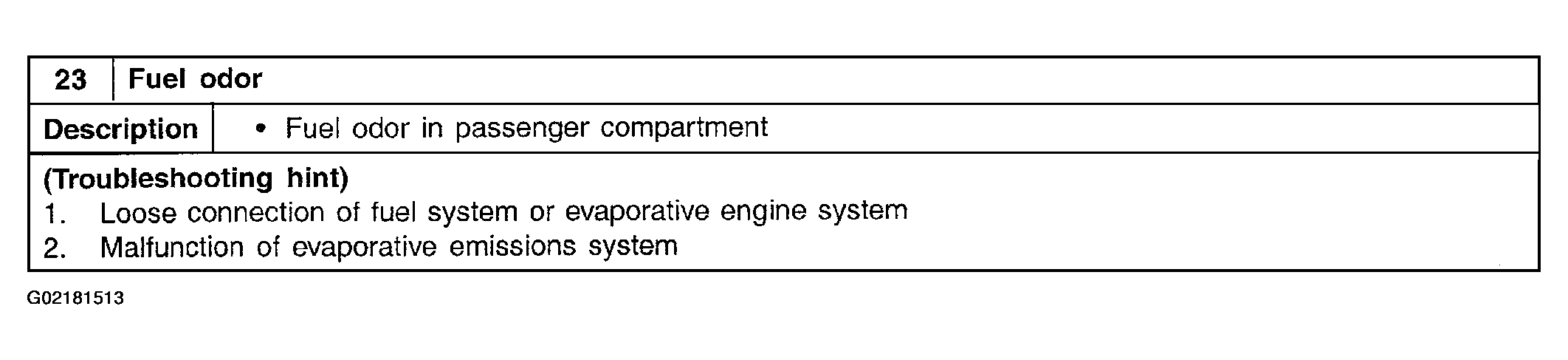

Fig 1: Description
Courtesy of KIA MOTORS AMERICA, INC.

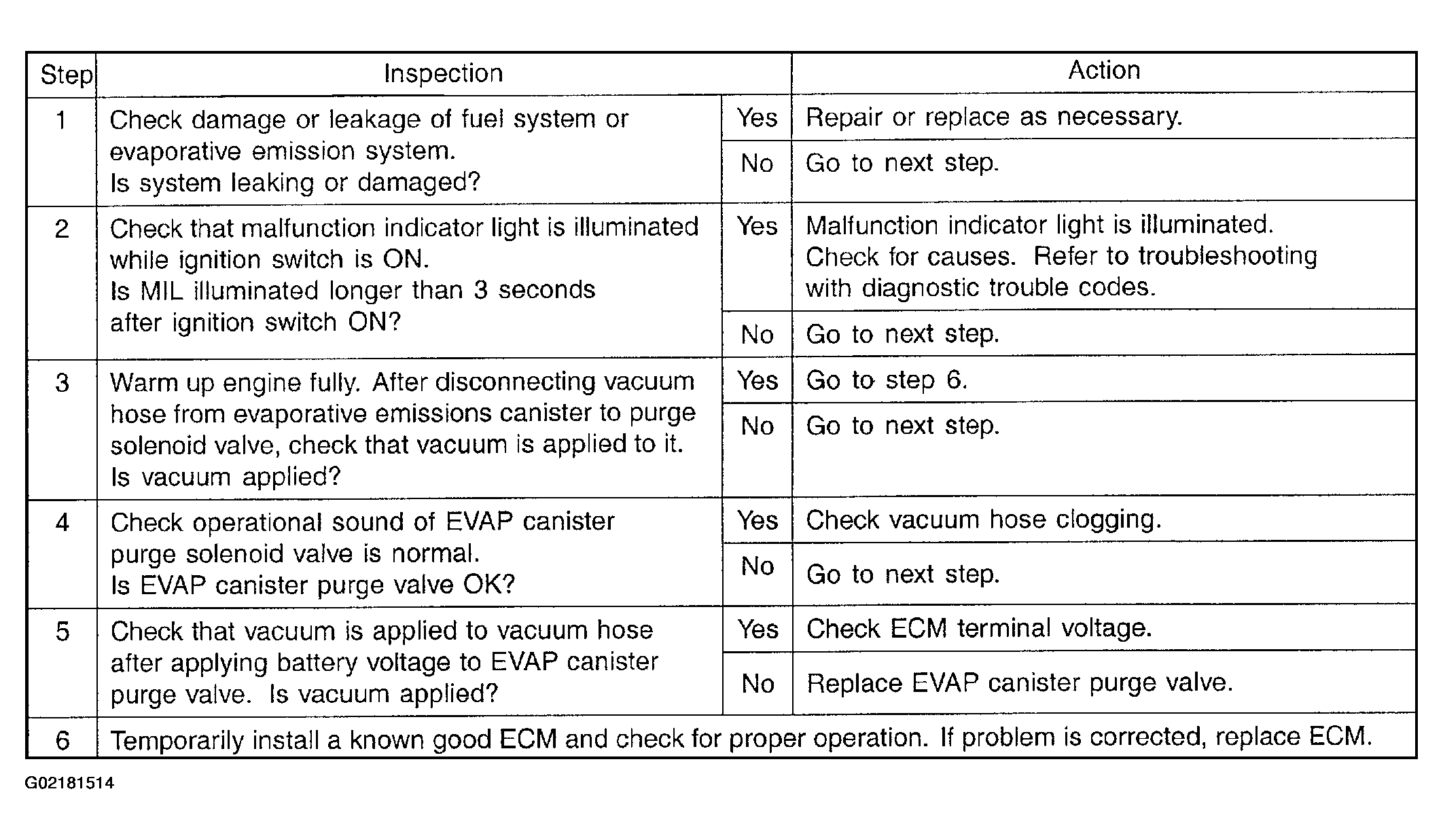

Fig 2: Inspection/Action Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
