High Idle Speed After Engine Warm Up

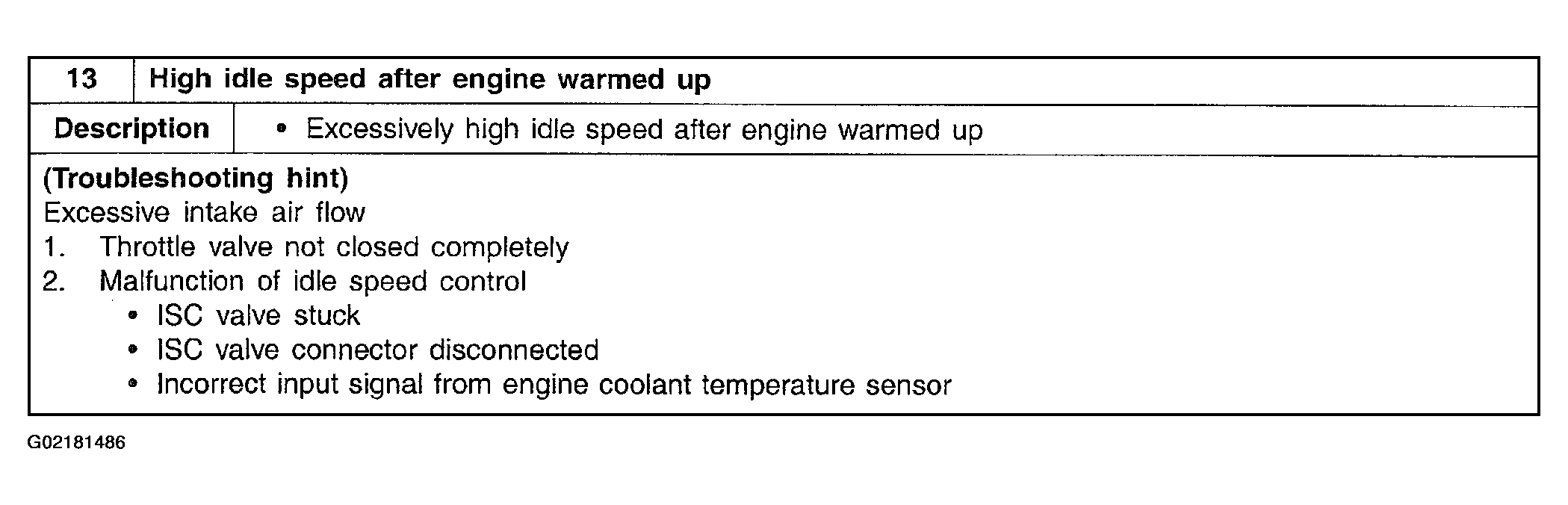

Fig 1: Description
G02181486Courtesy of KIA MOTORS AMERICA, INC.

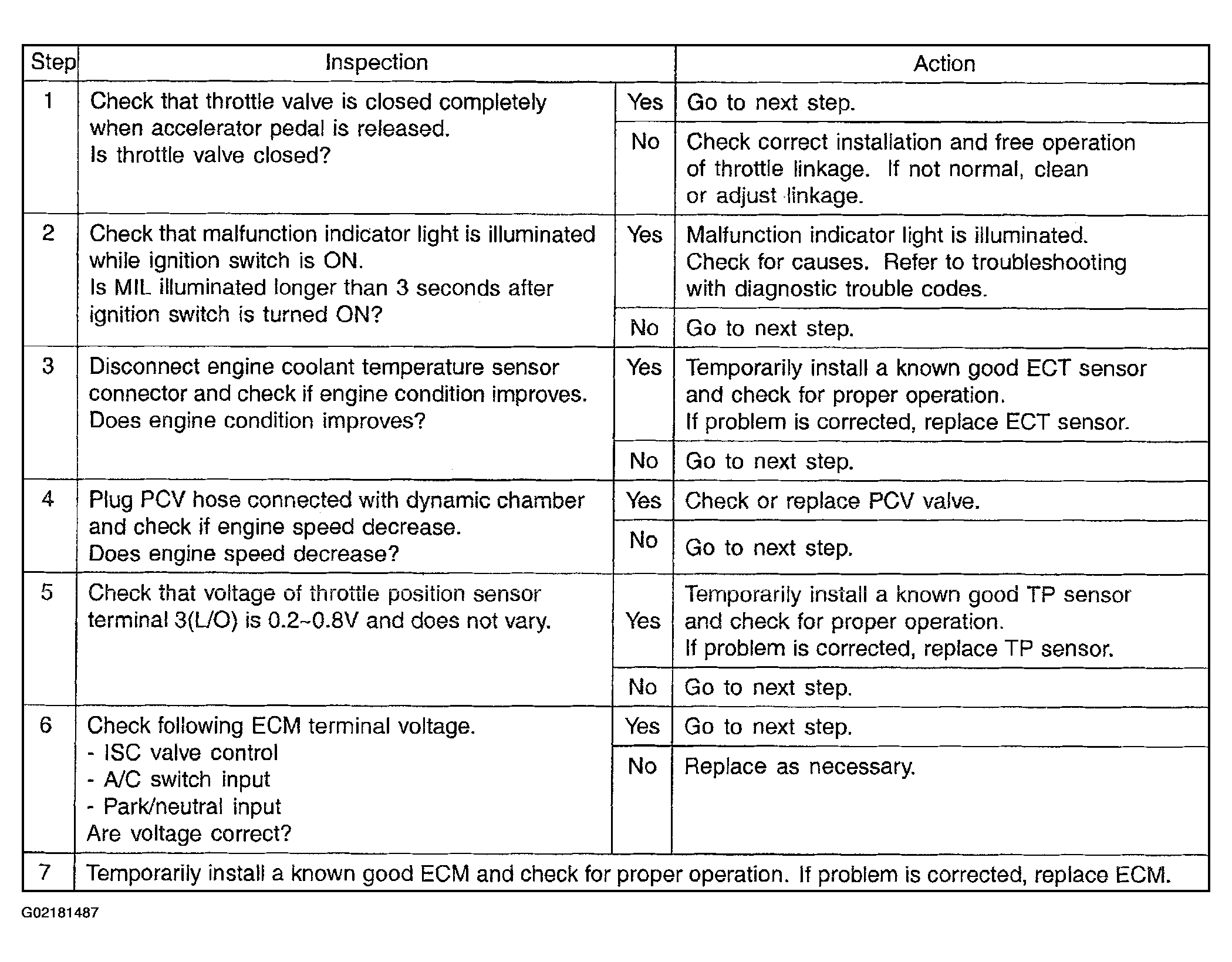

Fig 2: Inspection/Action Chart
G02181487Courtesy of KIA MOTORS AMERICA, INC.
