Symptom Diagnosis Charts: Knocking

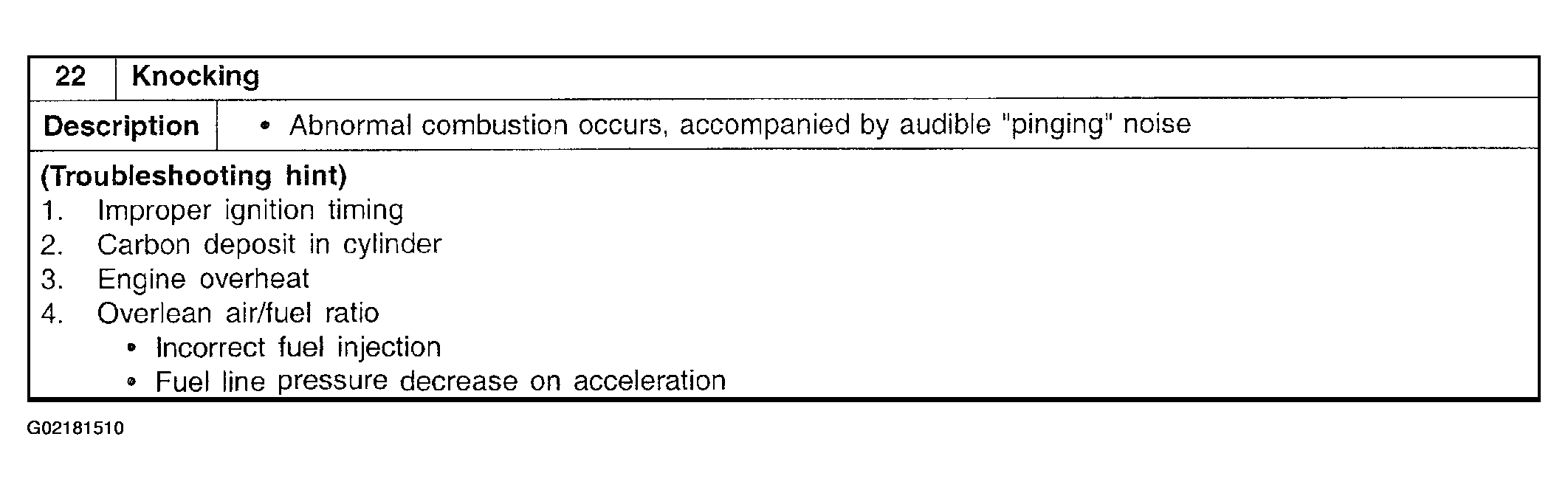

Fig 1: Description
G02181510Courtesy of KIA MOTORS AMERICA, INC.

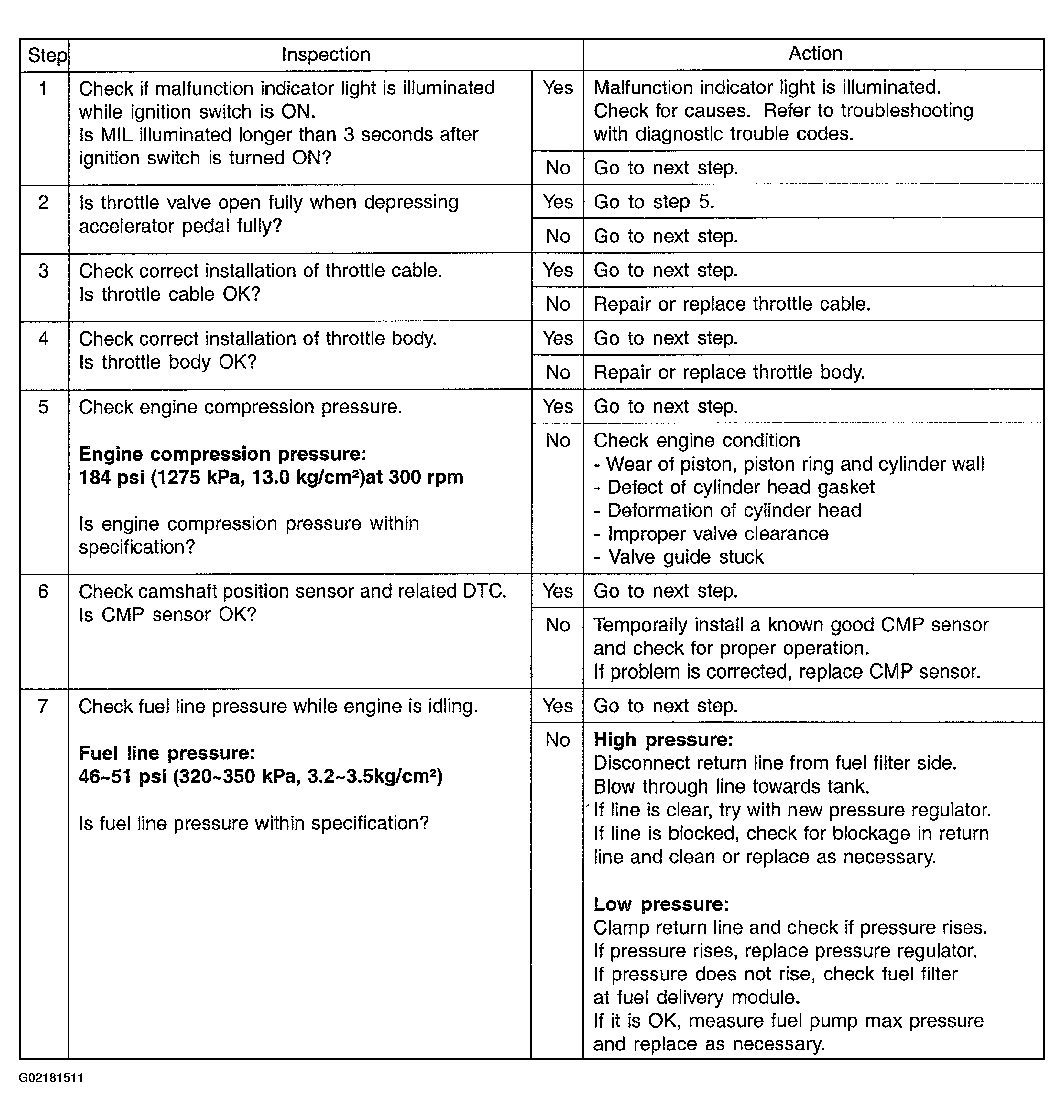

Fig 2: Inspection/Action Chart (1 Of 2)
G02181511Courtesy of KIA MOTORS AMERICA, INC.

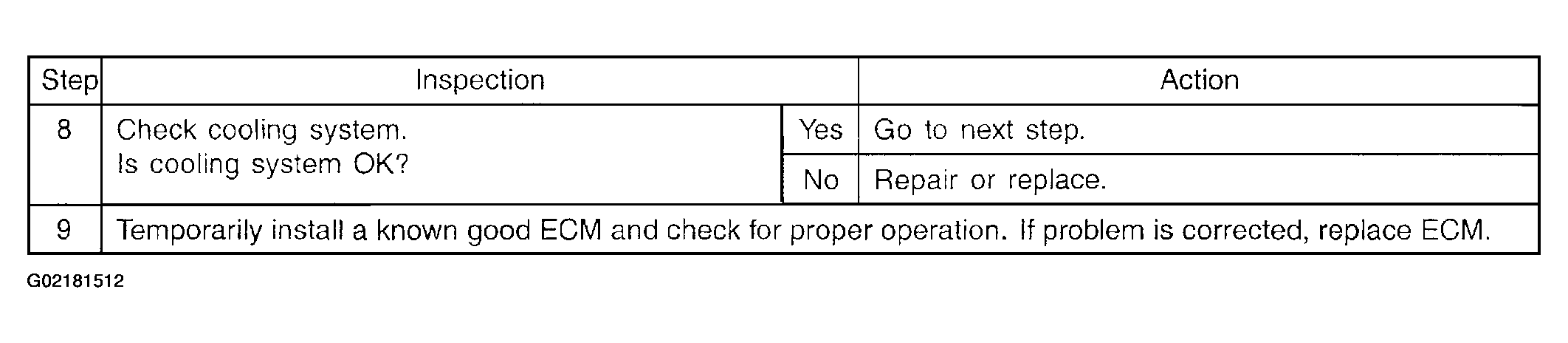

Fig 3: Inspection/Action Chart (2 Of 2)
G02181512Courtesy of KIA MOTORS AMERICA, INC.
