Lack Of Power

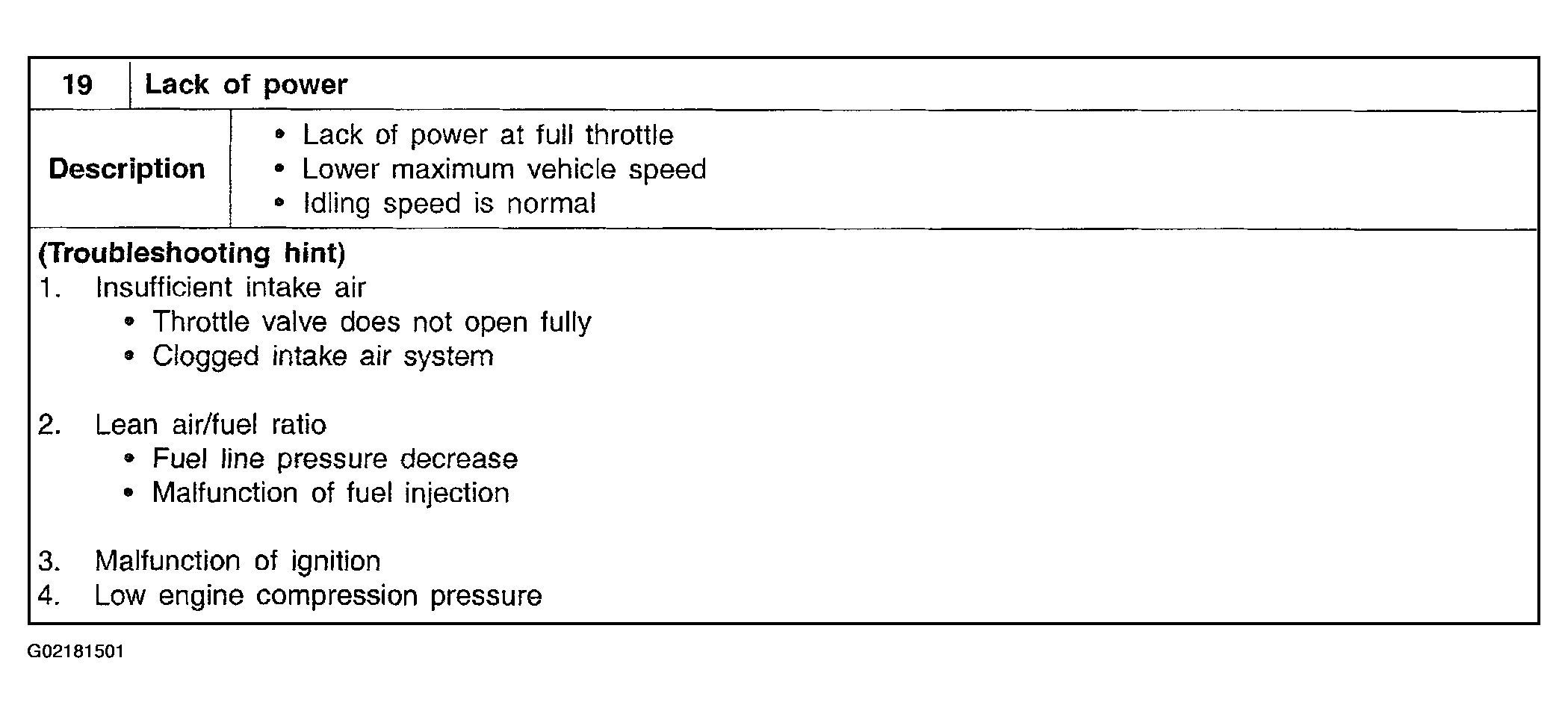

Fig 1: Description
G02181501Courtesy of KIA MOTORS AMERICA, INC.

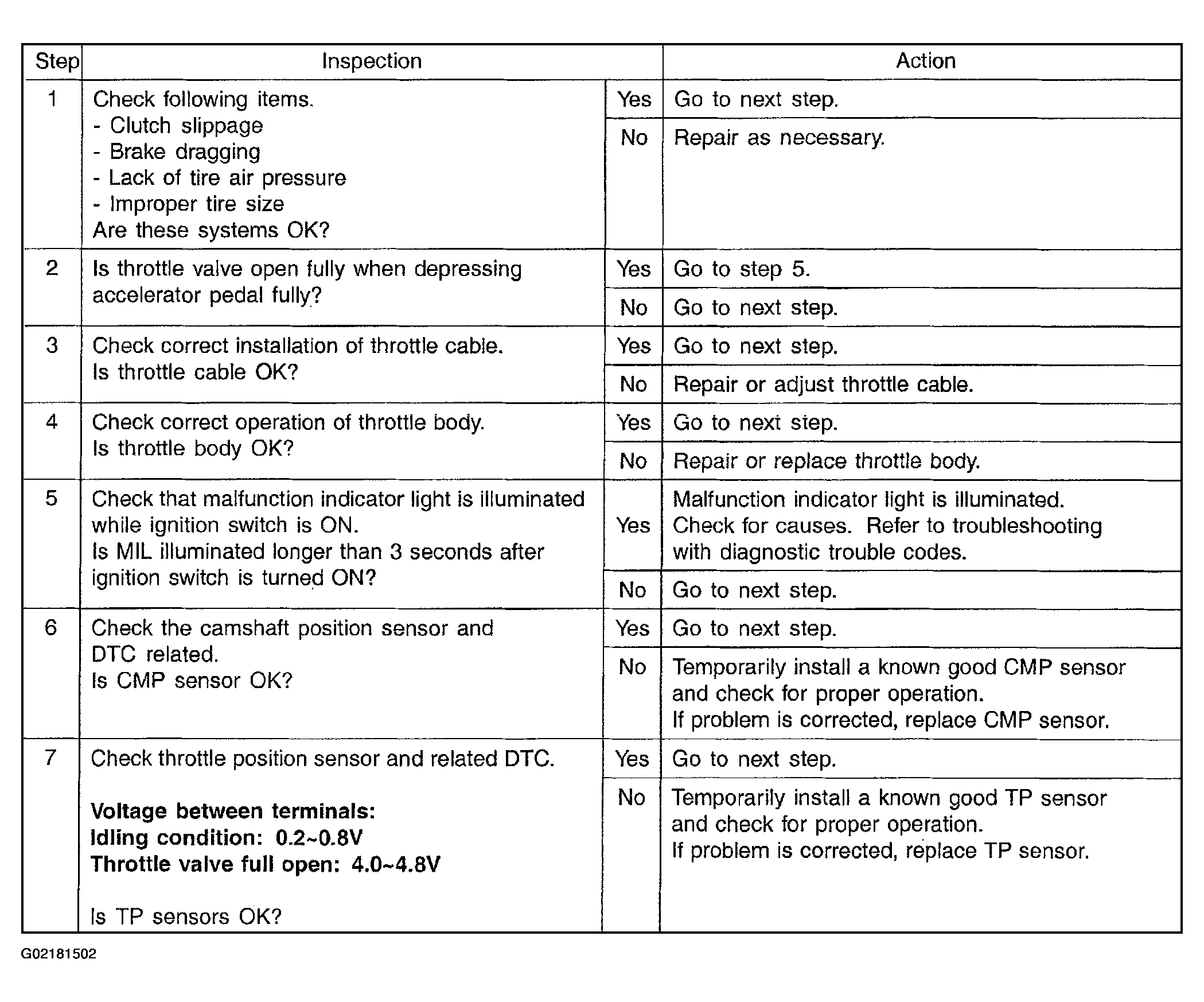

Fig 2: Inspection/Action Chart (1 Of 2)
G02181502Courtesy of KIA MOTORS AMERICA, INC.

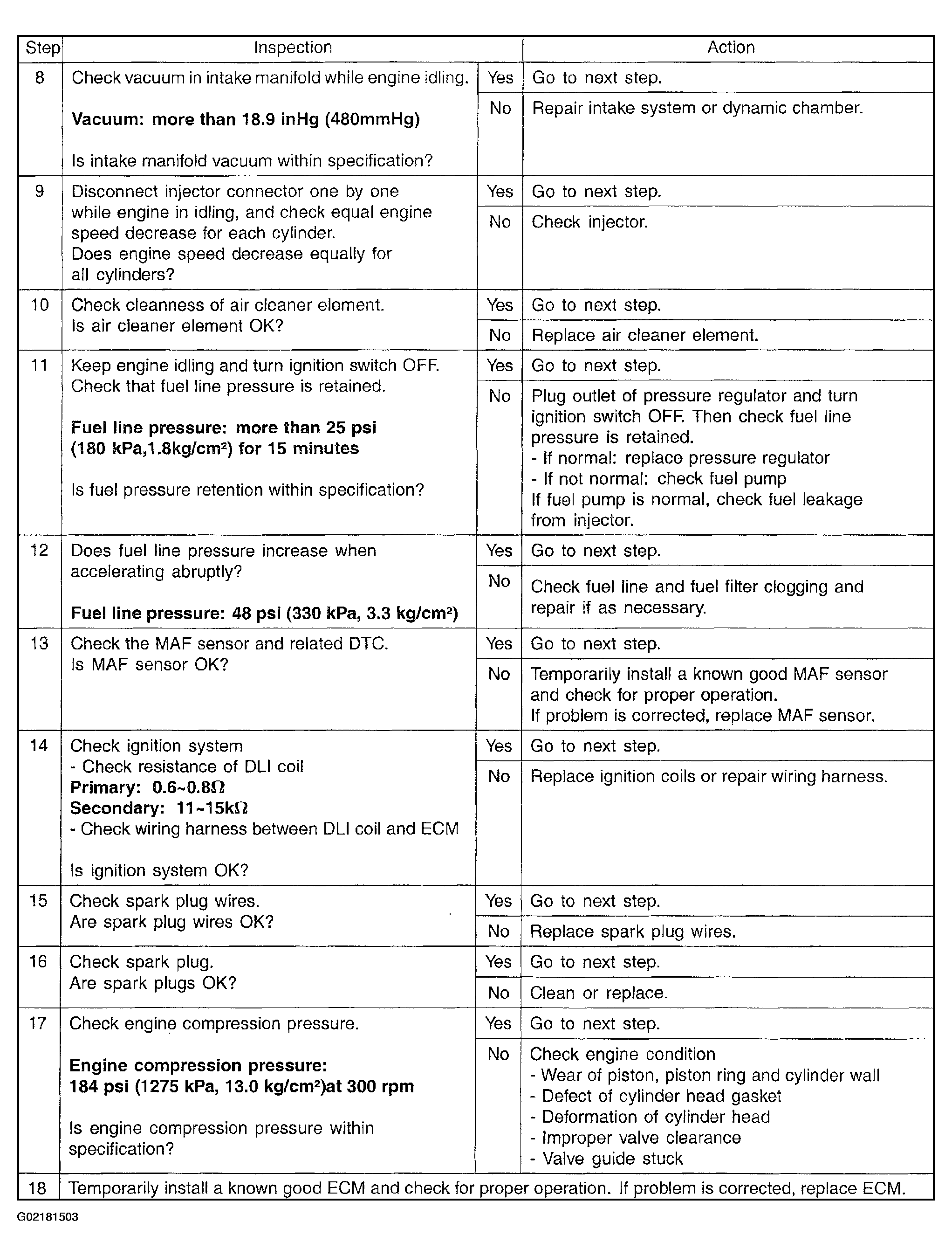

Fig 3: Inspection/Action Chart (2 Of 2)
G02181503Courtesy of KIA MOTORS AMERICA, INC.
