Stumble/Hesitation On Acceleration

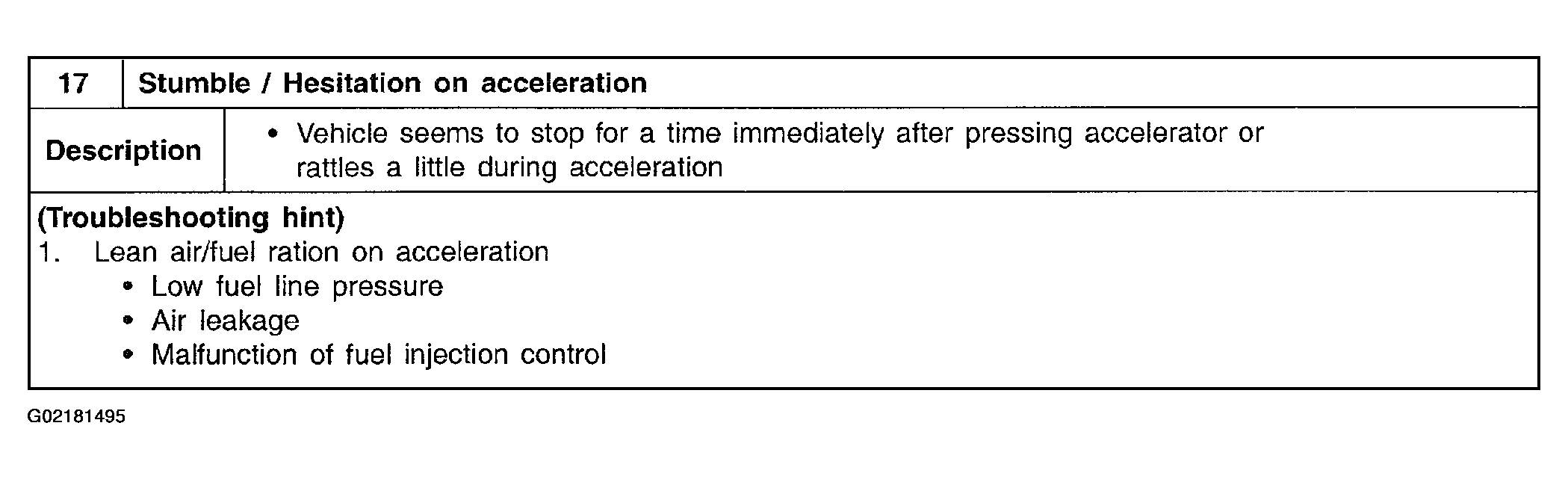

Fig 1: Description
G02181495Courtesy of KIA MOTORS AMERICA, INC.

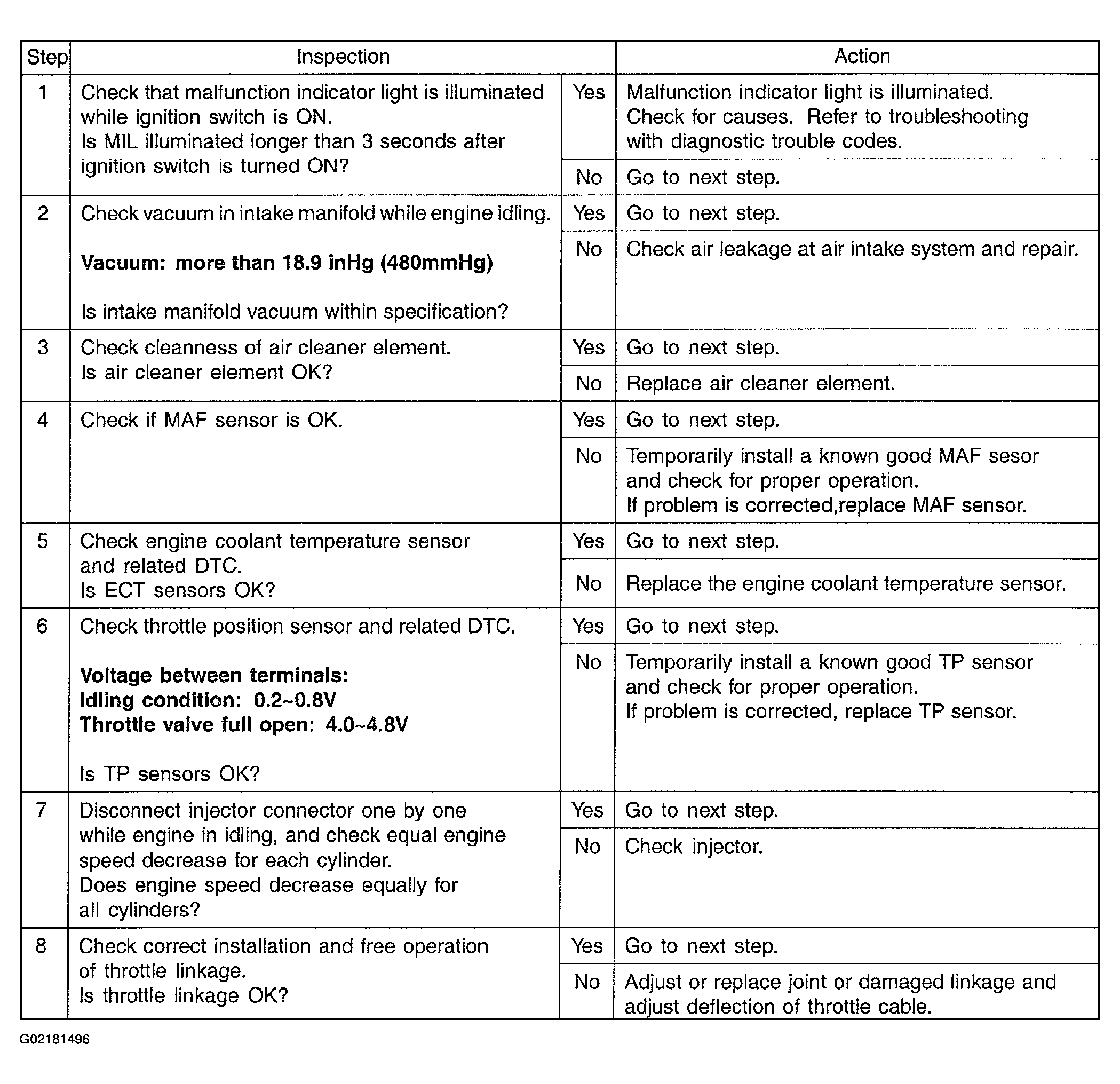

Fig 2: Inspection/Action Chart (1 Of 2)
G02181496Courtesy of KIA MOTORS AMERICA, INC.

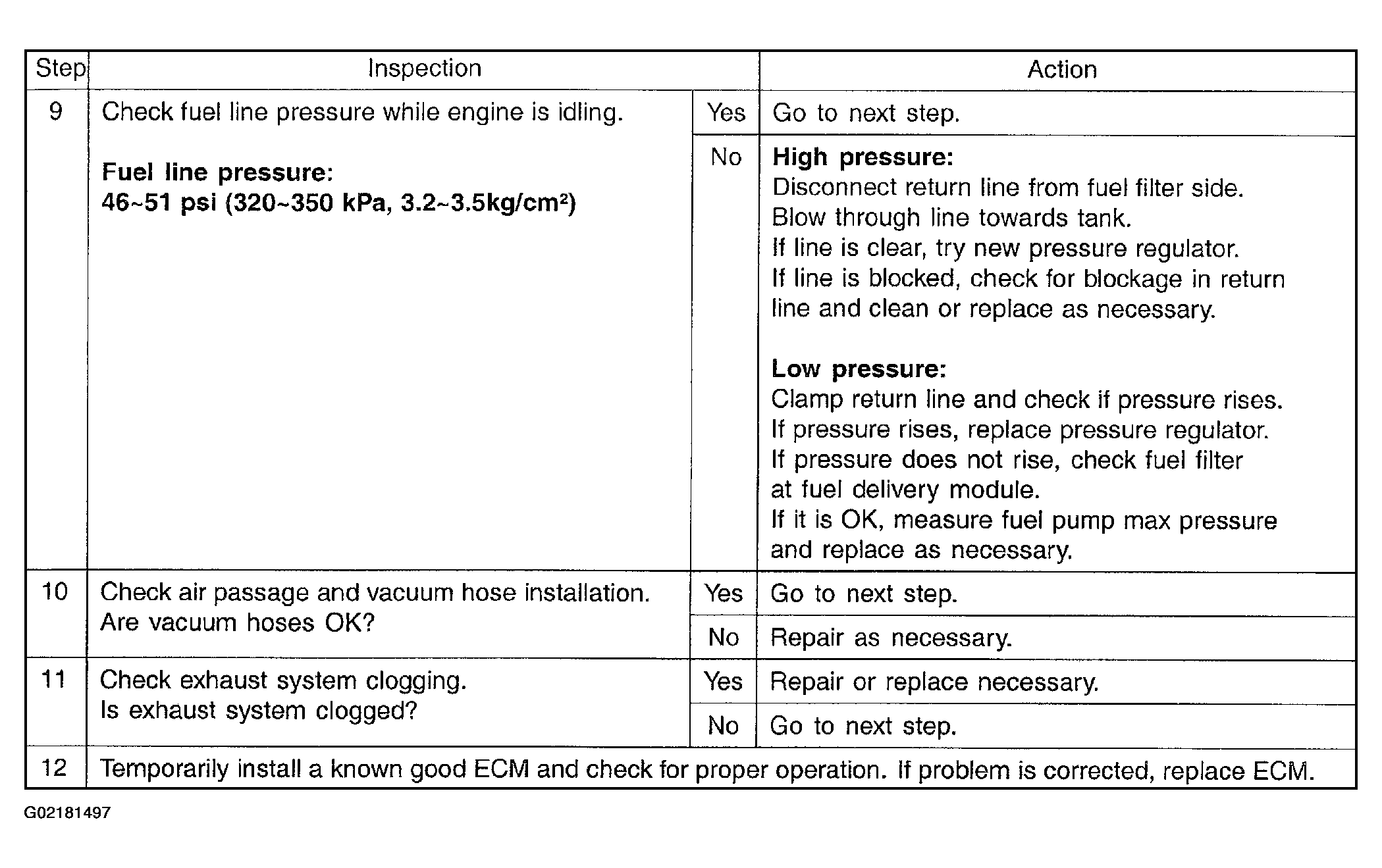

Fig 3: Inspection/Action Chart (2 Of 2)
G02181497Courtesy of KIA MOTORS AMERICA, INC.
