Oxygen Sensor (O2S): Installation

  1. Install heated oxygen sensor and washer.

    Tightening Torque: 22-36 lb.ft (30~49 N.m, 3~5 kg.m)

  2. Reconnect heated oxygen sensor connector.

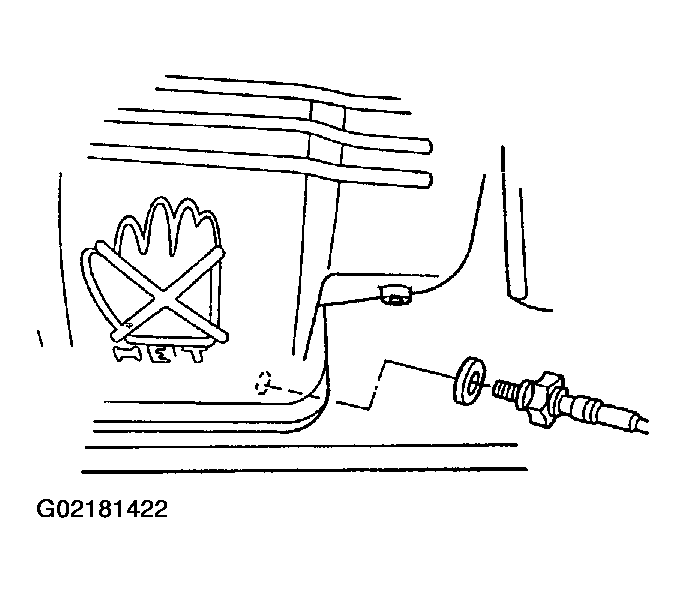

    Fig 1: Installing Heated Oxygen Sensor
    G02181422Courtesy of KIA MOTORS AMERICA, INC.
