Component Description Tables

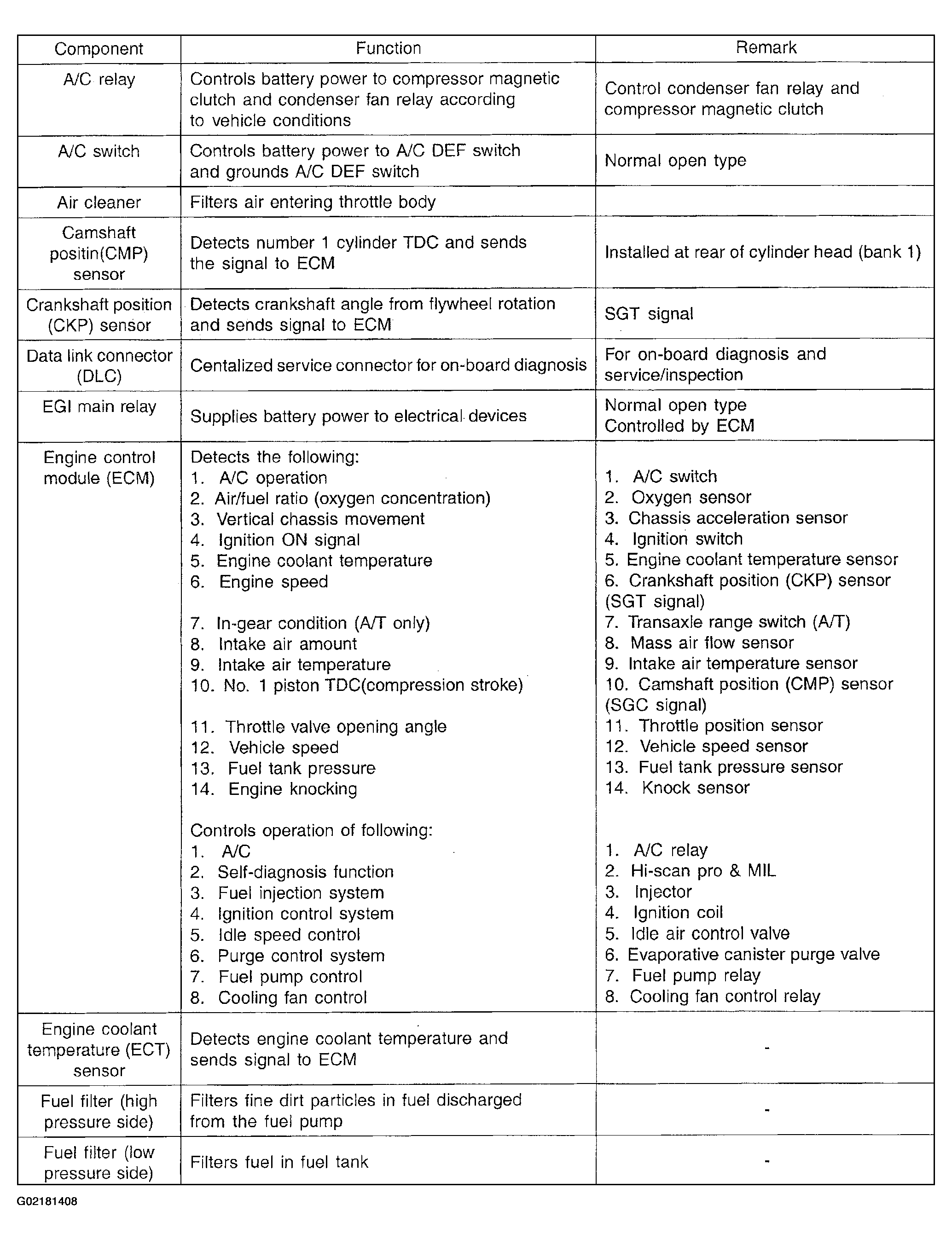

Fig 1: Component Description Table (1 Of 2)
G02181408Courtesy of KIA MOTORS AMERICA, INC.

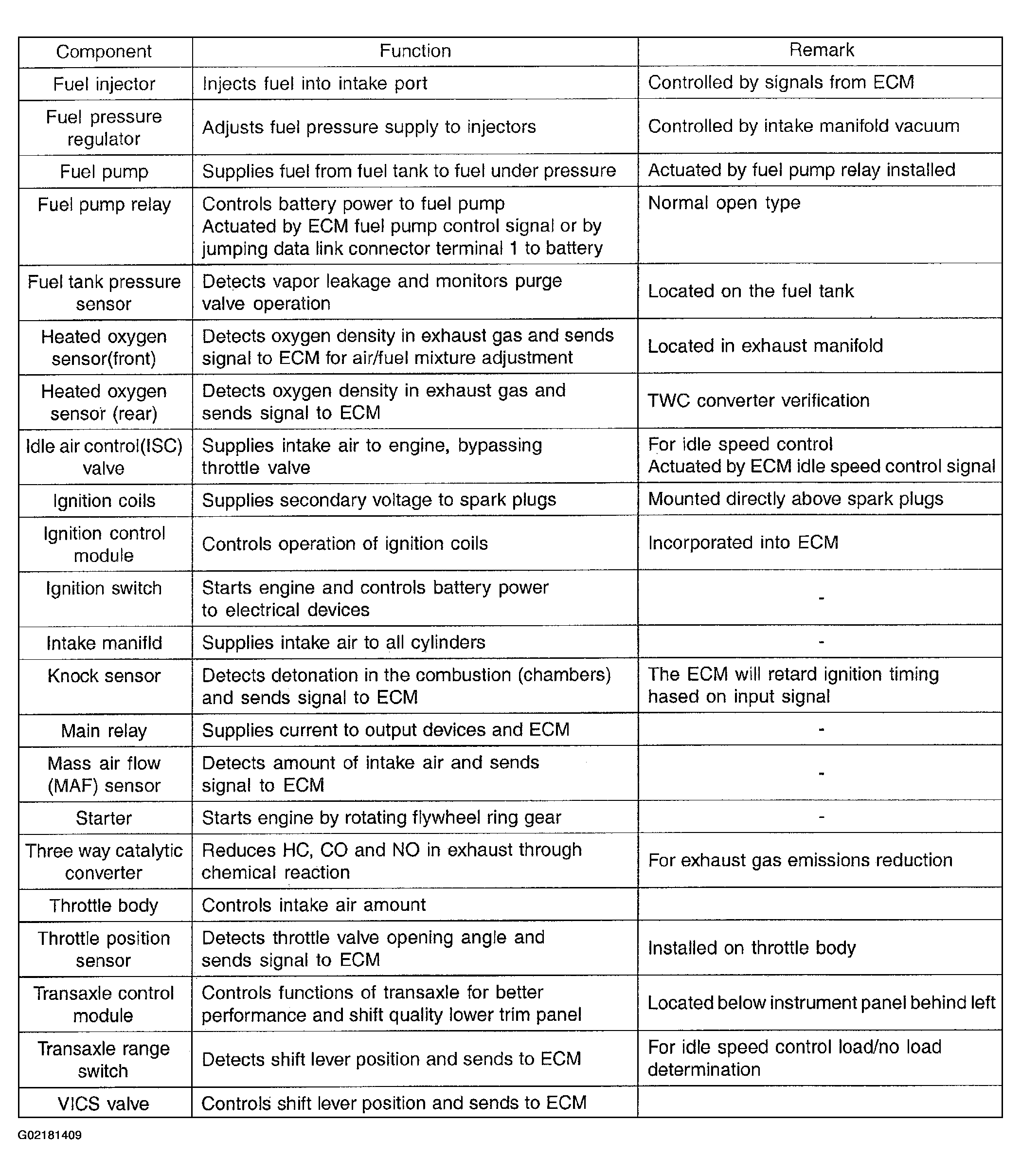

Fig 2: Component Description Table (2 Of 2)
G02181409Courtesy of KIA MOTORS AMERICA, INC.
