DTC P0501: Vehicle Speed Sensor Range Performance
>>
Inspection/Repair
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

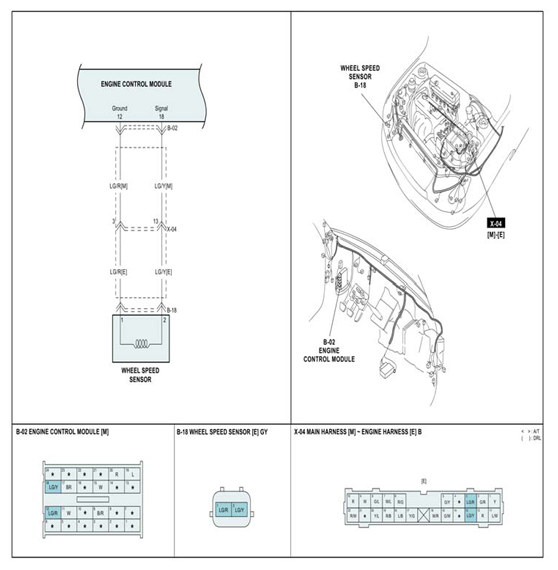

Fig 1: Wheel Speed Sensor - Schematic Diagram
