When Engine Is Warm

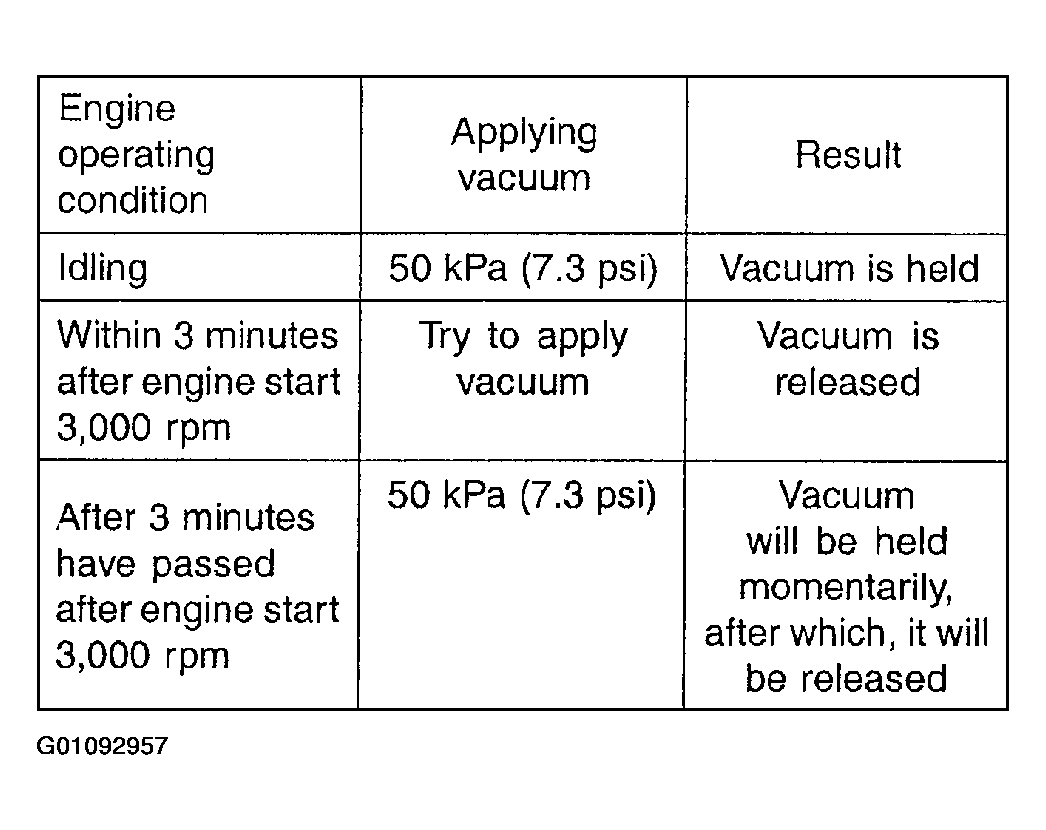

Fig 1: Vacuum Testing Chart (Warm)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
