Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System
>>
ECM Connector & Terminal Information
>>
ECM Terminal Layout
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
ECM Terminal Layout

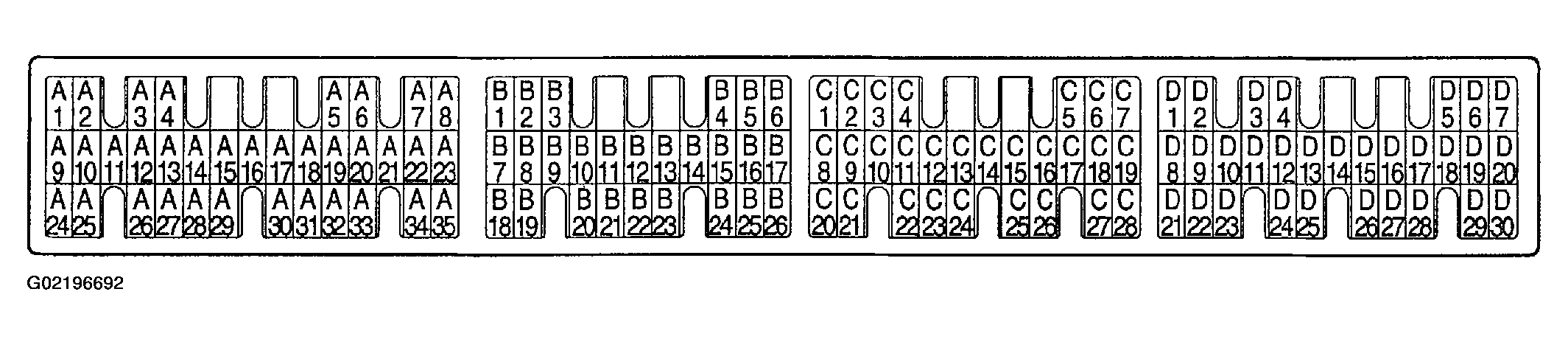

Fig 1: ECM Terminal Layout
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
