Special Service Tools

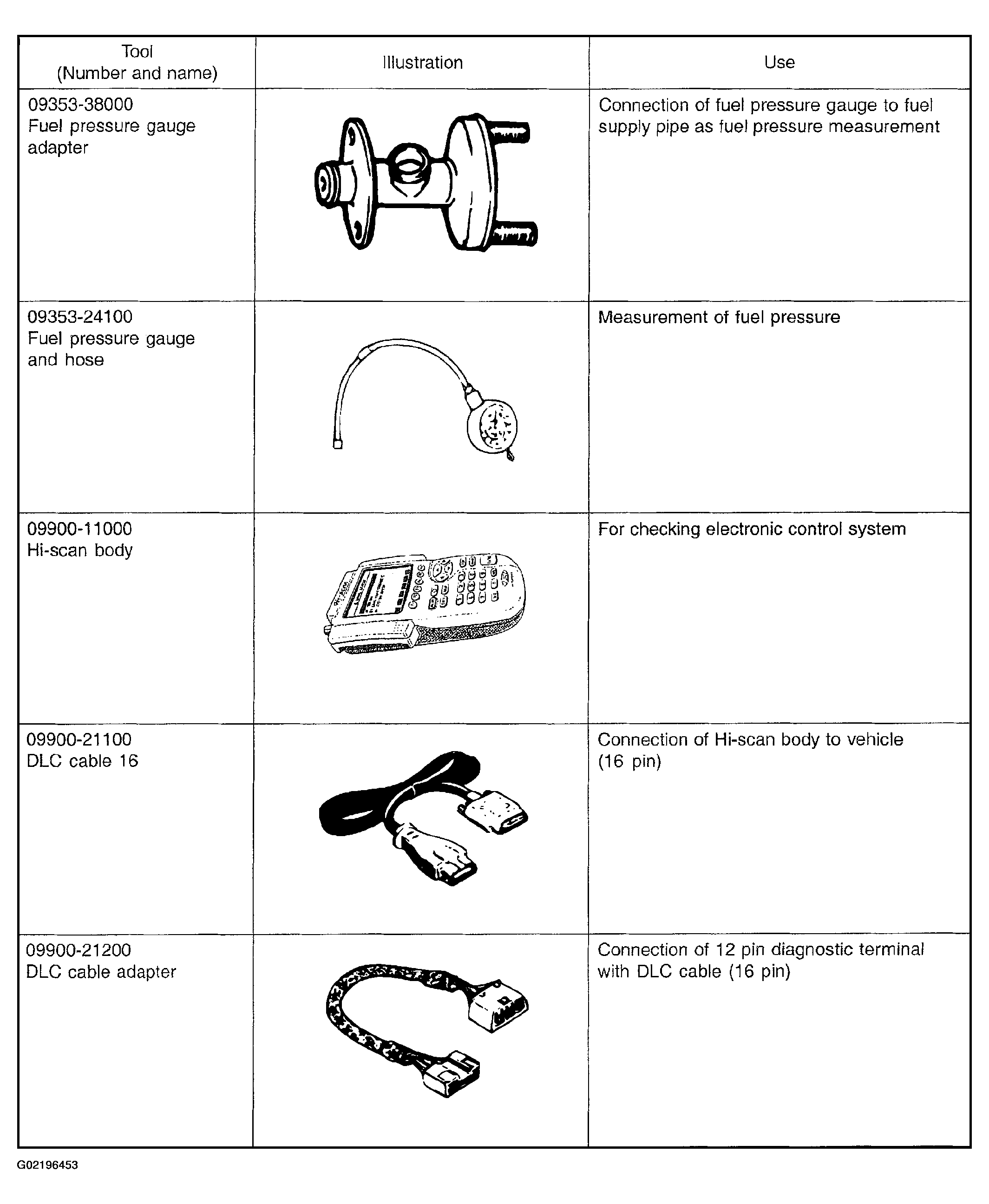

Fig 1: Illustrating Service Tools (1 Of 2)
G02196453Courtesy of KIA MOTORS AMERICA, INC.

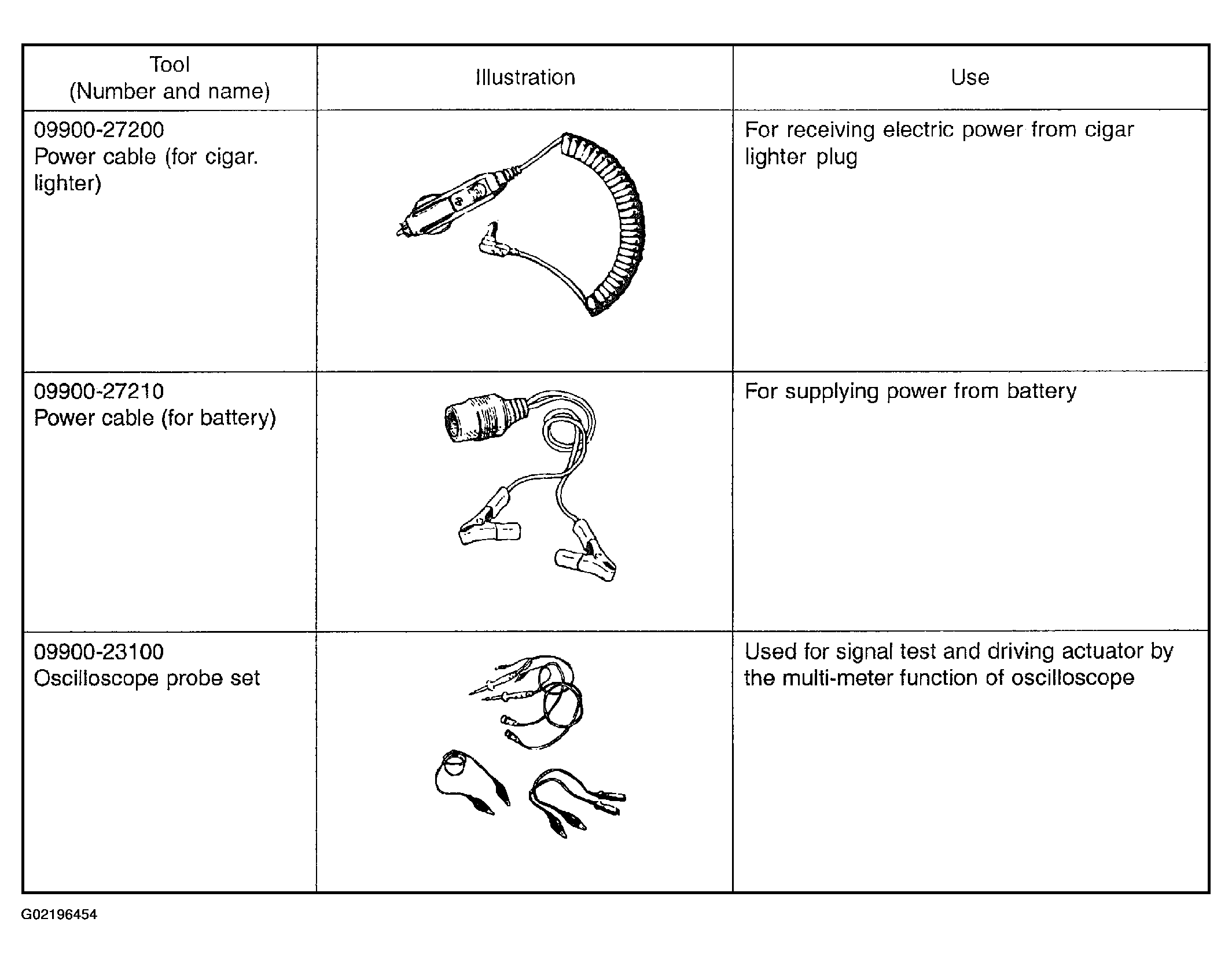

Fig 2: Illustrating Service Tools (2 Of 2)
G02196454Courtesy of KIA MOTORS AMERICA, INC.
