Actuator Test Reference Table

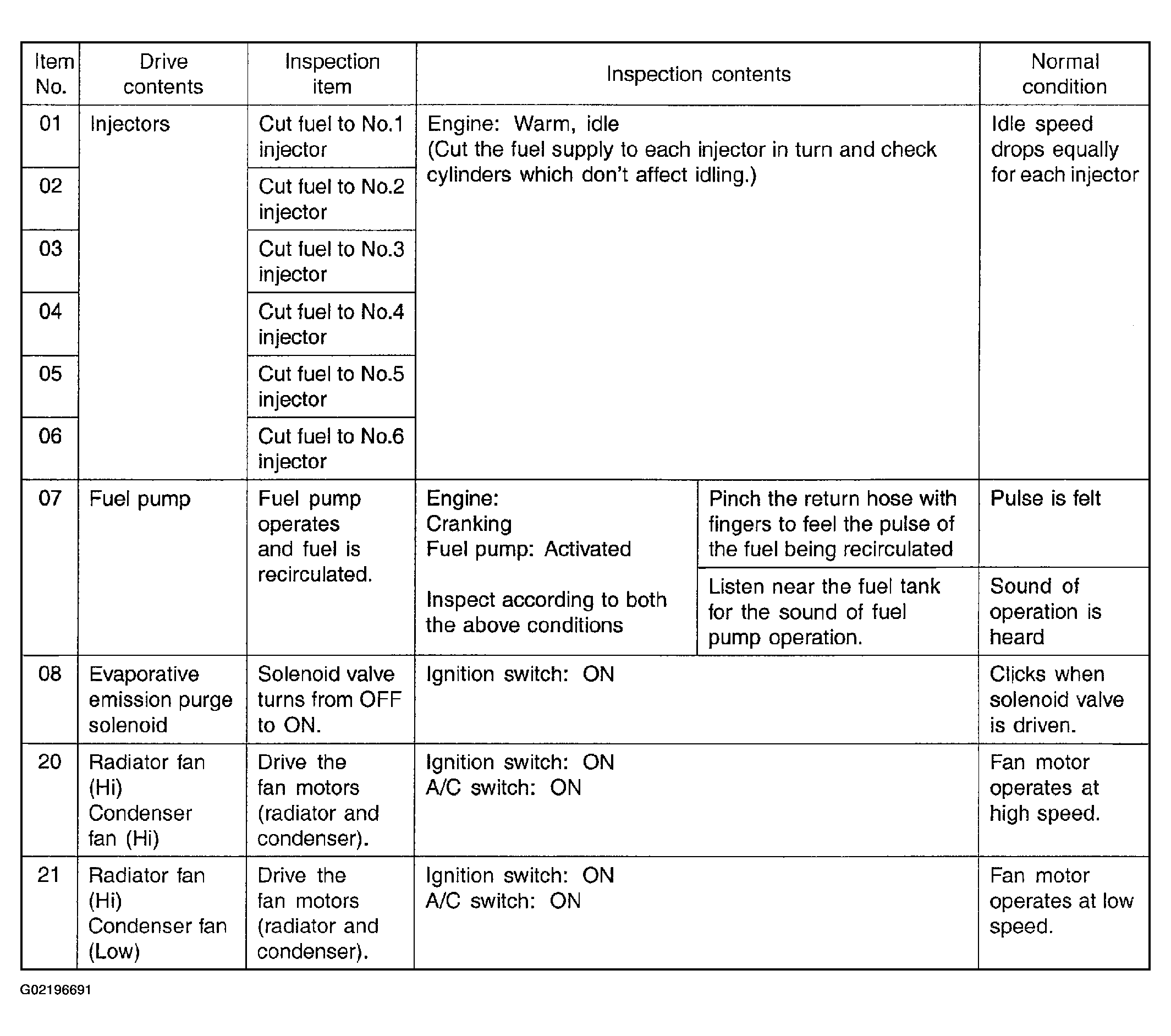

Fig 1: Actuator Test Reference Table
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
