Using Hi Scan

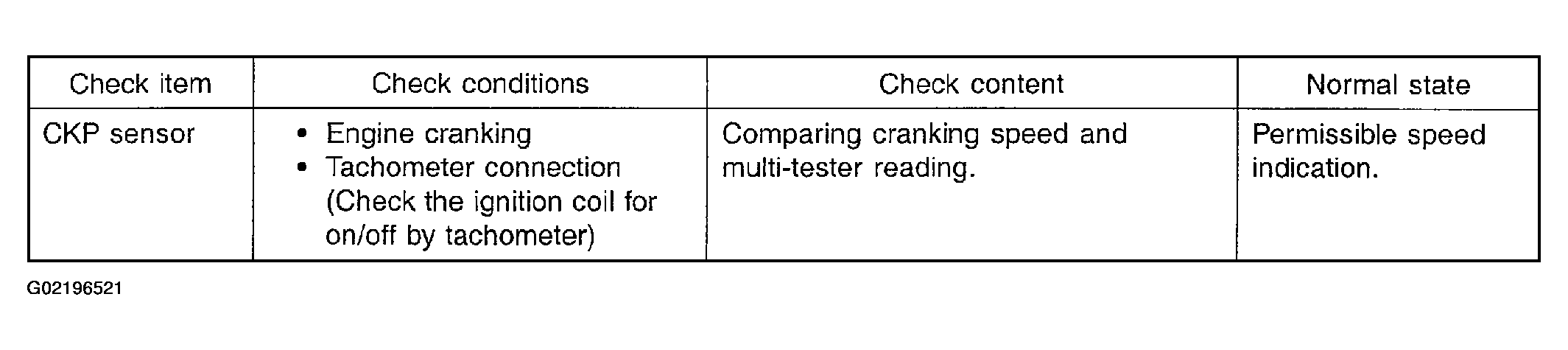

Fig 1: CKP Sensor Condition & Content Chart
G02196521Courtesy of KIA MOTORS AMERICA, INC.

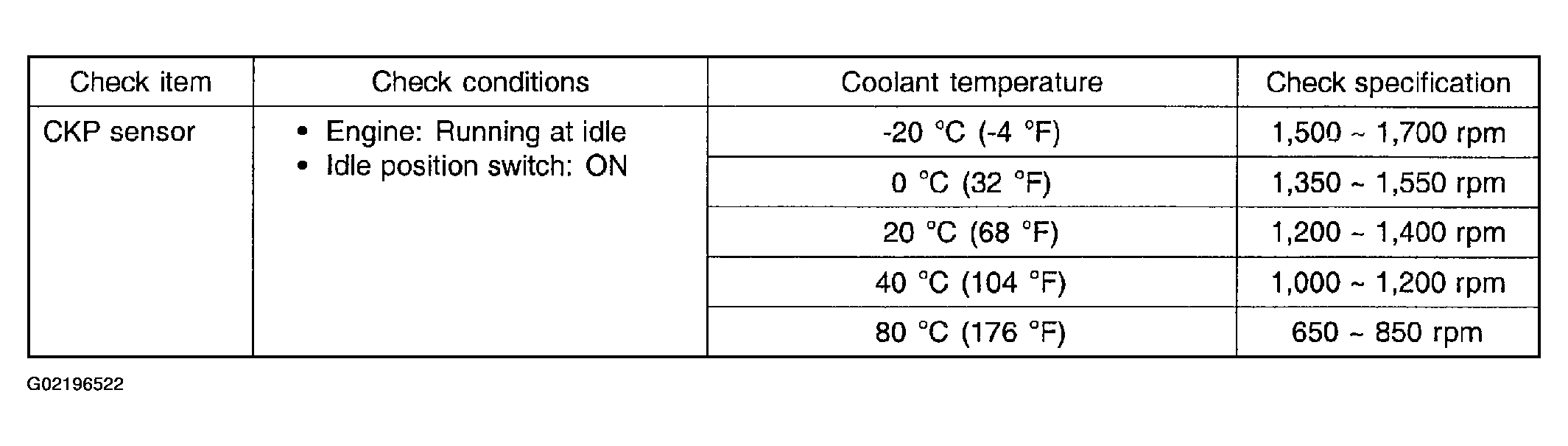

Fig 2: CKP Sensor Coolant To RPM Chart
G02196522Courtesy of KIA MOTORS AMERICA, INC.
