Heated Oxygen Sensor (Ho2S): Testing: Notes

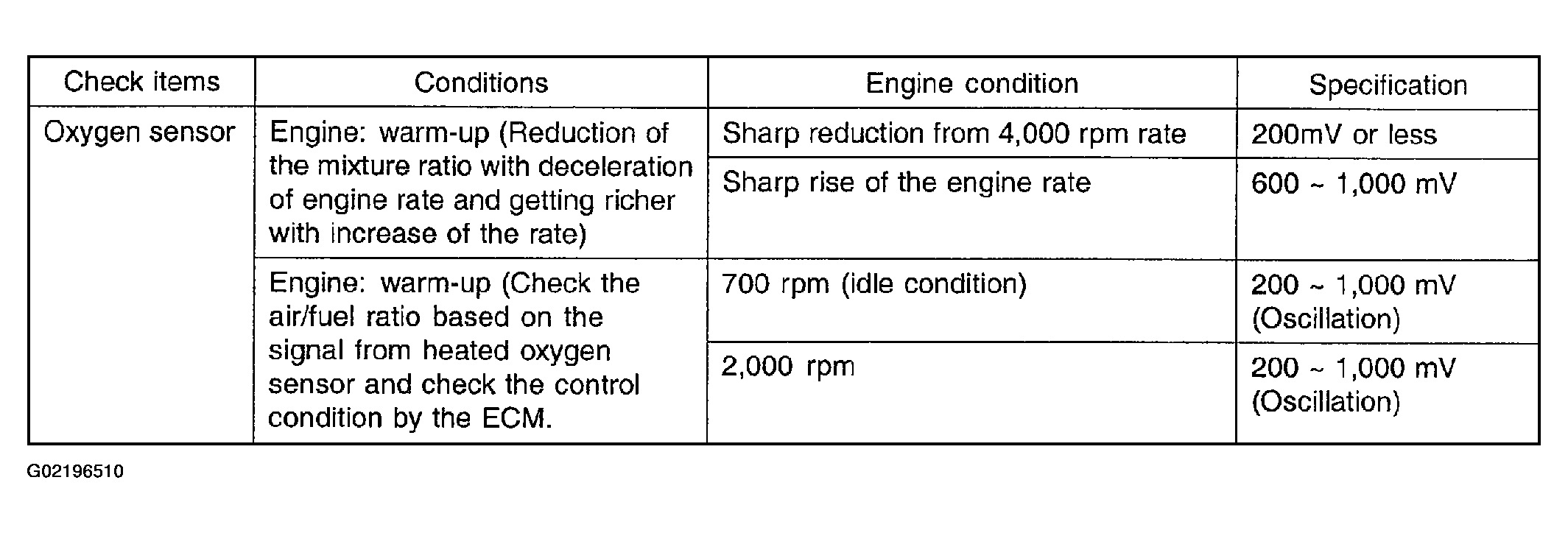

Fig 1: Illustrating GST Voltage Specifications
G02196510Courtesy of KIA MOTORS AMERICA, INC.
