Ignition Coil: Notes

The ignition coil is of the type of ignition order of (#1/#4), (#2/#5), (#3/#6) and is controlled by the power TR built in the ECM.

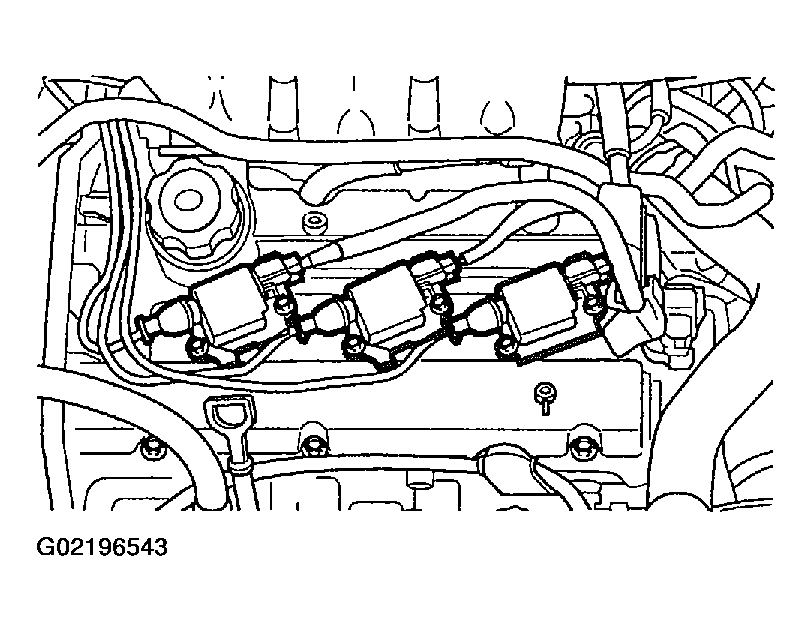

Fig 1: Locating Ignition Coils

Courtesy of KIA MOTORS AMERICA, INC.
