Inlet Air Temperature (IAT) Sensor: Testing

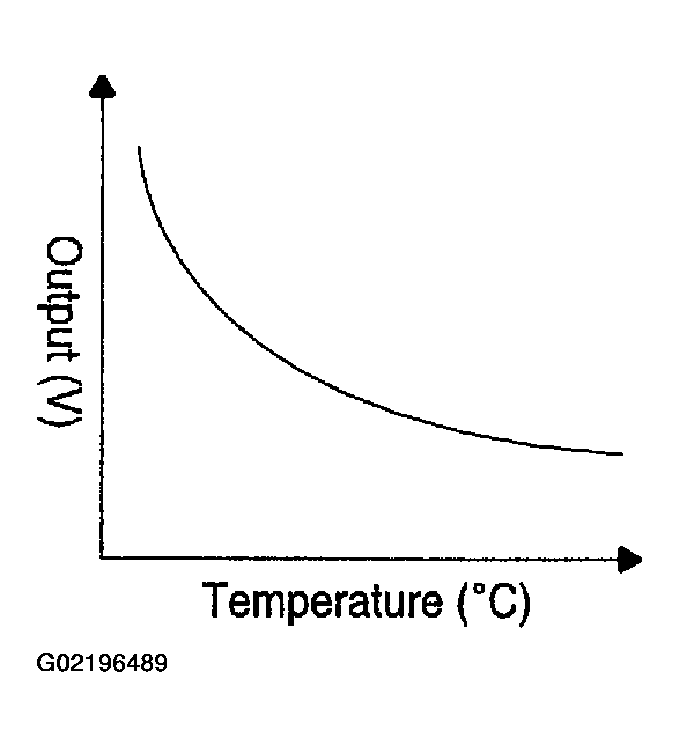

Fig 1: IAT Sensor Voltage Graph
G02196489Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: IAT Sensor Voltage Chart
G02196490Courtesy of KIA MOTORS AMERICA, INC.
