Manifold Air Flow Sensor (MAFS): Testing

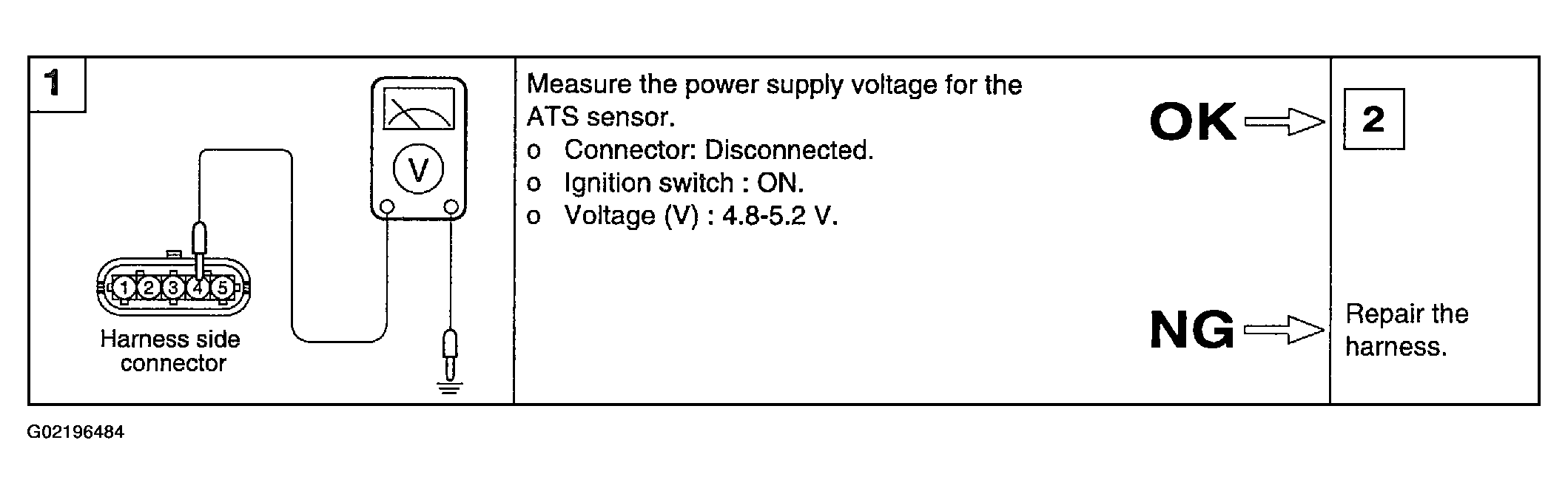

Fig 1: Harness Inspection (1 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

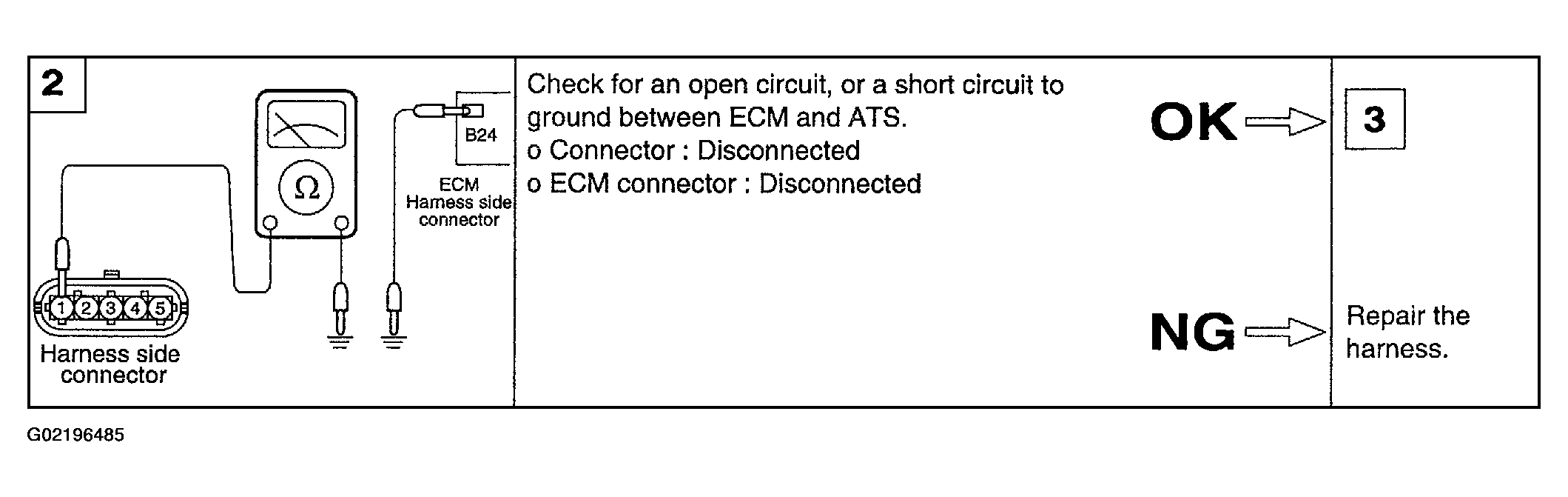

Fig 2: Harness Inspection (2 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

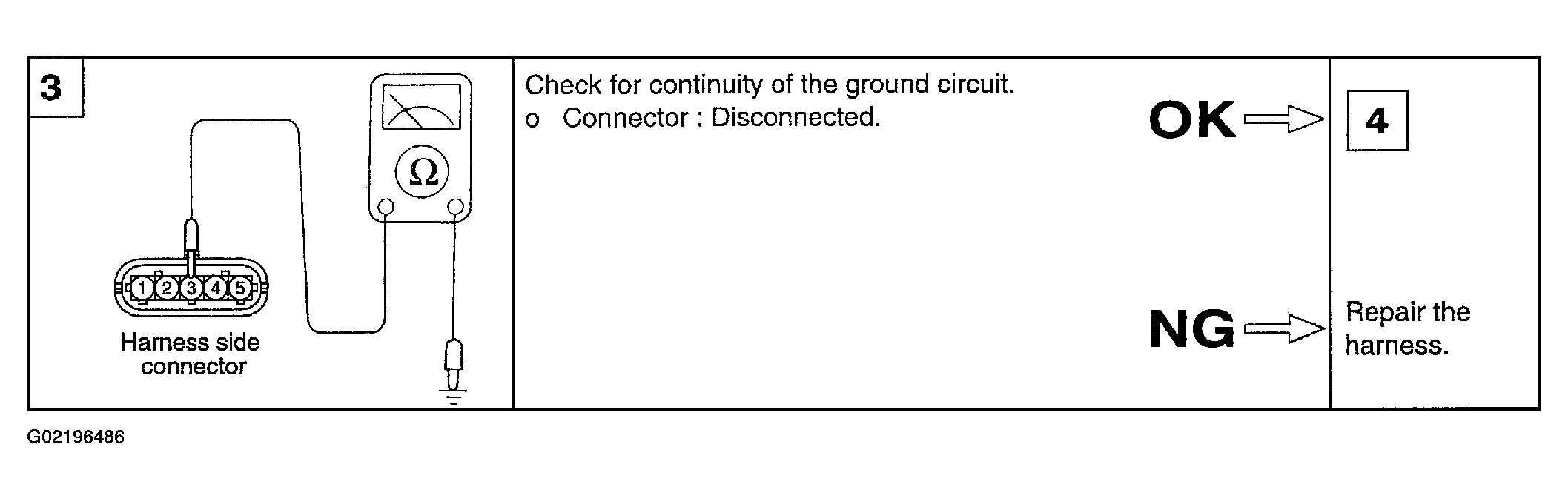

Fig 3: Harness Inspection (3 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

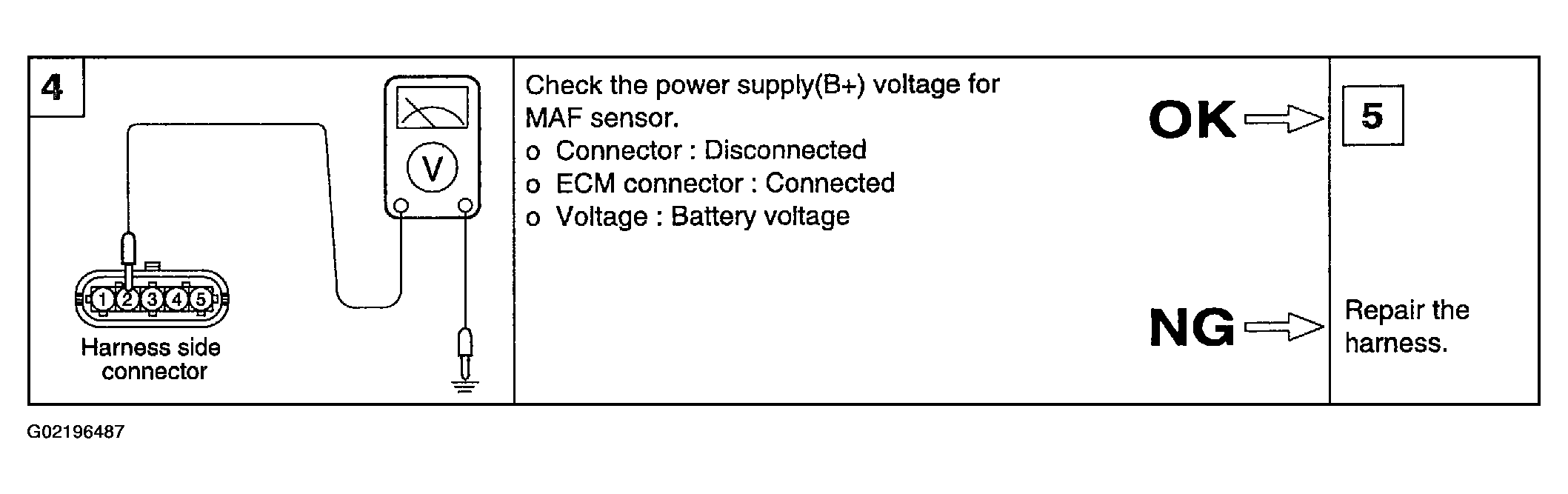

Fig 4: Harness Inspection (4 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

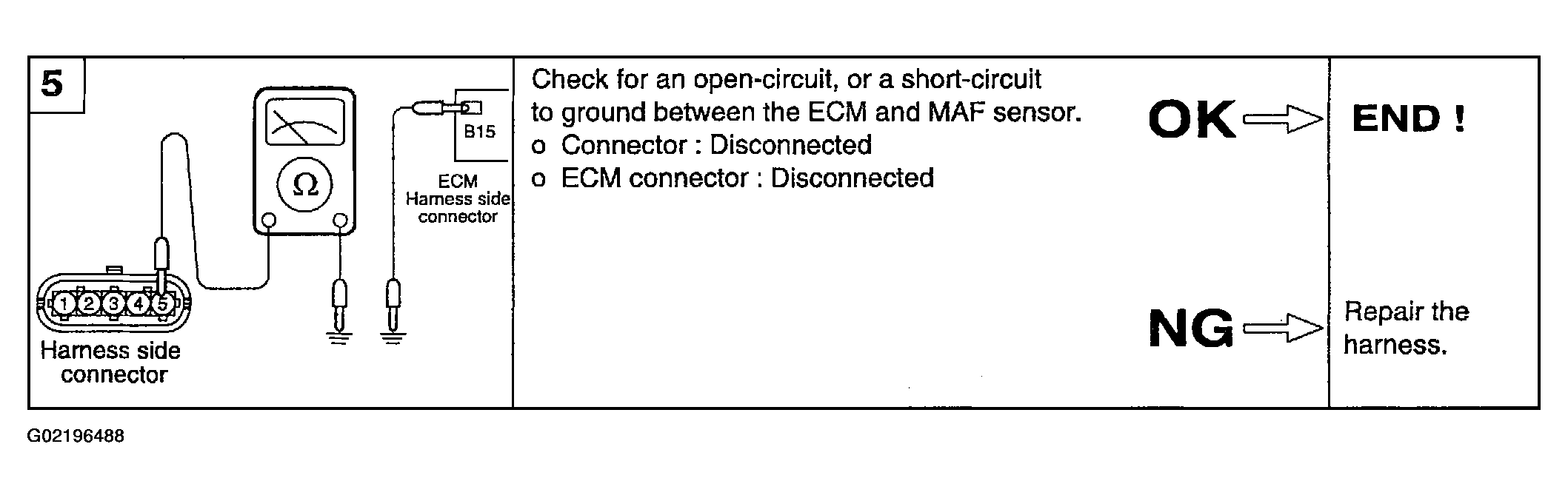

Fig 5: Harness Inspection (5 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.
