Component Tests and General Diagnostics

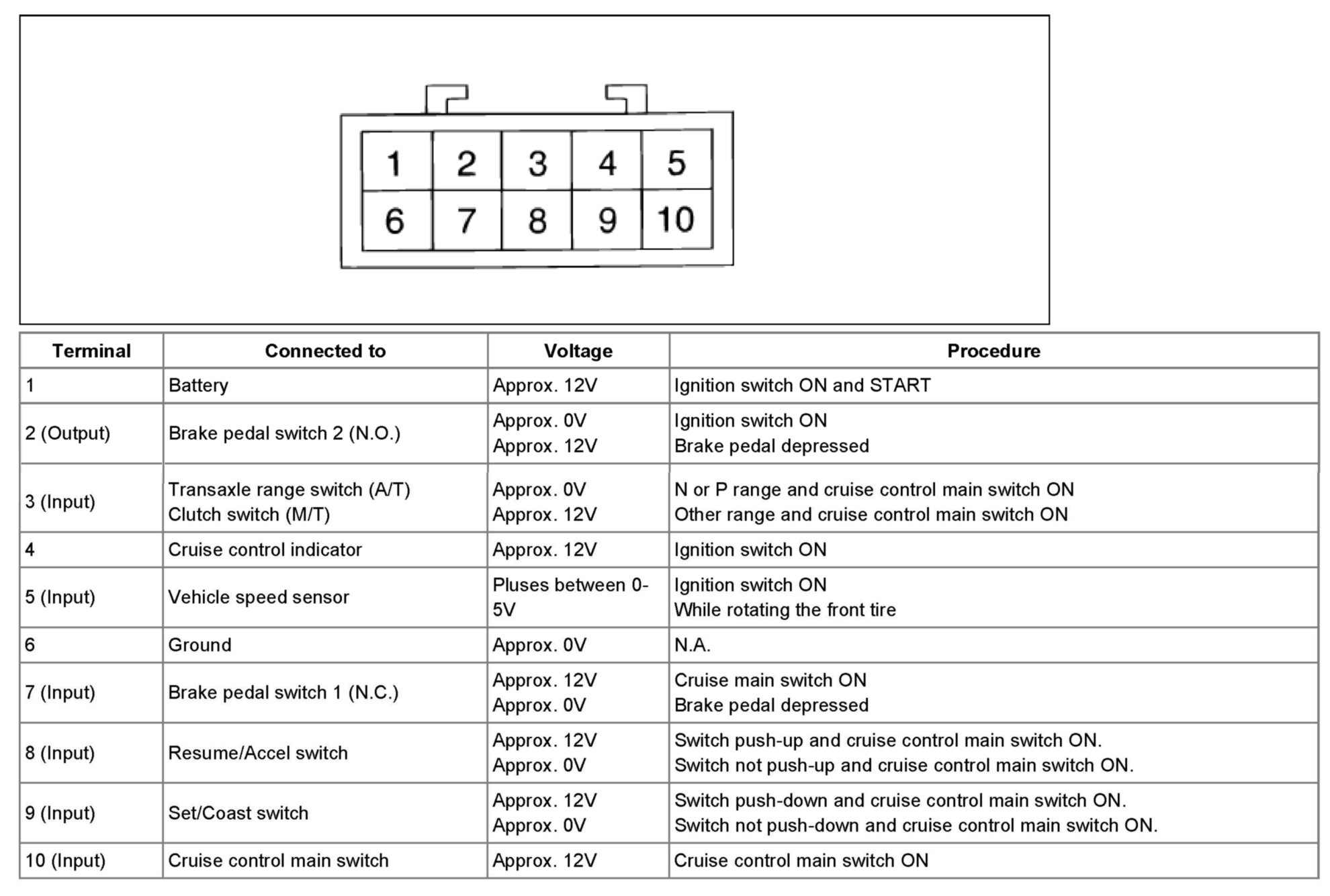

CRUISE CONTROL SYSTEM

INSPECTION
1. Connect a voltmeter between cruise control unit terminals and ground. (Connector Q01 connected)




2. Turn ignition switch "ON" and check that terminal voltages are as described.
