Manual Transmission/Transaxle
COMPONENTSSECTION VIEW

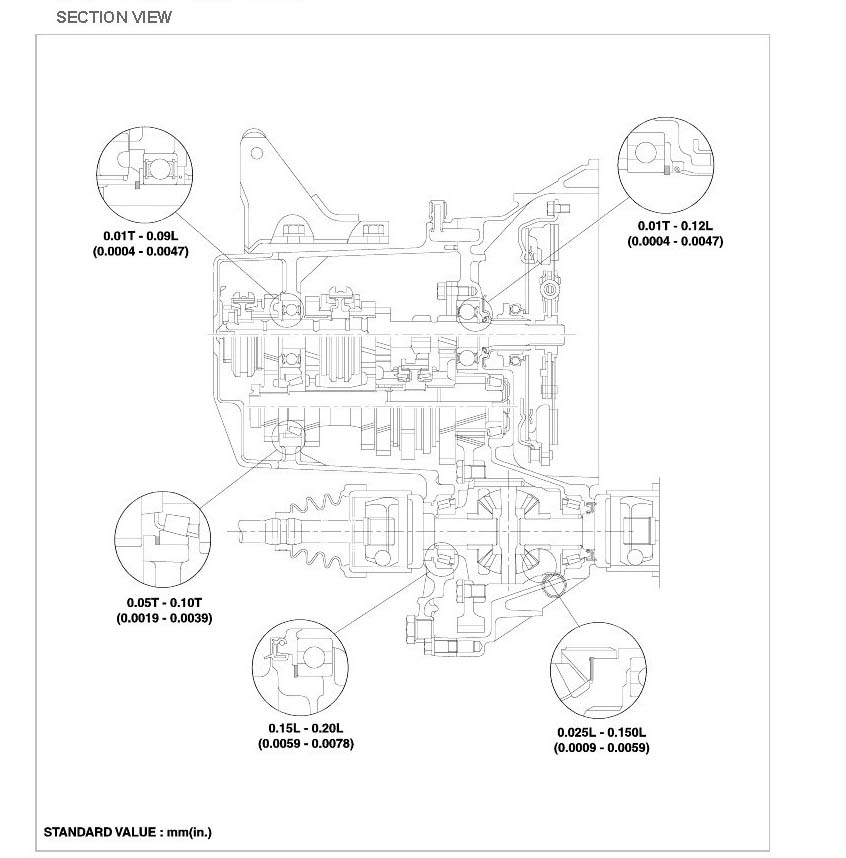

Section View:
COMPONENTS(1)

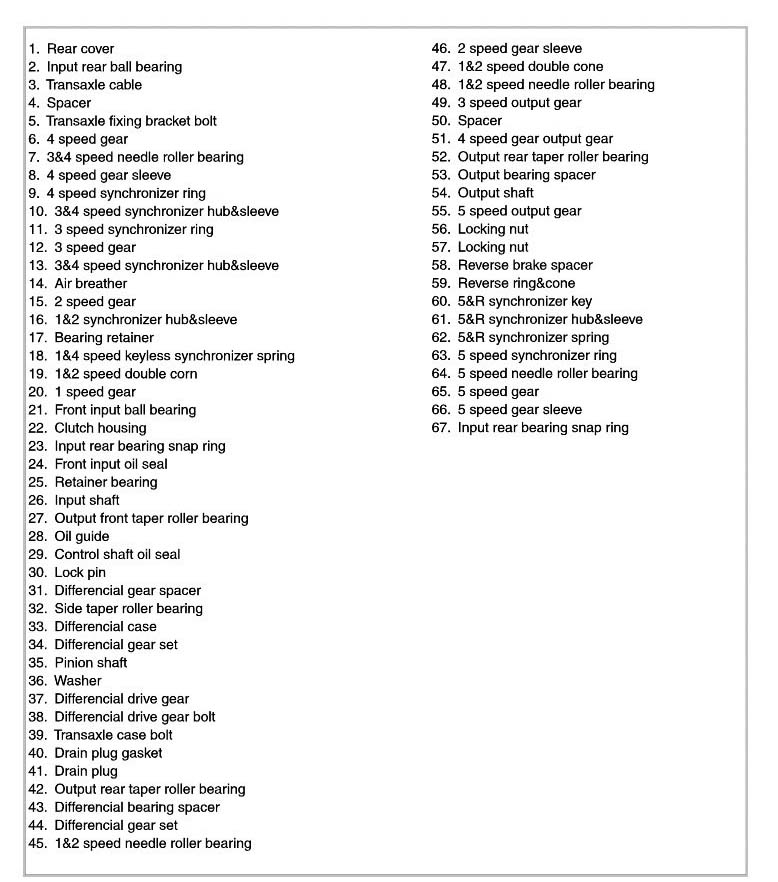

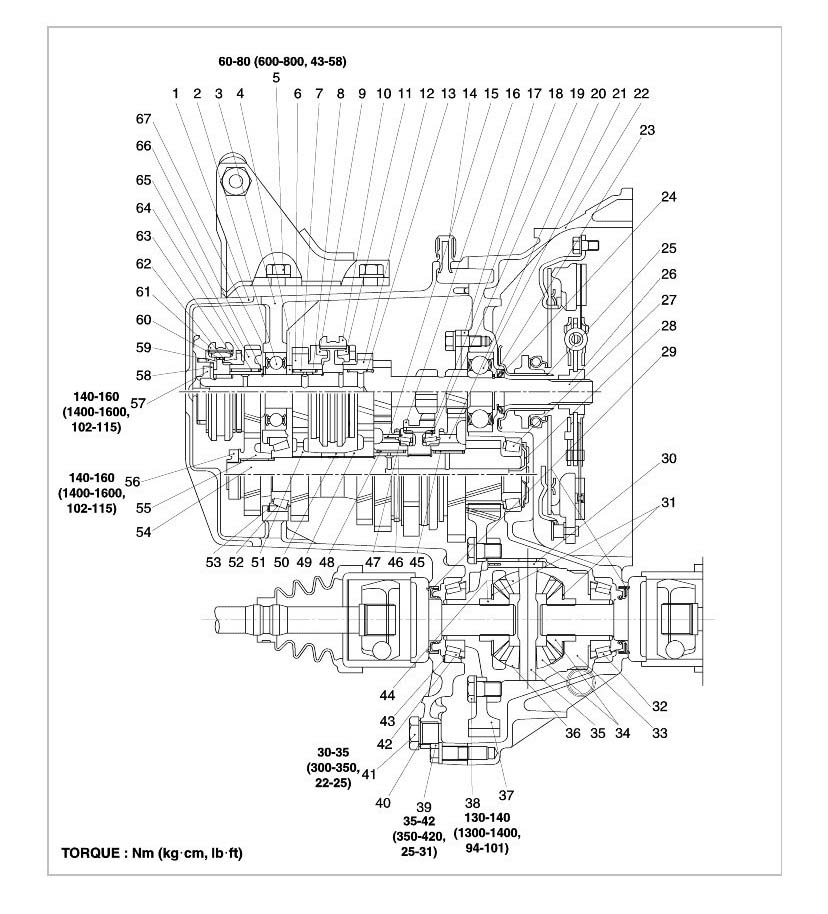

Components (1):
COMPONENTS(2)

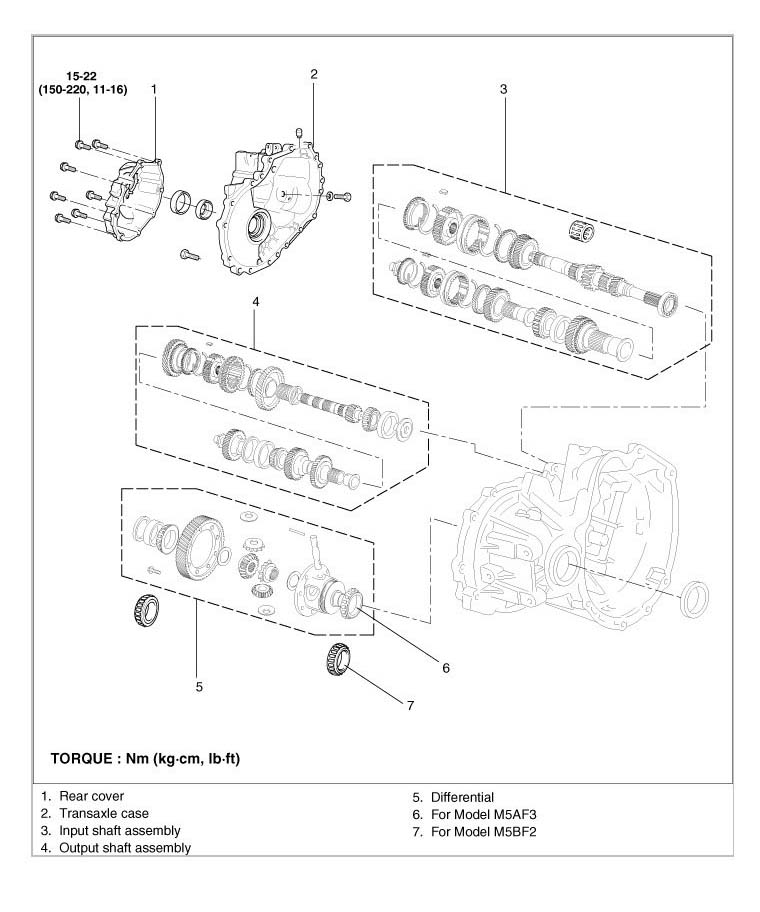

Components (2) (Part 1):
Components (2) (Part 2):
COMPONENTS(3)

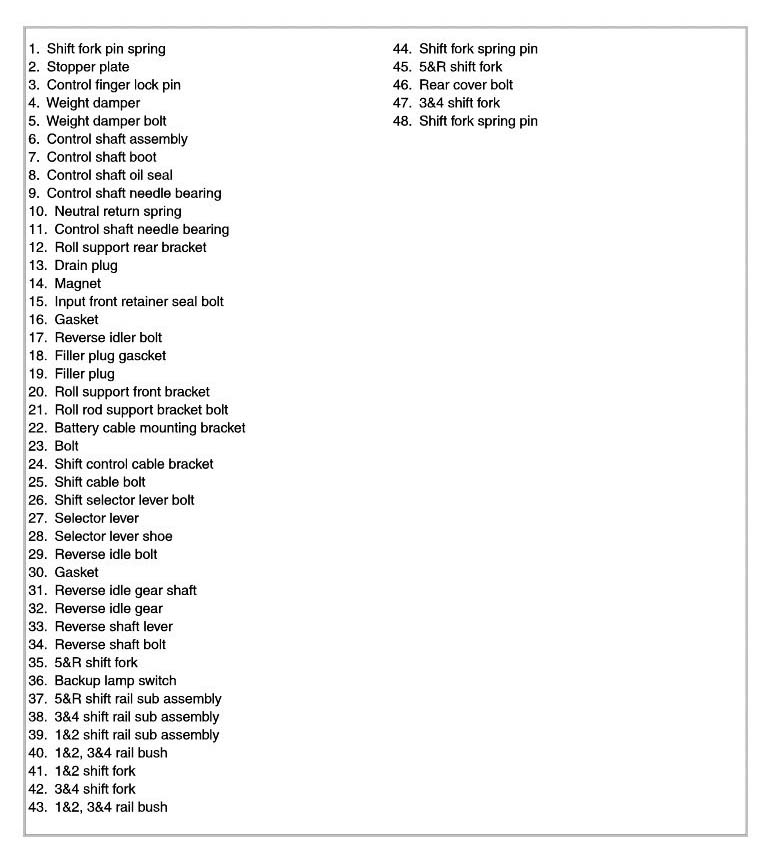

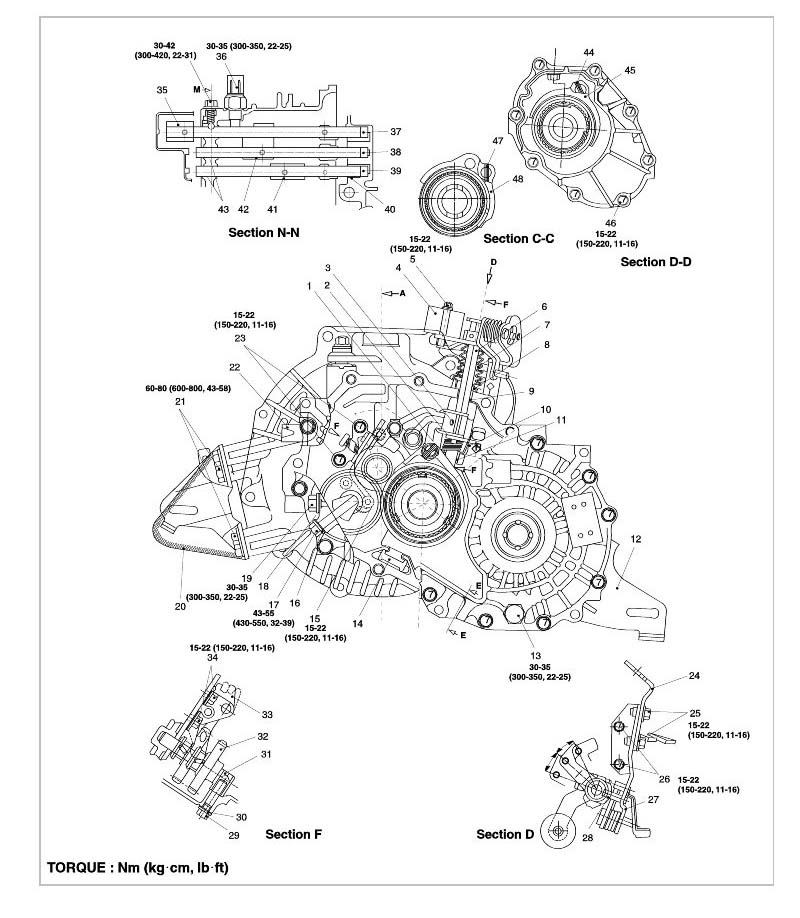

Components (3) (Part 1):
Components (3) (Part 2):
COMPONENTS(4)

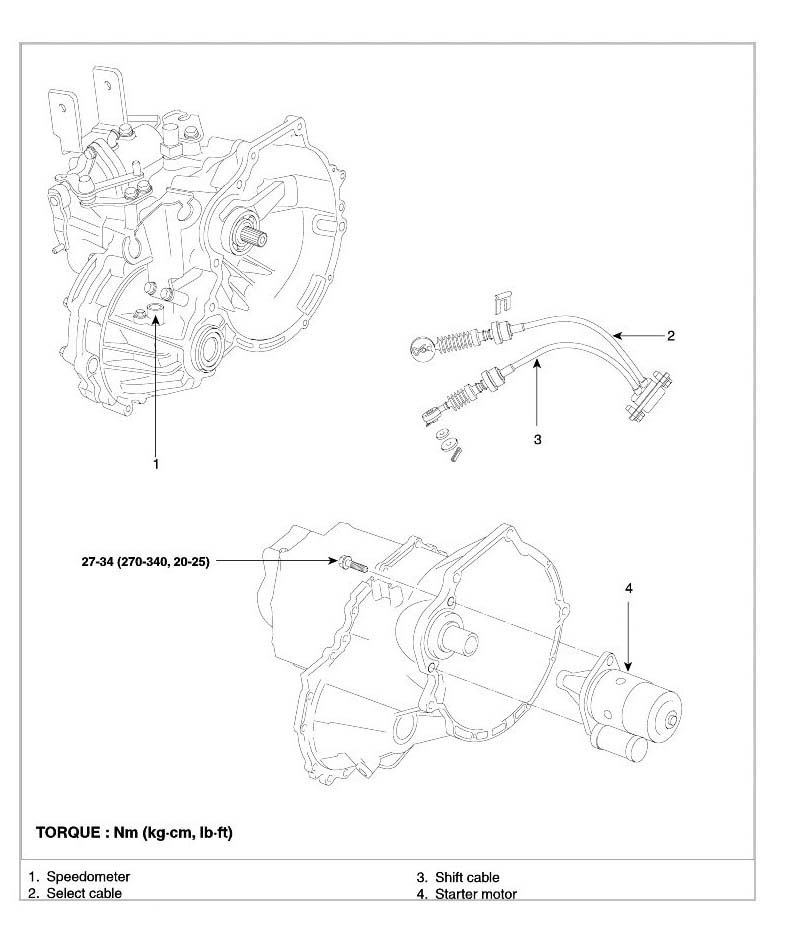

Components (4):
