Fuse Block: Locations

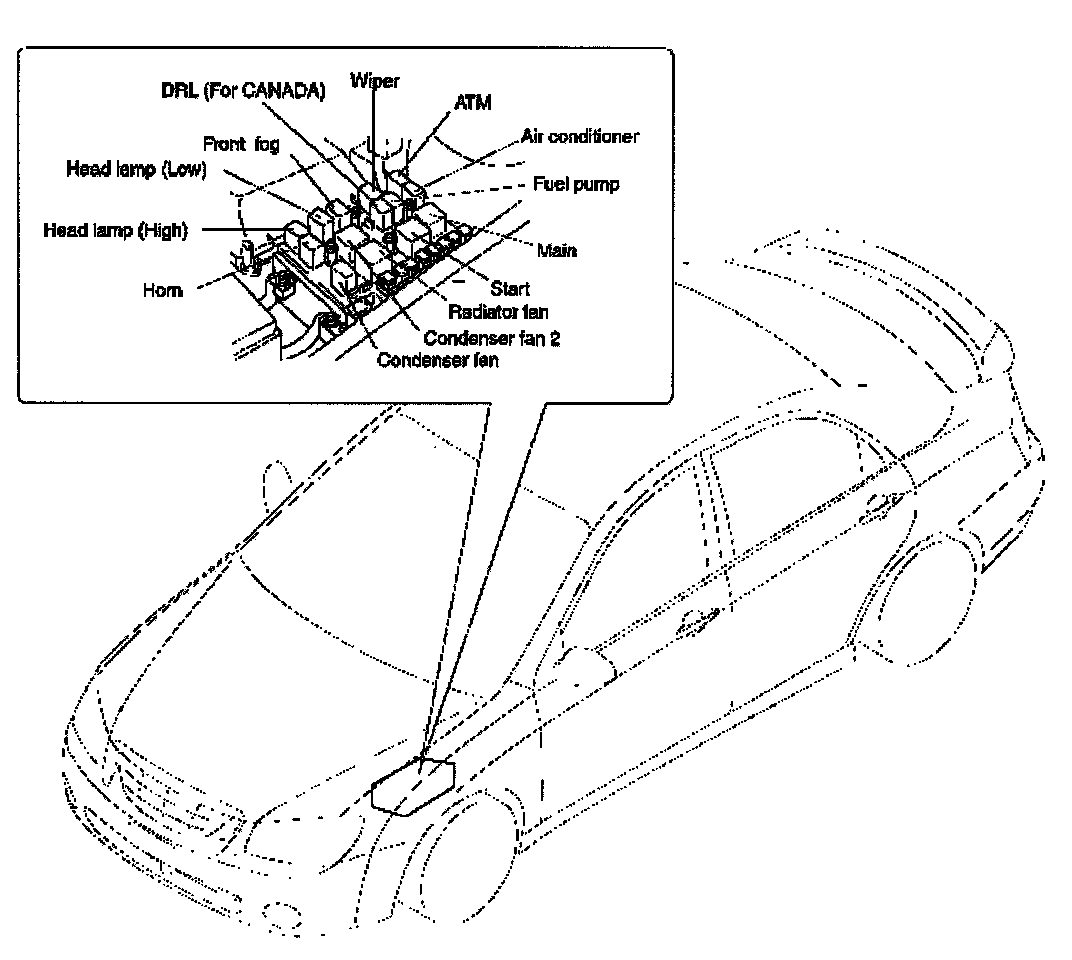

Relay Box (Engine) Components - Location:

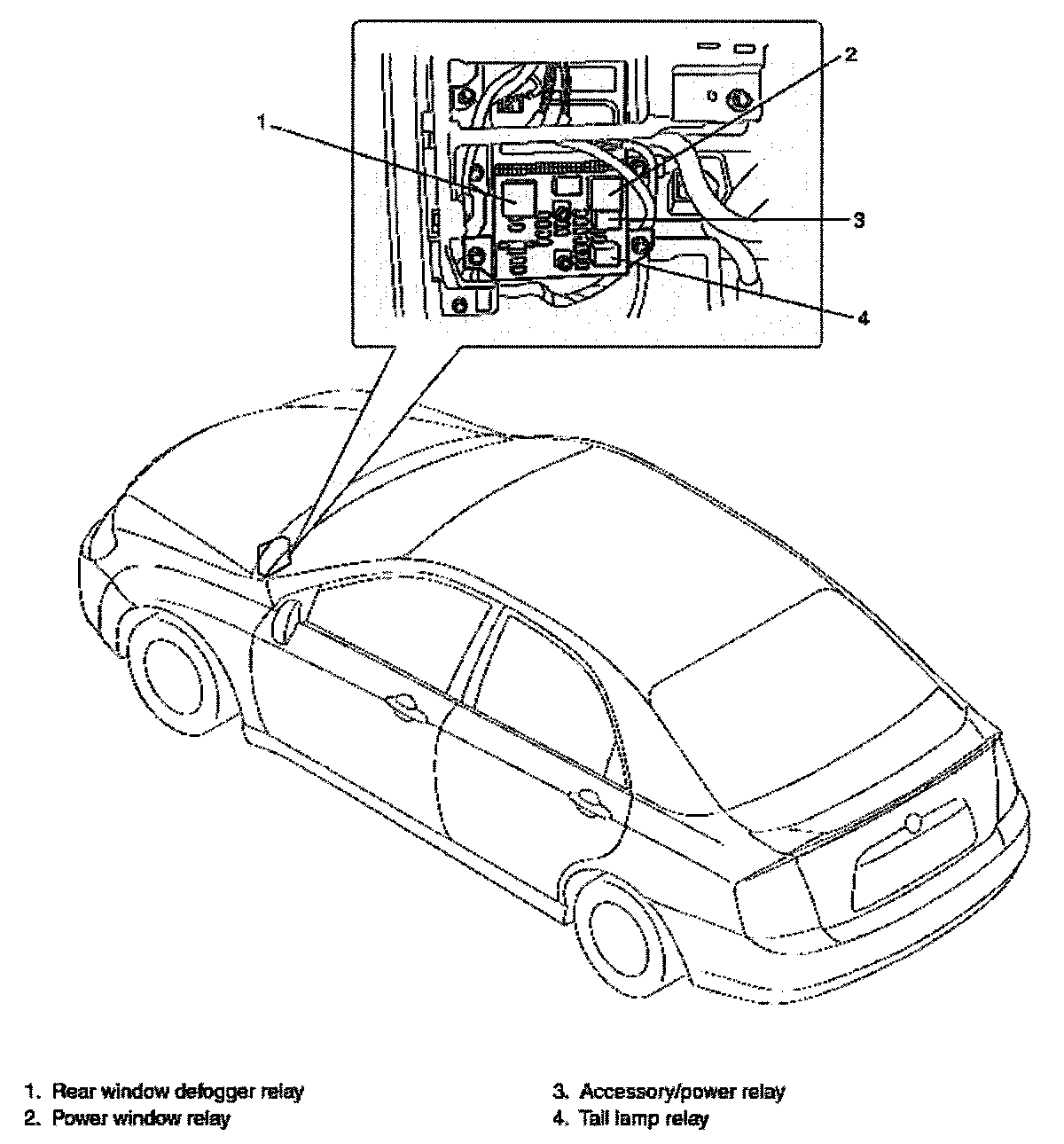

Relay Box (Passenger) Component - Location:
