Pinout Values and Diagnostic Parameters

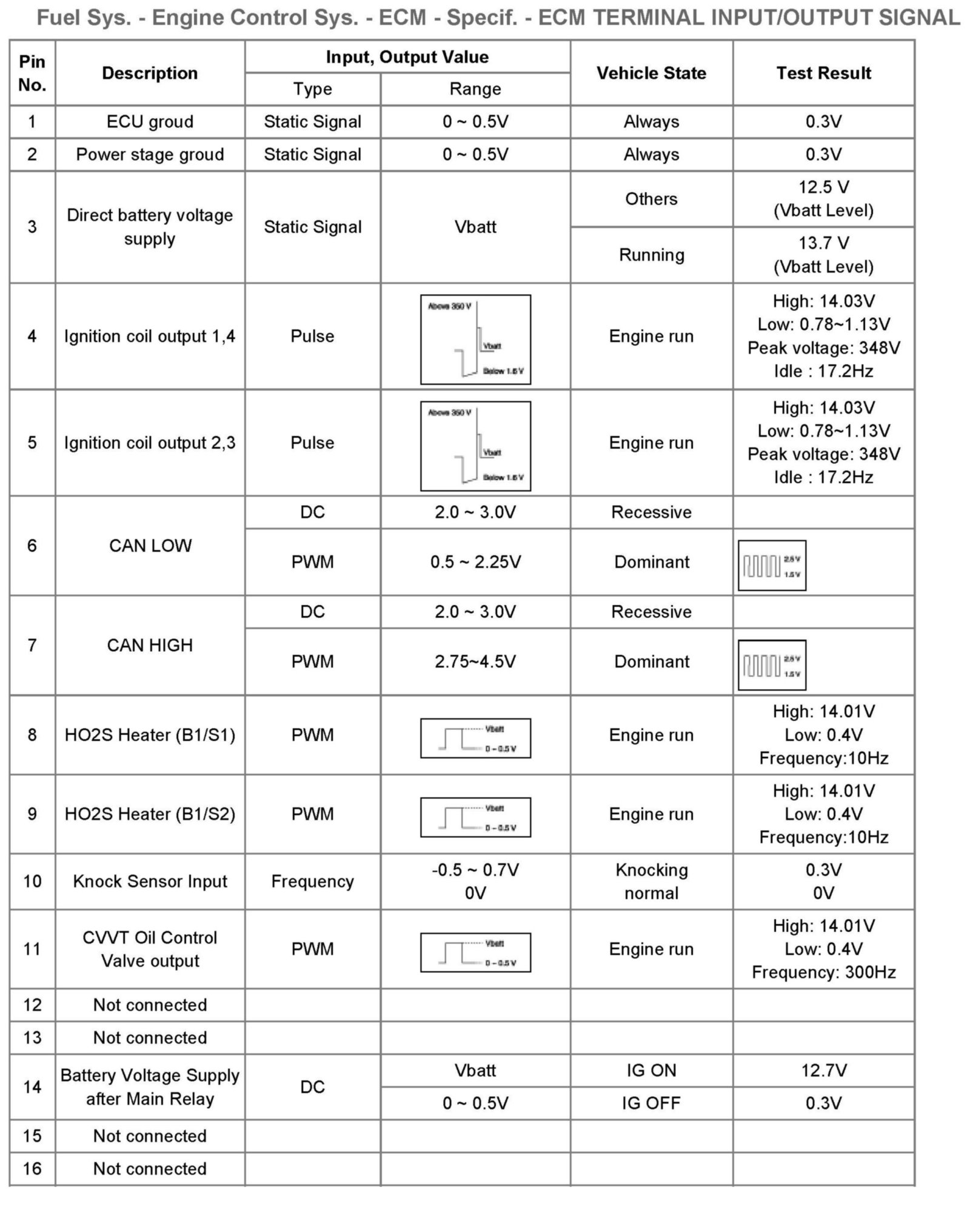

ECM Terminal Input/Output Signal Part 1:

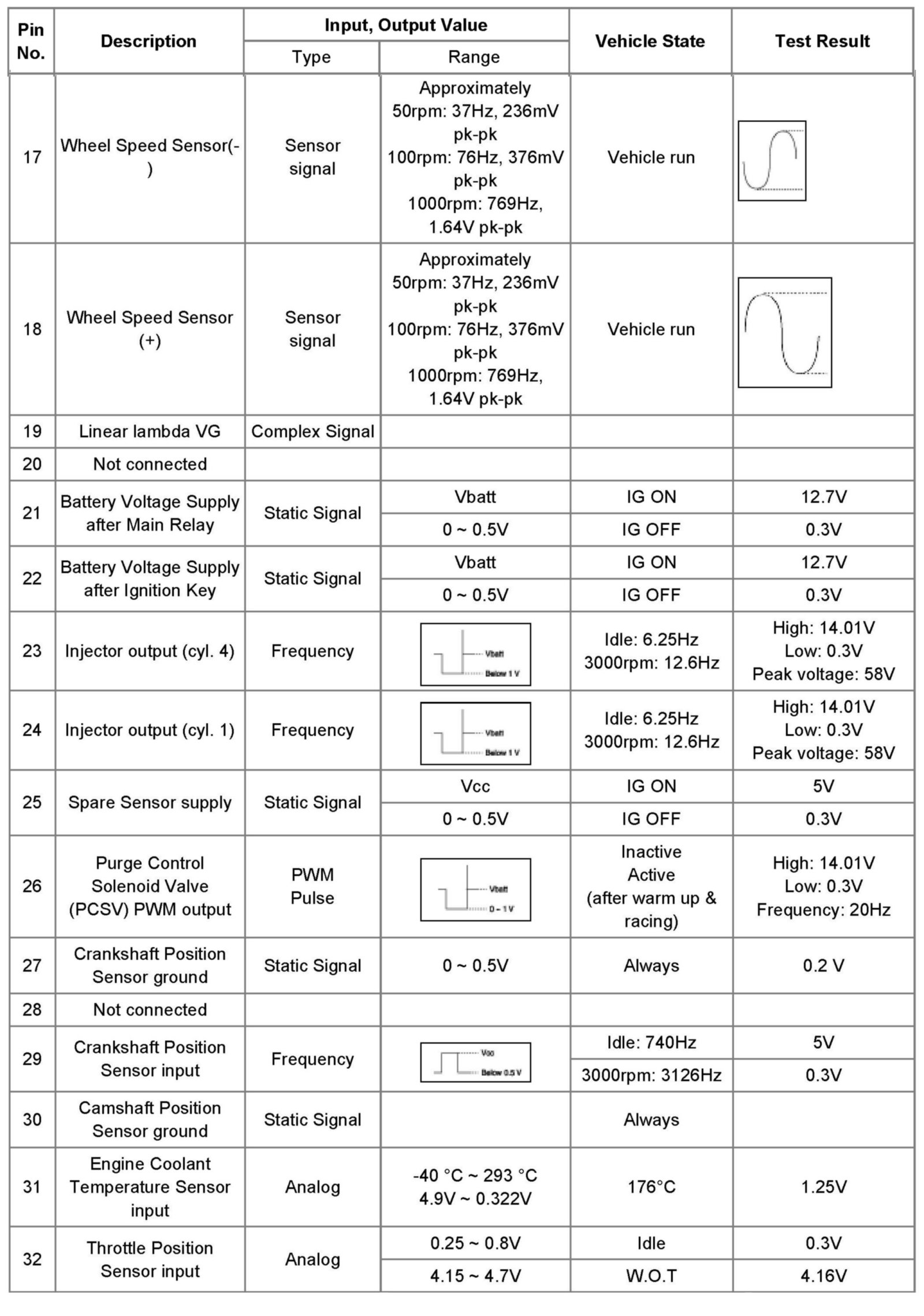

ECM Terminal Input/Output Signal Part 2:

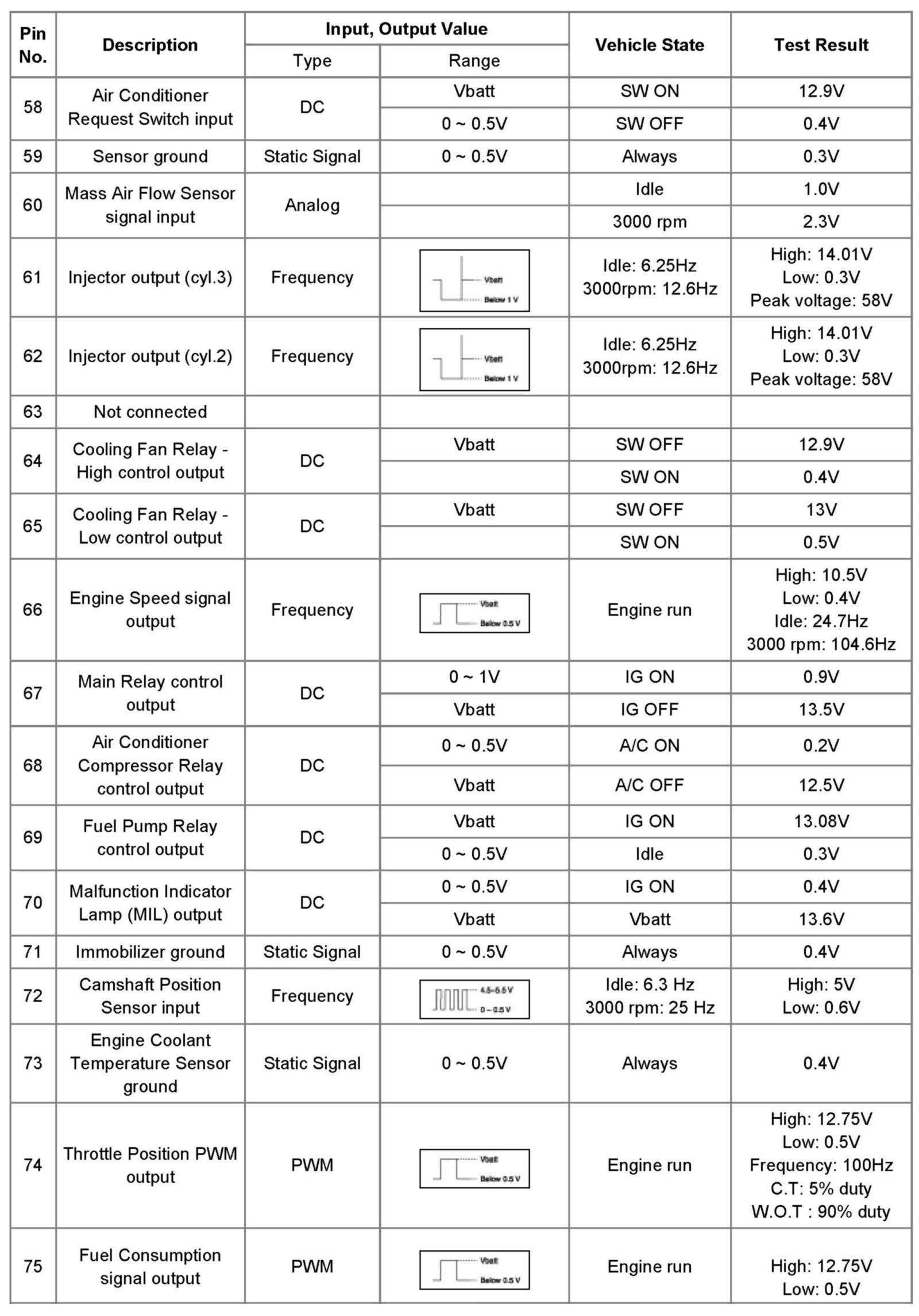

ECM Terminal Input/Output Signal Part 3:

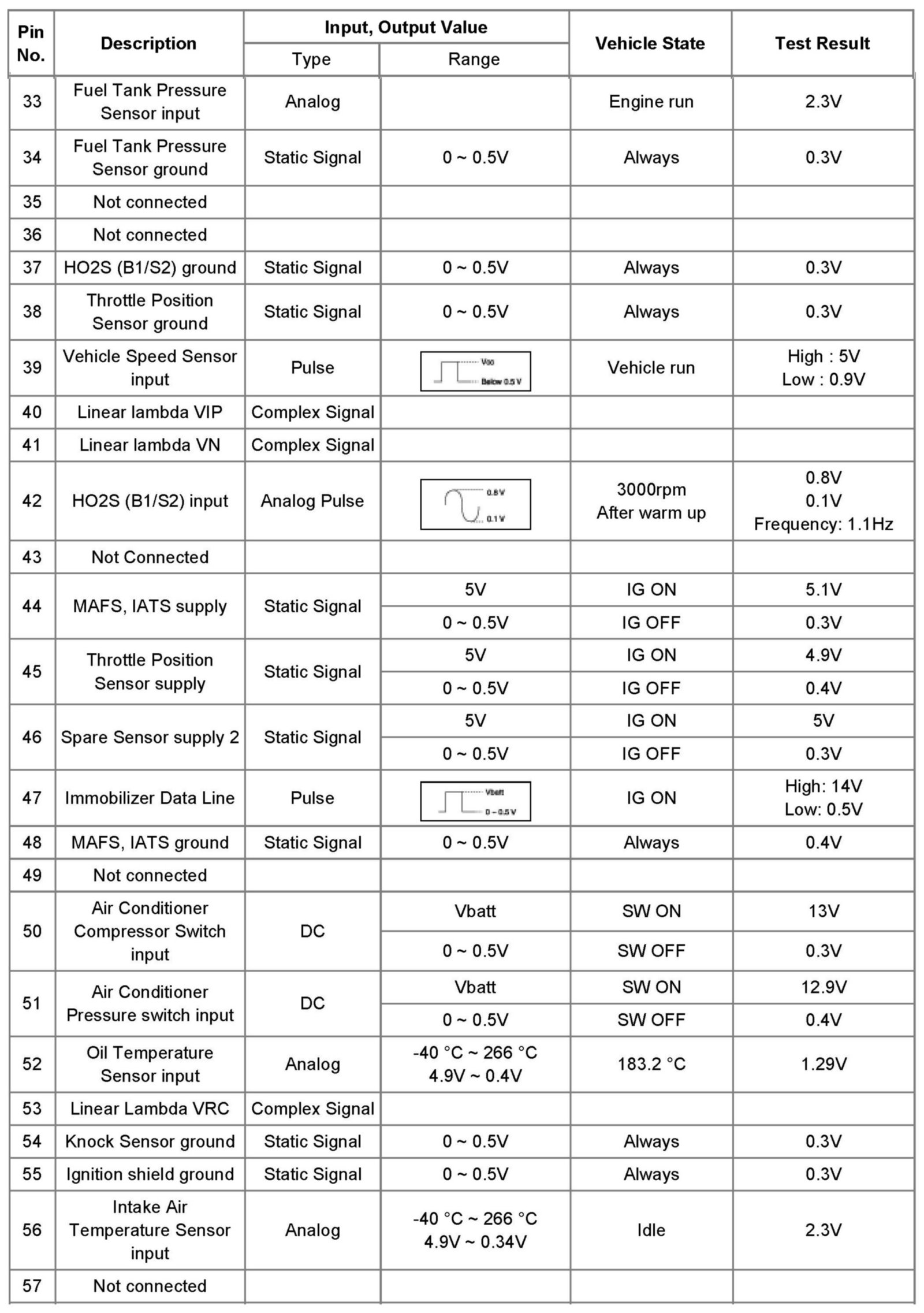

ECM Terminal Input/Output Signal Part 4:

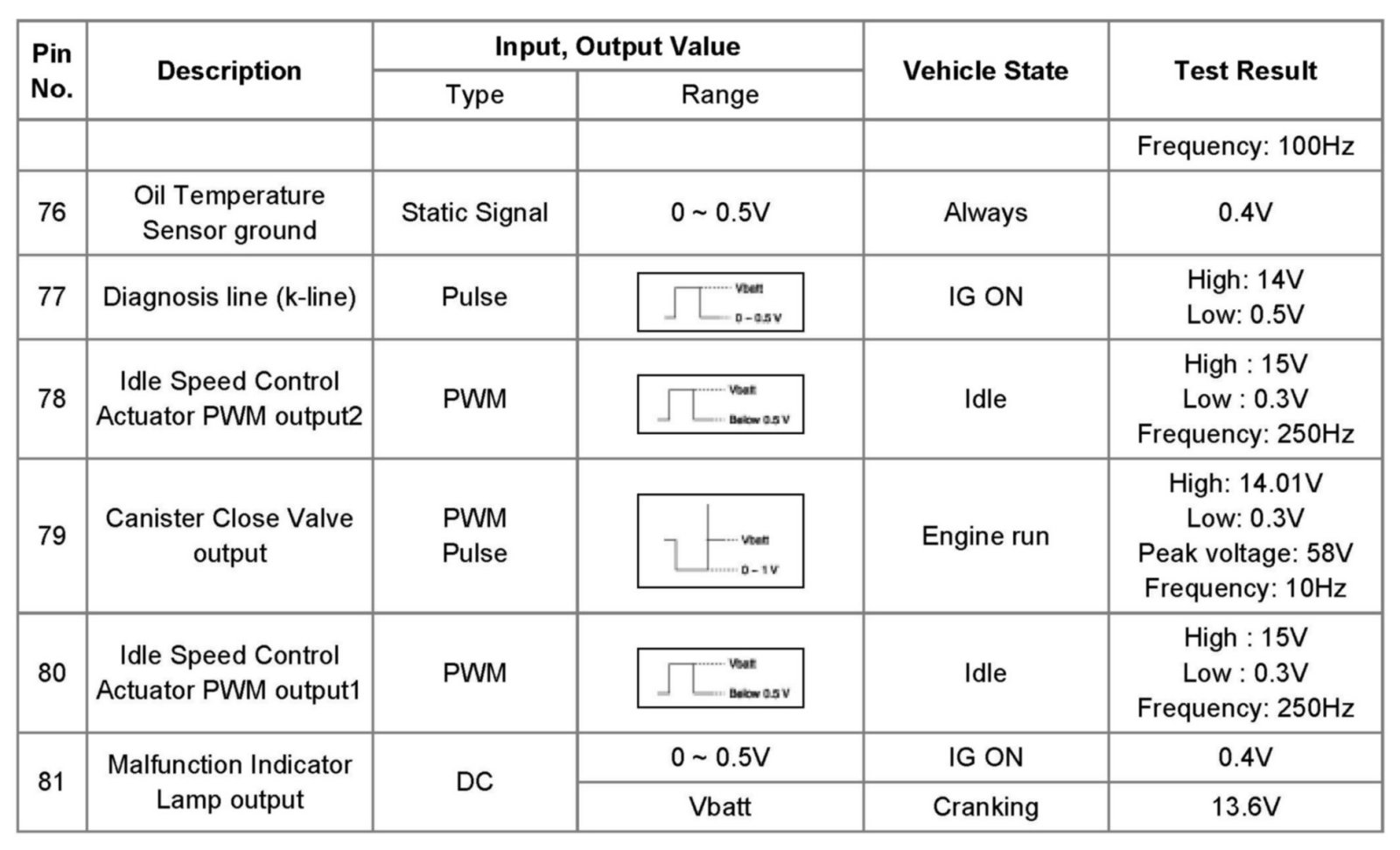

ECM Terminal Input/Output Signal Part 5:




ECM Terminal Input/Output Signal
